FIREROL Thin Wall Single Core Unsheathed Cables 250 V
NF F 63-808 (FRF-TW-025SU)

Application :

  • These cables are used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor, suitable for use in cable harnesses, switchboards and control panels, driver desks etc.

Construction :

  • Conductors Stranded tinned copper wires.
    Insulation Radiation crosslinkable LSZH compound.

Standards :

  • NF F 63-808
    NF F 16-101
    BS 6853
    DIN 5510

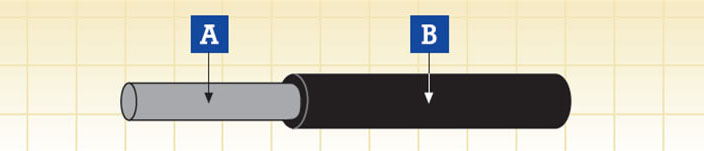

    A. Conductor                 B. Insulation

Electrical & Mechanical Properties :

  • Nominal Voltage 250V
    Maximum Conductor Temperature 105°C/125°C
    Temperature Range -40°C~+105°C
    Bending Radius 5 × Overall Diameter

Fire Performance in general :

  • EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
    EN 50266-2-4 + EN 50305; IEC 60332-3-24;
    NF C 32-070 2.2 (C1); VDE 0472 Teil 804    		 Vertical flame spread of vertically mounted bunched wires or cables
    EN 50268-2; IEC 61034-2; NF C 32-073 ;
    NF C 20-902; NF F 16 101; VDE 0472 Teil 816    		 Low Smoke Emission
    EN 50267-2-1; IEC 60754-1; NF C 32-074;
    NF C 20-454; VDE 0472 Teil 815    		 Halogen Free

    EN 50267-2-2/3; IEC 60754-2; NF C 32-074;

    NF C 20-453; VDE 0472 Teil 813

    		 Low Corrosivity (Acidity & Conductivity)
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853
    		Low Toxicity
    NF F 63 808; BS6853; NF F 16 101 Smoke index

FRF-TW-025SU 250V :

  • Nominal Cross
    Sectional Area    		 Number & Nominal
    Diameter of Strands    		 Overall Diameter Weight
    Min. Max.
    mm2 No/mm mm mm kg/km
    0.38 19/0.16 1.15 1.35 4.7
    0.60 19/0.20 1.30 1.55 6.5
    0.93 19/0.25 1.55 1.80 9.9
    1.34 19/0.30 1.80 2.00 14.0
    1.82 37/0.25 2.10 2.40 18.4
    2.61 37/0.30 2.50 2.80 27.8
    4.32 61/0.30 3.00 3.30 44.2


Impact Resistant
Highly Flexible
UV Resistant
 Ozone Resistant
Abrasion Retardant
Cold- resistant


Resistance To
Soldering Heat
Acid&Alkaline
Resistant
IRM 903
Fuel Oil Resistant
IRM 902
Mineral Oil Resistant
Fire Retardant
NF C32-070-2.2(C2)
IEC60332-3-24/EN50266-2-4
Flame Retardant
NF C32-070-2.1(C1)
IEC60332-1-2/EN50265-2-1


Low Toxicity
NF X70-100/NF F63 808
TM1-04/BS 6853
Low Corrosivity
IEC60754-2/EN50267-2-2/3
NF C32-074/VDE 0472-813
Low Smoke Emission
IEC 61034-2 / EN 50268-2
NF C32-073/VDE 0472-816
Zero Halogen
IEC 60754-1/EN 50267-2-1
NF C32-074//VDE 0472-815
