FIREROL High Temperature Single Core Screened & Sheathed Cables 1.8/3 kV or 3.6/6 kV
EN 50382-2 (FRL-HT-3S-OS, FRL-HT-6S-OS)



Construction :

  • Conductor Flexible tinned annealed copper wires(red copper only for 150° C core temperature)class 5 according to HD 383
    Insulation Silicon rubber according to EN 50382-1 (EI 112)
    Overal screen Tinned annealed copper wires
    Outer sheath LSZH elastomeric compound according to EN 50382-1 (EM 105, EM 106 or EM 107)

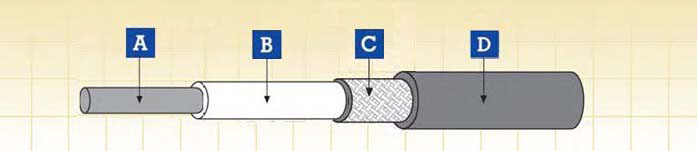

  • A. Conductor



    B. Insulation



    C. Screen



    D. Sheath

Electrical & Mechanical Properties :

  • Nominal Voltage 1.8/3 kV or 3.6/6 kV
    Maximum Conductor Temperature 90°C (fixed installation)
    Minimum Permissible Ambient Temperature -25°C/-40°C (fixed installation)
    Bending Radius 3 x Overall Diameter (D<12mm); 4 x Overall Diameter (D>12mm)

Chemical & Environmental Properties :

  • EN 60684-2 No fluorine
    EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali
    EN 50305 Resistance to ozone

Fire Performance for rolling stock application :

  • EN 50306-2 Hazard levels HL1, HL2/HL3, HL4
    DIN 5510-2 Protection level 1/2/3/4
    BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
    NF F 16-101 F0

Fire Performance for rolling stock application :

  • EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
    EN 50266-2-4 + EN 50305; IEC 60332-3-24;
    NF C 32-070 2.2 (C1); VDE 0472 Teil 804
    Vertical flame spread of vertically mounted bunched wires or cables
    EN 50268-2; IEC 61034-2; NF C 32-073 ;
    NF C 20-902; NF F 16 101; VDE 0472 Teil 816
    Low Smoke Emission
    EN 50267-2-1; IEC 60754-1; NF C 32-074;
    NF C 20-454; VDE 0472 Teil 815
    Halogen Free

    EN 50267-2-2/3; IEC 60754-2; NF C 32-074;

    NF C 20-453; VDE 0472 Teil 813

    Low Corrosivity (Acidity & Conductivity)
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853
    Low Toxicity
    NF F 63 808; BS6853; NF F 16 101 Smoke index

FRL-HT-3S-OS 1.8/3 kV :

  • Nominal
    Cross-
    Sectional
    Area
    Conductor
    Diameter
    (a)
    Min. Mean
    Thickness
    of Insulation
    Min.
    Screen
    Wire
    Diameter
    Min.
    Average
    Sheath
    Thickness
    Overall Diameter Weight Conductor Resistance Insulation Resistance
    min max Tinned Conductor Plain Conductor
    20°C 20°C 20°C 150°C
    mm2 n x mm mm mm mm mm mm kg/km MΩ x km MΩ x km MΩ x km MΩ x km
    1.5 1.5 1.3 1.4 0.16 6.8 7.9 113 13.7 13.3 670 1.30
    2.5 1.95 1.3 1.4 0.16 7.2 8.4 134 8.21 7.98 570 1.10
    4 2.5 1.3 1.4 0.21 7.7 9.0 171 5.09 4.95 480 0.90
    6 3.0 1.3 1.4 0.21 8.2 9.6 205 3.39 3.30 420 0.80
    10 3.9 1.5 1.4 0.21 9.4 11.0 283 1.95 1.91 380 0.70
    16 5.0 1.5 1.4 0.26 10.5 12.2 381 1.24 1.21 310 0.60
    25 6.4 1.8 1.4 0.26 12.3 14.4 539 0.795 0.780 300 0.60
    35 7.7 1.8 1.4 0.31 13.6 15.9 682 0.565 0.554 250 0.50
    50 9.2 1.8 1.4 0.31 15.0 17.5 882 0.393 0.386 220 0.40
    70 11.0 1.8 1.5 0.31 16.8 19.7 1174 0.277 0.272 200 0.40
    95 12.5 2.2 1.5 0.31 19.0 22.2 1483 0.210 0.206 190 0.40
    120 14.2 2.2 1.6 0.31 20.8 24.3 1819 0.164 0.161 180 0.30
    150 15.8 2.2 1.6 0.31 22.3 26.1 2188 0.132 0.129 160 0.30
    185 17.5 2.4 1.7 0.31 24.5 28.6 2606 0.108 0.106 160 0.30
    240 20.1 2.4 1.8 0.31 27.1 31.7 3318 0.0817 0.0801 140 0.20
    300 22.5 2.4 1.9 0.31 29.5 34.6 4015 0.0654 0.0641 120 0.20
    400 25.8 2.6 2.0 0.31 33.2 38.9 5170 0.0495 0.0486 120 0.20

FRL-HT-6S-OS 3.6/6 kV :

  • Nominal
    Cross-
    Sectional
    Area
    Conductor
    Diameter
    (a)
    Min. Mean
    Thickness
    of Insulation
    Min.
    Screen
    Wire
    Diameter
    Min.
    Average
    Sheath
    Thickness
    Overall Diameter Weight Conductor Resistance Insulation Resistance
    min max Tinned Conductor Plain Conductor
    20°C 20°C 20°C 150°C
    mm2 n x mm mm mm mm mm mm kg/km MΩ x km MΩ x km MΩ x km MΩ x km
    2.5 1.95 2.6 1.4 0.16 9.9 11.6 209 8.21 7.98 870 1.70
    4 2.5 2.6 1.4 0.16 10.4 12.2 240 5.09 4.95 750 1.50
    6 3.0 2.6 1.4 0.21 10.9 12.8 291 3.39 3.30 670 1.30
    10 3.9 2.6 1.4 0.21 11.8 13.8 363 1.95 1.91 570 1.10
    16 5.0 2.6 1.4 0.21 12.8 15.0 453 1.24 1.21 480 0.90
    25 6.4 2.9 1.4 0.26 14.7 17.2 640 0.795 0.780 430 0.80
    35 7.7 2.9 1.4 0.26 15.9 18.6 770 0.565 0.554 380 0.70
    50 9.2 2.9 1.5 0.31 17.5 20.5 1012 0.393 0.386 330 0.60
    70 11.0 2.9 1.5 0.31 19.2 22.4 1307 0.277 0.272 280 0.50
    95 12.5 2.9 1.6 0.31 20.8 24.3 1586 0.210 0.206 250 0.50
    120 14.2 2.9 1.6 0.31 22.4 26.2 1916 0.164 0.161 230 0.40
    150 15.8 2.9 1.7 0.31 24.1 28.2 2309 0.132 0.129 210 0.40
    185 17.5 3.2 1.8 0.31 26.4 30.9 2750 0.108 0.106 210 0.40
    240 20.1 3.4 1.9 0.31 29.4 34.4 3420 0.0817 0.0801 190 0.30
    300 22.5 3.4 1.9 0.31 31.7 37.1 4150 0.0654 0.0641 170 0.30
    400 25.8 3.4 2.0 0.31 35.0 40.9 5200 0.0495 0.0486 150 0.30
  • (a)= For information,indicative only



Impact Resistant
Highly Flexible
UV Resistant
Ozone Resistant
Abrasion Retardant
Cold- resistant



Resistance To
Soldering Heat
Acid&Alkaline
Resistant
IRM 903
Fuel Oil Resistant
IRM 902
Mineral Oil Resistant
Fire Retardant
NF C32-070-2.2(C2)
IEC60332-3-24/EN50266-2-4
Flame Retardant
NF C32-070-2.1(C1)
IEC60332-1-2/EN50265-2-1



Low Toxicity
NF X70-100/NF F63 808
TM1-04/BS 6853
Low Corrosivity
IEC60754-2/EN50267-2-2/3
NF C32-074/VDE 0472-813
Low Smoke Emission
IEC 61034-2 / EN 50268-2
NF C32-073/VDE 0472-816
Zero Halogen
IEC 60754-1/EN 50267-2-1
NF C32-074//VDE 0472-815
