Construction :

• Conductor	Flexible tinned annealed copper wires (red copper only for 150° C core temperature) class 5 according to HD 383
  Insulation	Silicon rubber according to EN 50382-1 (EI 111)

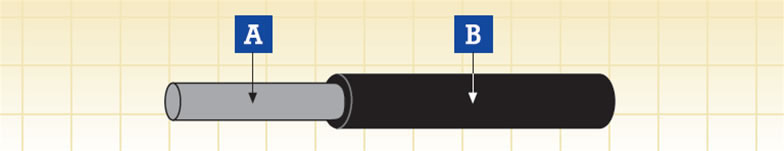

• A. Conductor     B. Insulation

Electrical & Mechanical Properties :

• Nominal Voltage	1.8/3 kV or 3.6/6 kV
  Maximum Conductor Temperature	120°C /150°C (fixed installation)
  Minimum Permissible Ambient Temperature	-25/-40°C (fixed installation)
  Bending Radius	3 x Overall Diameter (D<12mm); 4 x Overall Diameter (D>12mm)

Chemical & Environmental Properties :

• EN 60684-2	No fluorine
  EN 50305; EN 60811-2-1	Resistance to mineral oil & fuel oil, acid & alkali
  EN 50305	Resistance to ozone

Fire Performance for rolling stock application :

• EN 50306-2	Hazard levels HL1, HL2/HL3, HL4
  DIN 5510-2	Protection level 1/2/3/4
  BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
  NF F 16-101	F0

Fire Performance for rolling stock application :

• EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
  EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
  EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
  EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
  EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
  EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
  NF F 63 808; BS6853; NF F 16 101	Smoke index

FRL-HT-3SU 1.8/3 kV :

• Nominal Cross- Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	Overall Diameter		Weight	Conductor Resistance		Insulation Resistance
  			min	max		Tinned Conductor	Plain Conductor
  						20°C	20°C	20°C	150°C
  mm2	n X mm	mm	mm	mm	kg/km	MΩ x km	MΩ x km	MΩ x km	MΩ x km
  1.5	1.5	2.5	6.3	7.3	50	13.7	13.3	970	1.90
  2.5	1.95	2.5	6.7	7.8	70	8.21	7.98	840	1.60
  4	2.5	2.5	7.2	8.4	80	5.09	4.95	720	1.40
  6	3.0	2.5	7.7	9.0	100	3.39	3.30	650	1.30
  10	3.9	2.5	8.5	10.0	160	1.95	1.91	540	1.00
  16	5.0	2.5	9.6	11.2	210	1.24	1.21	460	0.90
  25	6.4	2.5	10.9	12.7	290	0.795	0.780	380	0.70
  35	7.7	2.5	12.1	14.1	380	0.565	0.554	330	0.60
  50	9.2	2.5	13.5	15.8	520	0.393	0.386	290	0.50
  70	11.0	2.5	15.2	17.8	720	0.277	0.272	250	0.50
  95	12.5	2.7	17.0	19.9	930	0.210	0.206	230	0.40
  120	14.2	2.7	18.6	21.7	1140	0.164	0.161	210	0.40
  150	15.8	2.7	20.1	23.5	1430	0.132	0.129	190	0.30
  185	17.5	2.7	21.7	25.4	1720	0.108	0.106	170	0.30
  240	20.1	2.7	24.1	28.2	2270	0.0817	0.0801	150	0.30
  300	22.5	2.7	26.4	30.9	2750	0.0654	0.0641	140	0.20
  400	25.8	2.9	29.9	34.9	3730	0.0495	0.0486	130	0.20

FRL-HT-6SU 3.6/6 kV :

• Nominal Cross- Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	Overall Diameter		Weight	Conductor Resistance		Insulation Resistance
  			min	max		Tinned Conductor	Plain Conductor
  						20°C	20°C	20°C	150°C
  mm2	n X mm	mm	mm	mm	kg/km	MΩ x km	MΩ x km	MΩ x km	MΩ x km
  2.5	1.95	3.0	7.6	8.9	80	8.21	7.98	920	1.80
  4	2.5	3.0	8.1	9.5	100	5.09	4.95	800	1.60
  6	3.0	3.0	9.0	10.6	120	3.39	3.30	750	1.50
  10	3.9	3.0	9.5	11.1	180	1.95	1.91	610	1.20
  16	5.0	3.0	10.5	12.3	230	1.24	1.21	520	1.00
  25	6.4	3.0	11.8	13.8	310	0.795	0.780	430	0.80
  35	7.7	3.0	13.0	15.2	410	0.565	0.554	380	0.70
  50	9.2	3.0	14.4	16.9	550	0.393	0.386	330	0.60
  70	11.0	3.0	16.1	18.9	740	0.277	0.272	280	0.50
  95	12.5	3.0	17.5	20.5	940	0.210	0.206	260	0.50
  120	14.2	3.1	19.3	22.6	1170	0.164	0.161	240	0.40
  150	15.8	3.1	20.8	24.4	1460	0.132	0.129	220	0.40
  185	17.5	3.2	22.6	26.5	1760	0.108	0.106	200	0.40
  240	20.1	3.4	25.4	29.8	2340	0.0817	0.0801	190	0.30
  300	22.5	3.4	27.7	32.4	2820	0.0654	0.0641	170	0.30
  400	25.8	3.4	30.8	36.0	3780	0.0495	0.0486	150	0.30

• (a)= For information,indicative only



Impact Resistant	Highly Flexible	UV Resistant	Ozone Resistant	Abrasion Retardant	Cold- resistant



Resistance To Soldering Heat	Acid&Alkaline Resistant	IRM 903 Fuel Oil Resistant	IRM 902 Mineral Oil Resistant	Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4	Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1



Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853	Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813	Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816	Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815
