FIREROL Standard Wall Multi Core Overall Screened Cables 300/500 V or 0.6/1 kV
EN 50264-2-2 (FRL-SW-05M-OS, FRL-SW-1M-OS)

Application :

  • -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
  • -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Construction :

  • Conductor Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5
    Insulation LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 105)
    Overal screen Tinned annealed copper wires
    Outer sheath LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104)

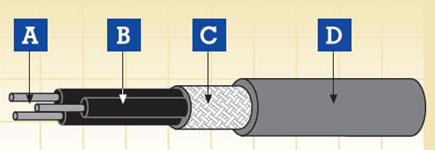

  • A. Conductor



    B. Insulation



    C. Screen



    D. Sheath

Electrical & Mechanical Properties :

  • Nominal Voltage 300/500 V or 0.6/1 kV
    Maximum Conductor Temperature 90°C ( fixed installation )
    Minimum Permissible Ambient Temperature -25°C/-40°C ( fixed installation )
    Bending Radius 10 x Overall Diameter

Chemical & Environmental Properties :

  • EN 60684-2 No fluorine
    EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali
    EN 50305 Resistance to ozone

Fire Performance for rolling stock application :

  • EN 50306-2 Hazard levels HL1, HL2/HL3, HL4
    DIN 5510-2 Protection level 1/2/3/4
    BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
    NF F 16-101 F0

Fire Performance for rolling stock application :

  • EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
    EN 50266-2-4 + EN 50305; IEC 60332-3-24;
    NF C 32-070 2.2 (C1); VDE 0472 Teil 804
    Vertical flame spread of vertically mounted bunched wires or cables
    EN 50268-2; IEC 61034-2; NF C 32-073 ;
    NF C 20-902; NF F 16 101; VDE 0472 Teil 816
    Low Smoke Emission
    EN 50267-2-1; IEC 60754-1; NF C 32-074;
    NF C 20-454; VDE 0472 Teil 815
    Halogen Free

    EN 50267-2-2/3; IEC 60754-2; NF C 32-074;

    NF C 20-453; VDE 0472 Teil 813

    Low Corrosivity (Acidity & Conductivity)
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853
    Low Toxicity
    NF F 63 808; BS6853; NF F 16 101 Smoke index

FRL-SW-05M-OS 300/500 V :

  • Number And Nominal Cross-Sectional Area(a) Conductor
    Diameter
    (b)
    Min. Mean
    Thickness
    of
    Insulation
    Diameter of Core(b) Min Wire
    Diameter
    of Screen
    Min. Mean
    Thickness
    of Sheath
    Overall
    Diameter
    Weight Maximum
    Conductor
    Resistance
    Insulation Resistance
    EI 105 EI 101-
    EI 104
    Min Max Min Max 20℃ 20℃ 20℃
    n x mm2 mm mm mm mm mm mm mm mm kg/km Ω/km MΩ x km MΩ x km
    2x1 1.25 0.6 2.4 2.8 0.16 1.4 8.1 9.5 110 20.0 140 70
    4x1 0.6 2.4 2.8 0.16 1.4 9.0 10.6 150 20.0 140 70
    7x1 0.6 2.4 2.8 0.16 1.4 10.4 12.2 210 20.0 140 70
    9x1 0.6 2.4 2.8 0.21 1.4 12.5 14.6 290 20.0 140 70
    12x1 0.6 2.4 2.8 0.21 1.4 13.3 15.6 330 20.0 140 70
    19x1 0.6 2.4 2.8 0.26 1.5 15.7 18.4 490 20.0 140 70
    24x1 0.6 2.4 2.8 0.26 1.6 18.1 21.2 630 20.0 140 70
    32x1 0.6 2.4 2.8 0.26 1.6 19.7 23.1 760 20.0 140 70
    37x1 0.6 2.4 2.8 0.26 1.7 20.7 24.2 840 20.0 140 70
    40x1 0.6 2.4 2.8 0.26 1.7 21.4 25.1 910 20.0 140 70
    4x1.5 1.5 0.7 2.8 3.3 0.16 1.4 10.1 11.8 200 13.7 120 60
    7x1.5 0.7 2.8 3.3 0.21 1.4 11.9 14.0 290 13.7 120 60
    9x1.5 0.7 2.8 3.3 0.21 1.4 14.1 16.5 380 13.7 120 60
    12x1.5 0.7 2.8 3.3 0.21 1.5 15.8 18.5 450 13.7 120 60
    19x1.5 0.7 2.8 3.3 0.26 1.5 17.8 20.8 660 13.7 120 60
    24x1.5 0.7 2.8 3.3 0.26 1.6 20.7 24.2 850 13.7 120 60
    32x1.5 0.7 2.8 3.3 0.26 1.7 22.7 26.6 1050 13.7 120 60
    37x1.5 0.7 2.8 3.3 0.26 1.7 23.6 27.6 1160 13.7 120 60
    4x2.5 1.95 0.8 3.4 4.0 0.21 1.4 11.8 13.9 280 8.21 90 45
    7x2.5 0.8 3.4 4.0 0.21 1.4 13.7 16.1 400 8.21 90 45
    9x2.5 0.8 3.4 4.0 0.26 1.5 16.8 19.7 560 8.21 90 45
    12x2.5 0.8 3.4 4.0 0.26 1.5 18.0 21.1 660 8.21 90 45
    19x2.5 0.8 3.4 4.0 0.26 1.6 21.1 24.6 950 8.21 90 45
    24x2.5 0.8 3.4 4.0 0.26 1.8 24.7 28.9 1260 8.21 90 45
  • (a)= One earth conductor (green/yellow) can be included upon request
    (b) = For information,indicative only

FRL-SW-1M-OS 0.6/1 kV :

  • Number And Nominal Cross-Sectional Area(a) Conductor
    Diameter
    (b)
    Min. Mean
    Thickness
    of
    Insulation
    Diameter of Core(b) Min Wire
    Diameter
    of Screen
    Min. Average Sheath Thickness Overall
    Diameter
    Weight Maximum
    Conductor
    Resistance
    Insulation Resistance
    EI 105 EI 101-
    EI 104
    Min Max Min Max 20℃ 20℃ 20℃
    mm2 mm mm mm mm mm mm mm mm kg/km Ω/km MΩ x km MΩ x km
    TWO CORES
    1.5 1.5 0.8 3.0 3.5 0.16 1.4 9.3 10.9 150 13.7 150 75
    2.5 1.95 0.8 3.4 3.9 0.16 1.4 10.2 11.9 180 8.21 130 65
    4 2.5 0.8 3.9 4.6 0.21 1.4 11.5 13.4 240 5.09 110 55
    6 3.0 0.9 4.6 5.4 0.21 1.4 12.9 15.1 300 3.39 90 45
    10 3.9 1.1 5.8 6.8 0.21 1.5 15.5 18.2 460 1.95 85 45
    16 5.0 1.1 7.2 8.5 0.26 1.5 17.9 20.9 610 1.24 70 35
    25 6.4 1.3 8.6 10.0 0.26 1.7 21.6 25.3 830 0.795 65 35
    35 7.7 1.3 10.2 11.5 0.31 1.8 24.4 28.6 1130 0.565 60 30
    50 9.2 1.5 11.6 13.5 0.31 1.9 28.2 33.0 1500 0.393 55 30
    THREE CORES
    1.5 1.5 0.8 3.0 3.5 0.16 1.4 9.8 11.4 180 13.7 150 75
    2.5 1.95 0.8 3.4 3.9 0.16 1.4 10.7 12.5 220 8.21 130 65
    4 2.5 0.8 3.9 4.6 0.21 1.4 12.0 14.1 300 5.09 110 55
    6 3.0 0.9 4.6 5.4 0.21 1.4 13.6 16.0 380 3.39 90 45
    10 3.9 1.1 5.8 6.8 0.26 1.5 16.7 19.6 620 1.95 85 45
    16 5.0 1.1 7.2 8.5 0.26 1.6 19.1 22.3 800 1.24 70 35
    25 6.4 1.3 8.6 10.0 0.26 1.7 22.9 26.8 1140 0.795 65 35
    35 7.7 1.3 10.2 11.5 0.31 1.8 26.0 30.5 1500 0.565 60 30
    50 9.2 1.5 11.6 13.5 0.31 2.0 30.3 35.4 2050 0.393 55 30
    FOUR CORES
    1.5 1.5 0.8 3.0 3.5 0.16 1.4 10.5 12.3 210 13.7 150 75
    2.5 1.95 0.8 3.4 3.9 0.21 1.4 11.8 13.9 280 8.21 130 65
    4 2.5 0.8 3.9 4.6 0.21 1.4 13.1 15.3 360 5.09 110 55
    6 3.0 0.9 4.6 5.4 0.21 1.4 14.9 17.4 470 3.39 90 45
    10 3.9 1.1 5.8 6.8 0.26 1.6 18.4 21.6 780 1.95 85 45
    16 5.0 1.1 7.2 8.5 0.26 1.7 21.1 24.6 1020 1.24 70 35
    25 6.4 1.3 8.6 10.0 0.31 1.8 25.6 29.9 1490 0.795 65 35
    3X35+25 7.7/6.4 1.3/1.3 10.2/8.6 11.5/10.0 0.31 1.9 30.0 35.1 1820 0.565/0.795 60 30
    3X50+25 9.2/6.4 1.5/1.3 11.6/8.6 13.5/10.0 0.31 2.1 34.9 40.8 2480 0.393/0.795 55 30
  • (a)= For information,indicative only
Impact Resistant
Highly Flexible
UV Resistant
Ozone Resistant
Abrasion Retardant
Cold- resistant



Resistance To
Soldering Heat
Acid&Alkaline
Resistant
IRM 903
Fuel Oil Resistant
IRM 902
Mineral Oil Resistant
Fire Retardant
NF C32-070-2.2(C2)
IEC60332-3-24/EN50266-2-4
Flame Retardant
NF C32-070-2.1(C1)
IEC60332-1-2/EN50265-2-1



Low Toxicity
NF X70-100/NF F63 808
TM1-04/BS 6853
Low Corrosivity
IEC60754-2/EN50267-2-2/3
NF C32-074/VDE 0472-813
Low Smoke Emission
IEC 61034-2 / EN 50268-2
NF C32-073/VDE 0472-816
Zero Halogen
IEC 60754-1/EN 50267-2-1
NF C32-074//VDE 0472-815
