FIREROL Standard Wall Single Core Unsheathed Cables 0.6/1 kV or 1.8/3 kV
EN 50264-2-1 (FRL-SW-1SU, FRL-SW-3SU)

Application :

  • -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling andinstallation cost are an important factor.
  • -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Construction :

  • Conductor Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5
    Insulation LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 104)
  •

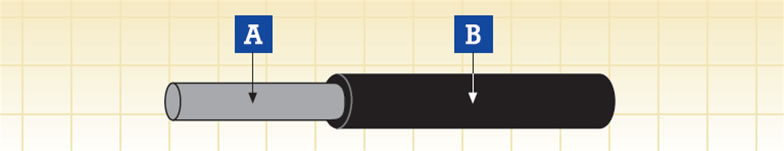

    A. Conductor



    B. Insulation

Electrical & Mechanical Properties :

  • Nominal Voltage 0.6/1 kV or 1.8/3 kV
    Maximum Conductor Temperature 90°C ( fixed installation )
    Minimum Permissible Ambient Temperature -25°C/-40°C ( fixed installation )
    Bending Radius 3 x Overall Diameter (D<12mm); 4 x Overall Diameter (D>12mm)

Chemical & Environmental Properties :

  • EN 60684-2 No fluorine
    EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali
    EN 50305 Resistance to ozone

Fire Performance for rolling stock application :

  • EN 50306-2 Hazard levels HL1, HL2/HL3, HL4
    DIN 5510-2 Protection level 1/2/3/4
    BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
    NF F 16-101 F0

Fire Performance for rolling stock application :

  • EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
    EN 50266-2-4 + EN 50305; IEC 60332-3-24;
    NF C 32-070 2.2 (C1); VDE 0472 Teil 804
    Vertical flame spread of vertically mounted bunched wires or cables
    EN 50268-2; IEC 61034-2; NF C 32-073 ;
    NF C 20-902; NF F 16 101; VDE 0472 Teil 816
    Low Smoke Emission
    EN 50267-2-1; IEC 60754-1; NF C 32-074;
    NF C 20-454; VDE 0472 Teil 815
    Halogen Free

    EN 50267-2-2/3; IEC 60754-2; NF C 32-074;

    NF C 20-453; VDE 0472 Teil 813

    Low Corrosivity (Acidity & Conductivity)
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853
    Low Toxicity
    NF F 63 808; BS6853; NF F 16 101 Smoke index

FRL-SW-1SU 0.6/1 kV :

  • Nominal
    Cross-Sectional
    Area
    Conductor
    Diameter
    (a)
    Min. Mean
    Thickness
    of Insulation
    Overall
    Diameter
    Weight Maximum
    Conductor
    Resistance
    Insulation Resistance
    min max 20℃ 20℃ 90℃
    mm2 mm mm mm mm kg/km Ω/km MΩ x km MΩ x km
    1.0 1.25 0.8 2.8 3.2 18 20 65 0.65
    1.5 1.5 0.8 3.0 3.5 20 13.7 55 0.55
    2.5 1.95 0.8 3.4 3.9 30 8.21 50 0.5
    4.0 2.5 0.8 3.9 4.6 50 5.09 40 0.4
    6.0 3.0 0.9 4.6 5.4 70 3.39 35 0.35
    10 3.9 1.1 5.8 6.8 130 1.95 30 0.3
    16 5.0 1.1 7.2 8.5 170 1.24 30 0.3
    25 6.4 1.3 8.6 10.0 260 0.795 30 0.3
    35 7.7 1.3 10.2 11.5 350 0.565 25 0.25
    50 9.2 1.5 11.6 13.5 500 0.393 25 0.25
    70 11.0 1.5 13.3 15.5 690 0.277 20 0.2
    95 12.5 1.6 14.9 17.4 910 0.210 20 0.2
    120 14.2 1.6 16.5 19.3 1120 0.164 20 0.2
    150 15.8 1.9 18.5 21.7 1430 0.132 15 0.15
    185 17.5 1.9 20.1 23.6 1720 0.108 15 0.15
    240 20.1 2.1 22.9 25.8 2290 0.0817 15 0.15
    300 22.5 2.2 25.4 29.7 2810 0.0654 10 0.1
    400 25.8 2.3 28.7 33.6 3690 0.0495 10 0.1

FRL-SW-3SU 1.8/3 kV :

  • Nominal
    Cross-Sectional
    Area
    Conductor
    Diameter
    (a)
    Min. Mean
    Thickness
    of Insulation
    Overall
    Diameter
    Weight Maximum
    Conductor
    Resistance
    Insulation Resistance
    min max 20℃ 20℃ 90℃
    mm2 mm mm mm mm kg/km Ω/km MΩ x km MΩ x km
    1.5 1.5 2.5 6.2 7.3 70 13.70 120 1.2
    2.5 1.95 2.5 6.6 7.8 90 8.21 100 1.0
    4.0 2.5 2.5 7.1 8.4 110 5.09 90 0.9
    6.0 3.0 2.5 7.6 8.9 130 3.39 80 0.8
    10 3.9 2.5 8.4 9.9 190 1.95 65 0.65
    16 5.0 2.5 9.5 11.1 250 1.24 55 0.55
    25 6.4 2.5 10.8 12.7 330 0.795 45 0.45
    35 7.7 2.5 12.0 14.1 430 0.565 40 0.4
    50 9.2 2.5 13.4 15.7 570 0.393 35 0.35
    70 11.0 2.5 15.1 17.7 760 0.277 30 0.3
    95 12.5 2.7 16.9 19.8 980 0.210 30 0.3
    120 14.2 2.7 18.5 21.7 1210 0.164 25 0.25
    150 15.8 2.7 20.0 23.4 1500 0.132 20 0.2
    185 17.5 2.7 21.6 25.3 1800 0.1080 20 0.2
    240 20.1 2.7 24.1 28.2 2360 0.0817 20 0.2
    300 22.5 2.7 26.3 30.8 2840 0.0654 15 0.15
    400 25.8 2.9 29.8 34.9 3800 0.0495 15 0.15
  • (a) = for information, indicative only
Impact Resistant
Highly Flexible
UV Resistant
Ozone Resistant
Abrasion Retardant
Cold- resistant



Resistance To
Soldering Heat
Acid&Alkaline
Resistant
IRM 903
Fuel Oil Resistant
IRM 902
Mineral Oil Resistant
Fire Retardant
NF C32-070-2.2(C2)
IEC60332-3-24/EN50266-2-4
Flame Retardant
NF C32-070-2.1(C1)
IEC60332-1-2/EN50265-2-1



Low Toxicity
NF X70-100/NF F63 808
TM1-04/BS 6853
Low Corrosivity
IEC60754-2/EN50267-2-2/3
NF C32-074/VDE 0472-813
Low Smoke Emission
IEC 61034-2 / EN 50268-2
NF C32-073/VDE 0472-816
Zero Halogen
IEC 60754-1/EN 50267-2-1
NF C32-074//VDE 0472-815
