FIREROL Thin Wall Multi-Core Overall Screened Cables with Exposed Standard Wall Sheath 300/500V
EN 50306-4 (FRL-TW-05M-ESW-OS)
![](../images/line.jpg)
Application :
- -Used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor.
- -Used in cable harnesses, switchboards and control panels, driver desks etc.
Construction :
-
Conductor Tinned annealed copper wires as defined in EN 50306-2 Insulation LSZH special compound Overal screen Tinned annealed copper wires Outer sheath LSZH special compound as defined in EN 50264-1 (S2. EM 101 - EM 104) -

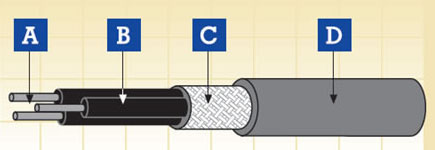

A. Conductor
B. Insulation
C. Screen
D. Sheath
Electrical & Mechanical Properties :
-
Nominal Voltage 300/500 V Maximum Conductor Temperature 90°C /105°C (fixed installation) Minimum Permissible Ambient Temperature -25/-40°C (fixed installation) Bending Radius 10 x Overall Diameter
Chemical & Environmental Properties :
-
EN 60684-2 No fluorine EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali EN 50305 Resistance to ozone
Fire Performance for rolling stock application :
-
EN 50306-2 Hazard levels HL1, HL2/HL3, HL4 DIN 5510-2 Protection level 1/2/3/4 BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II NF F 16-101 F0
Fire Performance for rolling stock application :
-
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804Vertical flame spread of vertically mounted bunched wires or cables EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816Low Smoke Emission EN 50267-2-1; IEC 60754-1; NF C 32-074;
NF C 20-454; VDE 0472 Teil 815Halogen Free EN 50267-2-2/3; IEC 60754-2; NF C 32-074;
NF C 20-453; VDE 0472 Teil 813
Low Corrosivity (Acidity & Conductivity) EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 Low Toxicity NF F 63 808; BS6853; NF F 16 101 Smoke index
FRL-TW-05M-ESW-OS 300/500 V :
-
Number of Cores and
Nominal Cross SectionMinimum Thickness of
Sheath at any PointOverall Diameter Weight min. max. n x mm2 mm mm mm kg/km 2 x 0.5 1.0 5.5 6.5 50 3 x 0.5 1.0 5.7 6.7 55 4 x 0.5 1.0 6.1 7.1 60 6 x 0.5 1.0 6.9 7.9 90 8 x 0.5 1.0 7.5 8.5 110 2 x 0.75 1.0 5.9 6.9 60 3 x 0.75 1.0 6.2 7.2 70 4 x 0.75 1.0 6.5 7.5 80 6 x 0.75 1.0 7.5 8.5 110 8 x 0.75 1.0 8.2 9.2 130 2 x 1.0 1.0 6.2 7.2 60 3 x 1.0 1.0 6.5 7.5 80 4 x 1.0 1.0 6.9 7.9 90 6 x 1.0 1.0 8.0 9.0 130 8 x 1.0 1.0 8.6 9.8 160 2 x 1.5 1.0 7.1 8.1 90 3 x 1.5 1.0 7.4 8.4 110 4 x 1.5 1.0 8.0 9.0 130 6 x 1.5 1.0 9.2 10.4 170 8 x 1.5 1.0 10.2 11.4 220 2 x 2.5 1.0 8.3 9.3 120 3 x 2.5 1.0 8.6 9.8 150 4 x 2.5 1.0 9.4 10.6 180
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
