FIREROL Thin Wall Multi-Core Cables with Exposed Standard Wall Sheath 300/500 V
EN 50306-4 (FRL-TW-05M-ESW)

Application :

  • -Used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor.
  • -Used in cable harnesses, switchboards and control panels, driver desks etc.

Construction :

  • Conductor Tinned annealed copper wires as defined in EN 50306-2
    Insulation LSZH special compound
    Outer sheath LSZH special compound (S2. EM101-EM104)
  •

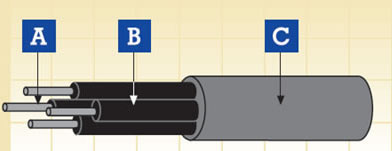

    A. Conductor



    B. Insulation



    C. Sheath

Electrical & Mechanical Properties :

  • Nominal Voltage 300/500 V
    Maximum Conductor Temperature 120°C /150°C (fixed installation)
    Minimum Permissible Ambient Temperature -25/-40°C (fixed installation)
    Bending Radius 3 x Overall Diameter (D<12mm); 4 x Overall Diameter (D>12mm)

Chemical & Environmental Properties :

  • EN 60684-2 No fluorine
    EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali
    EN 50305 Resistance to ozone

Fire Performance for rolling stock application :

  • EN 50306-2 Hazard levels HL1, HL2/HL3, HL4
    DIN 5510-2 Protection level 1/2/3/4
    BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
    NF F 16-101 F0

Fire Performance for rolling stock application :

  • EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
    EN 50266-2-4 + EN 50305; IEC 60332-3-24;
    NF C 32-070 2.2 (C1); VDE 0472 Teil 804
    Vertical flame spread of vertically mounted bunched wires or cables
    EN 50268-2; IEC 61034-2; NF C 32-073 ;
    NF C 20-902; NF F 16 101; VDE 0472 Teil 816
    Low Smoke Emission
    EN 50267-2-1; IEC 60754-1; NF C 32-074;
    NF C 20-454; VDE 0472 Teil 815
    Halogen Free

    EN 50267-2-2/3; IEC 60754-2; NF C 32-074;

    NF C 20-453; VDE 0472 Teil 813

    Low Corrosivity (Acidity & Conductivity)
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853
    Low Toxicity
    NF F 63 808; BS6853; NF F 16 101 Smoke index

FRL-TW-05M-ESW 300/500 V :

  • Number of Cores and
    Nominal Cross Section
    Minimum Thickness of
    Sheath at any Point
    Overall Diameter Weight
    min. max.
    n x mm2 mm mm mm kg/km
    4 x 0.5 1.0 5.5 6.5 50
    7 x 0.5 1.0 6.3 7.3 70
    13 x 0.5 1.0 8.3 9.3 120
    19 x 0.5 1.0 9.0 10.2 150
    37 x 0.5 1.0 12.3 13.5 290

    4 x 0.75 1.0 6.0 7.0 60
    7 x 0.75 1.0 6.9 7.9 90
    13 x 0.75 1.0 9.1 10.3 150
    19 x 0.75 1.0 10.0 11.2 200
    37 x 0.75 1.0 13.2 14.4 360
    48 x 0.75 1.0 14.8 16.4 460

    4 x 1.0 1.0 6.3 7.3 70
    7 x 1.0 1.0 7.3 8.3 110
    13 x 1.0 1.0 9.7 10.9 180
    19 x 1.0 1.0 10.7 11.9 250
    37 x 1.0 1.0 14.0 15.6 450

    4 x 1.5 1.0 7.4 8.4 100
    7 x 1.5 1.0 8.6 9.8 150
    13 x 1.5 1.0 11.7 12.9 270
    19 x 1.5 1.0 13.0 14.2 370
    37 x 1.5 1.0 17.2 18.8 690

    2 x 2.5 1.0 7.7 8.7 90
    3 x 2.5 1.0 8.1 9.1 120
    4 x 2.5 1.0 8.8 10.0 150
Corona Resistant
Highly Flexible
UV Resistant
Ozone Resistant
Abrasion Retardant
Cold- resistant



Resistance To
Soldering Heat
Acid&Alkaline
Resistant
IRM 903
Fuel Oil Resistant
IRM 902
Mineral Oil Resistant
Fire Retardant
NF C32-070-2.2(C2)
IEC60332-3-24/EN50266-2-4
Flame Retardant
NF C32-070-2.1(C1)
IEC60332-1-2/EN50265-2-1



Low Toxicity
NF X70-100/NF F63 808
TM1-04/BS 6853
Low Corrosivity
IEC60754-2/EN50267-2-2/3
NF C32-074/VDE 0472-813
Low Smoke Emission
IEC 61034-2 / EN 50268-2
NF C32-073/VDE 0472-816
Zero Halogen
IEC 60754-1/EN 50267-2-1
NF C32-074//VDE 0472-815
