FIREROL Thin Wall Multipair Individually Screened & Sheathed, with Exposed Standard Wall Sheath 300/500V EN 50306-4 (FRL-TW-05MP-ESW-IOS)
Application :
- -Used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor.
- -Used in cable harnesses, switchboards and control panels, driver desks etc.
Construction :
-
Conductor Tinned annealed copper wires as defined in EN 50306-2 Insulation LSZH special compound Overal screen Tinned annealed copper wires Pair screen Individual screened and sheathed. Screened according to EN 50306-3; Sheathed according to EN 50306-3 (S1, S2) Pair Identification Pairs numbered according to EN 50306-4 Outer sheath LSZH special compound (S2, EM 101 - EM 104) -

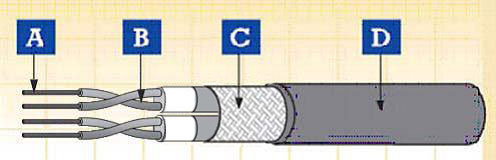

A. Conductor
B. Insulation
C. Screen
D. Sheath
Electrical & Mechanical Properties :
-
Nominal Voltage 300/500 V Maximum Conductor Temperature 90°C /105°C (fixed installation) Minimum Permissible Ambient Temperature -25/-40°C (fixed installation) Bending Radius 10 x Overall Diameter
Chemical & Environmental Properties :
-
EN 60684-2 No fluorine EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali EN 50305 Resistance to ozone
Fire Performance for rolling stock application :
-
EN 50306-2 Hazard levels HL1, HL2/HL3, HL4 DIN 5510-2 Protection level 1/2/3/4 BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II NF F 16-101 F0
Fire Performance for rolling stock application :
-
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804Vertical flame spread of vertically mounted bunched wires or cables EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816Low Smoke Emission EN 50267-2-1; IEC 60754-1; NF C 32-074;
NF C 20-454; VDE 0472 Teil 815Halogen Free EN 50267-2-2/3; IEC 60754-2; NF C 32-074;
NF C 20-453; VDE 0472 Teil 813
Low Corrosivity (Acidity & Conductivity) EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 Low Toxicity NF F 63 808; BS6853; NF F 16 101 Smoke index
FRL-TW-05MP-SW-IOS 300/500 V :
-
Number of Cores and
Nominal Cross SectionMinimum Thickness of
Sheath at any PointOverall Diameter Weight min. max. n x mm2 mm mm mm kg/km 2 x 2 x 0.5 1.0 10.1 11.3 100 3 x 2 x 0.5 1.0 10.8 12.0 150 4 x 2 x 0.5 1.0 11.8 13.0 180 7 x 2 x 0.5 1.0 13.9 15.5 270 2 x 2 x 0.75 1.0 10.9 12.1 120 3 x 2 x 0.75 1.0 11.6 12.8 170 4 x 2 x 0.75 1.0 12.8 14.0 220 7 x 2 x 0.75 1.0 15.1 16.7 330 2 x 2 x 1.0 1.0 11.3 12.5 130 3 x 2 x 1.0 1.0 12.0 13.2 190 4 x 2 x 1.0 1.0 13.2 14.4 235 7 x 2 x 1.0 1.0 15.7 17.3 370 2 x 2 x 1.5 1.0 13.3 14.5 180 3 x 2 x 1.5 1.0 14.0 15.6 260 4 x 2 x 1.5 1.0 15.5 17.1 340 7 x 2 x 1.5 1.0 18.7 20.3 540
Corona Resistant |
Highly Flexible |
UV Resistant |
Ozone Resistant | Abrasion Retardant |
Cold- resistant |
Resistance To Soldering Heat |
Acid&Alkaline Resistant |
IRM 903 Fuel Oil Resistant |
IRM 902 Mineral Oil Resistant |
Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4 |
Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1 |
Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853 |
Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813 |
Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816 |
Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815 |
