FIREROL Thin Wall Single Core Screened & Sheathed Cables 300/500 V
EN 50306-3 (FRL-TW-05S-OS)
Application :
- -Used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor.
- -Used in cable harnesses, switchboards and control panels, driver desks etc.
Construction :
-
Conductor Tinned annealed copper wires as defined in EN 50306-2 Insulation LSZH special compound Overal screen Tinned annealed copper wires Outer sheath LSZH special compound (S1 & S2) -

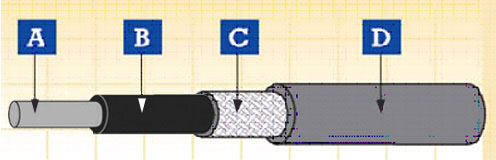

A. Conductor
B. Insulation
C. Screen
D. Sheath
Electrical & Mechanical Properties :
-
Nominal Voltage 300/500 V Maximum Conductor Temperature 120°C /150°C (fixed installation) Minimum Permissible Ambient Temperature -25/-40°C (fixed installation) Bending Radius 10 x Overall Diameter
Chemical & Environmental Properties :
-
EN 60684-2 No fluorine EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali EN 50305 Resistance to ozone
Fire Performance for rolling stock application :
-
EN 50306-2 Hazard levels HL1, HL2/HL3, HL4 DIN 5510-2 Protection level 1/2/3/4 BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II NF F 16-101 F0
Fire Performance for rolling stock application :
-
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804Vertical flame spread of vertically mounted bunched wires or cables EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816Low Smoke Emission EN 50267-2-1; IEC 60754-1; NF C 32-074;
NF C 20-454; VDE 0472 Teil 815Halogen Free EN 50267-2-2/3; IEC 60754-2; NF C 32-074;
NF C 20-453; VDE 0472 Teil 813
Low Corrosivity (Acidity & Conductivity) EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 Low Toxicity NF F 63 808; BS6853; NF F 16 101 Smoke index
FRL-TW-05S-OS 300/500 V :
-
Number of Cores and
Nominal Cross SectionMinimum Thickness of
Sheath at any PointOverall Diameter Weight min max n x mm2 mm mm mm kg/km 1 x 0.5 0.20 2.3 2.8 10 1 x 0.75 0.20 2.5 3.0 20 1 x 1 0.20 2.7 3.2 25 1 x 1.5 0.20 3.1 3.6 30 1 x 2.5 0.20 3.6 4.4 40
Impact Resistant |
Highly Flexible |
UV Resistant |
Ozone Resistant | Abrasion Retardant |
Cold- resistant |
Resistance To Soldering Heat |
Acid&Alkaline Resistant |
IRM 903 Fuel Oil Resistant |
IRM 902 Mineral Oil Resistant |
Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4 |
Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1 |
Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853 |
Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813 |
Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816 |
Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815 |
