WTB (Wired Train Bus) / MVB (Multifunction Vehicle Bus) Cables
FRL-WTB/MVB-02Y(ST+C)H-1P20A
Application :
- The cables are designed for permanent installation inside of rolling stock to connect fixed parts. A typical application is a communication system in a locomotive. The system uses a wire backed bus system to the TCN standard for control and instrumentation and for diagnostics. This bus system consists of the rail bus WTB (Wired Train Bus) and the road bus MVB (Multifunction Vehicle Bus) which are connected via redundant gateways.
Construction :
-
Conductor Stranded tin plated copper conductor according to IEC 60228 class 5 Insulation Foam PE or Foam Skin Cable Element Twisted pair Core Wrapping Plastic tape(s) EMC Screen1 Aluminium clad polyester foil EMC Screen2 Tin plated copper braid Outer Sheath Cross-linked oil resistant LSZH compound -

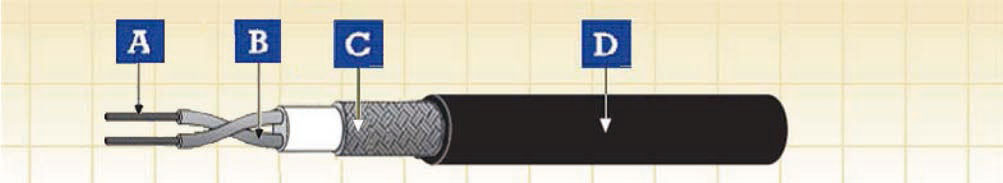

A. Conductor
B. Insulation
C. Screen
D. Sheath
Electrical & Mechanical Properties :
-
Nominal Voltage 300V Maximum Temperature 100°C Minimum Temperature -40°C Bending Radius 12 x Overall Diameter
Chemical & Environmental Properties :
-
EN 60684-2 No fluorine EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali EN 50305 Resistance to ozone
Fire Performance for rolling stock application :
-
EN 50306-2 Hazard levels HL1, HL2/HL3, HL4 DIN 5510-2 Protection level 1/2/3/4 BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II NF F 16-101 F0
Fire Performance for rolling stock application :
-
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804Vertical flame spread of vertically mounted bunched wires or cables EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816Low Smoke Emission EN 50267-2-1; IEC 60754-1; NF C 32-074;
NF C 20-454; VDE 0472 Teil 815Halogen Free EN 50267-2-2/3; IEC 60754-2; NF C 32-074;
NF C 20-453; VDE 0472 Teil 813
Low Corrosivity (Acidity & Conductivity) EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 Low Toxicity NF F 63 808; BS6853; NF F 16 101 Smoke index
FRL-WTB/MVB-02Y(ST+C)H-1P20A :
-
Nominal Cross Sectional Area Number &
Nominal
Diameter
of StrandsNominal
Sheath
ThicknessNominal
Overall
DiameterNominal
WeightMaximum
Conductor
ResistanceImpedance Maximum Attenuation 20°C @0.75-3MHz @1MHz @2MHz mm2 AWG No/mm mm mm kg/km Ω/km Ω dB/km dB/km 0.62 20 19/0.2 1.2 8.3 80 33.1 120+/-12 10 15
Corona Resistant |
Highly Flexible |
UV Resistant |
Ozone Resistant | Abrasion Retardant |
Cold- resistant |
Resistance To Soldering Heat |
Acid&Alkaline Resistant |
IRM 903 Fuel Oil Resistant |
IRM 902 Mineral Oil Resistant |
Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4 |
Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1 |
Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853 |
Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813 |
Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816 |
Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815 |
