PVC Insulated Jumper Wires to CW 1109, CW 1257 & CW 1423 |
|
| |
| Applications |
|
| |
The jumper wires are used for interconnection between terminal blocks at main distribution frames (MDF), cross connection cabinets (CCP) and distribution frames or boxes. |
| Standards |
| |
• CW 1109 (PVC T2)
• CW 1257 (Cross linked PVC)
• CW 1423 (PVC BT M154) |

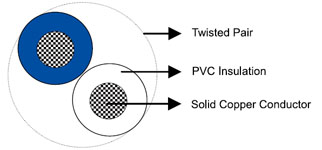

| Construction |
|
| |
Conductors: Solid annealed tinned copper 0.32/0.4/0.5/0.6/0.8/1.0mm as per class 1 of BS 6360/IEC 60228. |
| |
Insulation: PVC Type 2 to BS 6746 (CW 1109); Cross-linked PVC (CW 1257) & PVC (CW 1423). |
| |
Twisted Pairs: For CW 1109 & CW 1257, two insulated conductors are twisted into pairs with varying lays to minimize crosstalk. For CW 1423, one, two, three, four or five insulated conductors are twisted together with a right hand lay. |
| |
| Electrical properties |
|
| |
CW 1109 |
| |
| Nominal Conductor Diameter |
mm |
0.32 |
0.4 |
0.5 |
0.6 |
0.8 |
1.0 |
7/0.2 |
| Conductor Size |
mm2 |
0.08 |
0.126 |
0.196 |
0.283 |
0.5 |
0.785 |
0.22 |
| Maximum Conductor Resistance @20°C |
Ω/km |
234 |
148 |
95 |
65.9 |
36.7 |
23.3 |
89.9 |
| Minimum Insulation Resistance @500V DC |
MΩ.km |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
| Minimum Insulation Thickness |
mm |
0.12 |
0.15 |
0.15 |
0.15 |
0.25 |
0.25 |
0.15 |
| Maximum Insulated Conductor Diameter |
mm |
0.7 |
0.85 |
0.95 |
1.05 |
1.5 |
1.7 |
1.05 |
|
| |
CW 1257 |
| |
| Nominal Conductor Diameter |
mm |
0.4 |
0.5 |
0.6 |
| Conductor Size |
mm2 |
0.126 |
0.196 |
0.283 |
| Maximum Conductor Resistance @20°C |
Ω/km |
153 |
98 |
68.9 |
| Minimum Insulation Resistance @500V DC |
MΩ.km |
50 |
50 |
50 |
| Minimum Insulation Thickness |
mm |
0.25 |
0.25 |
0.25 |
| Maximum Insulated Conductor Diameter |
mm |
1.0 |
1.10 |
1.20 |
|
| |
CW 1423 |
| |
| Nominal Conductor Diameter |
mm |
0.5 |
| Conductor Size |
mm2 |
0.196 |
| Maximum Conductor Resistance @20°C |
Ω/km |
98 |
| Minimum Insulation Resistance @500V DC |
MΩ.km |
50 |
| Minimum Insulation Thickness |
mm |
0.25 |
| Maximum Insulated Conductor Diameter |
mm |
1.10 |
|
| Mechanical and thermal properties |
| |
Temperature range during operation (fixed state) : -30°C – +70°C |
| |
Temperature range during installation (mobile state) : -20°C – +50°C |
| |
Minimum bending radius : 7.5 x Overall Diameter |
| Colour code |
| |
CW 1109 - as per IEC 60189-3 |
| |
CW 1257 & CW 1423: |
| |
| BLUE |
ORANGE |
GREEN |
| BROWN |
GREY |
WHITE |
| RED |
BLACK |
PINK |
| VIOLET |
YELLOW |
TURQUOISE |
|
| Dimensions and weight |
| |
CW 1109 |
| |
| Cable Code |
Number of
Wires |
Minimum Insulation
Thickness
mm |
Maximum Overall
Diameter
mm |
Nominal Weight
kg/km |
| 0.32mm Conductor, 0.7mm Insulated Wire |
| TP1109-Y-1W032 |
1 |
0.12 |
0.7 |
1.5 |
| TP1109-Y-2W032 |
2 |
0.12 |
1.3 |
3.0 |
| 0.4mm Conductor, 0.85mm Insulated Wire |
| TP1109-Y-1W04 |
1 |
0.15 |
0.85 |
1.8 |
| TP1109-Y-2W04 |
2 |
0.15 |
1.45 |
3.6 |
| 0.5mm Conductor, 0.95mm Insulated Wire |
| TP1109-Y-1W05 |
1 |
0.15 |
0.95 |
2.2 |
| TP1109-Y-2W05 |
2 |
0.15 |
1.65 |
4.8 |
| TP1109-Y-3W05 |
3 |
0.15 |
2.35 |
6.6 |
| 0.6mm Conductor, 1.05mm Insulated Wire |
| TP1109-Y-1W06 |
1 |
0.15 |
1.05 |
2.8 |
| TP1109-Y-2W06 |
2 |
0.15 |
1.75 |
5.6 |
| 0.8mm Conductor, 1.5mm Insulated Wire |
| TP1109-Y-1W08 |
1 |
0.25 |
1.50 |
5.5 |
| TP1109-Y-2W08 |
2 |
0.25 |
2.50 |
11.0 |
| 1.0mm Conductor, 1.7mm Insulated Wire |
| TP1109-Y-1W10 |
1 |
0.25 |
1.70 |
6.5 |
| TP1109-Y-2W10 |
2 |
0.25 |
2.60 |
13.0 |
| 7/0.2mm Conductor, 1.05mm Insulated Wire |
| TP1109-Y-1W7/02 |
1 |
0.15 |
1.05 |
2.5 |
| TP1109-Y-2W7/02 |
2 |
0.15 |
2.35 |
5.0 |
|
| |
CW 1257 |
| |
| Cable Code |
Number of
Wires |
Minimum Insulation
Thickness
mm |
Maximum Overall
Diameter
mm |
Nominal Weight
kg/km |
| 0.4mm Conductor, 1.0mm Insulated Wire |
| TP1257-Y-1W04 |
1 |
0.25 |
1.0 |
2.0 |
| TP1257-Y-2W04 |
2 |
0.25 |
1.8 |
4.0 |
| 0.5mm Conductor, 1.1mm Insulated Wire |
| TP1257-Y-1W05 |
1 |
0.25 |
1.1 |
2.5 |
| TP1257-Y-2W05 |
2 |
0.25 |
2.0 |
5.0 |
| 0.6mm Conductor, 1.2mm Insulated Wire |
| TP1257-Y-1W06 |
1 |
0.25 |
1.2 |
2.9 |
| TP1257-Y-2W06 |
2 |
0.25 |
2.2 |
5.8 |
|
| |
CW 1423 |
| |
| Cable Code |
Number of
Wires |
Minimum Insulation
Thickness
mm |
Maximum Overall
Diameter
mm |
Nominal Weight
kg/km |
| 0.5mm Conductor, 1.1mm Insulated Wire |
| TP1423-Y-1W05 |
1 |
0.25 |
1.98 |
2.5 |
| TP1423-Y-2W05 |
2 |
0.25 |
2.5 |
5.0 |
| TP1423-Y-3W05 |
3 |
0.25 |
3.0 |
7.5 |
| TP1423-Y-4W05 |
4 |
0.25 |
3.8 |
10.0 |
| TP1423-Y-5W05 |
5 |
0.25 |
4.6 |
12.5 |
|
| |
|
