Indoor Switchboard Telephone Cables to CW 1293 |
|
|
Applications |
|
|
The cables are designed to handle low frequency signals for short range applications,suitable for cross connecting individual items of switchboard equipment and to connect exchanges with internal distribution points. The cables are intended to be terminated in Insulation/displacement Connectors (IDC). |
Standards |
|
• CW 1293
• IEC 60189-2
• IEC 60332-1
• UL1581 VW-1 & UL1666
• IEEE 383CI.IE |

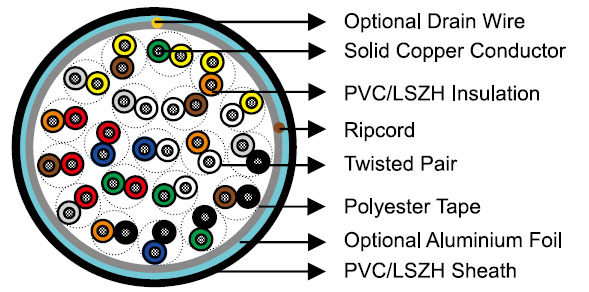

Construction |
|
|
Conductors: Solid annealed bare copper 0.4/0.5/0.6/0.9mm as per class 1 of BS 6360 and IEC 60228. |
|
Insulation: Colour coded PVC T154 to BS 7878 or equivalent. LSZH option can be offered upon request. |
|
Twisted Pairs: Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk. |
|
Cabling Element: Twisted Pairs/Triples/Quads. |
|
Cable Core Assembly: There are two modes of construction: layer construction and unit construction. For layer construction, cables are laid up in concentric layers to form a compact and circular cable. For unit construction, the elements shall be pairs and shall be laid up as units or sub-units. Each unit shall consist of 20 pair. |
|
Core Wrapping: Cable containing more than 12 wires has a polyester tape applied over the cable core prior to sheathing. |
|
|
Screen (optional): An aluminium polyester foil shield can be provided for fully enclosing the core with an overlap. |
|
|
Sheath: PVC TM51 to BS 7878 or equivalent. Grey, White or Cream colours are standard. LSZH option can be offered upon request. |
|
|
Ripcord: Nylon ripcord may be placed parallel to the cores to facilitate sheath removal. |
|
|
Drain Wire (optional): For screened cables, a solid tinned copper drain wire may be longitudinally laid to ensure electrical continuity of the screen. |
|
|
Electrical properties |
|
|
Nominal Conductor Diameter |
mm |
0.4 |
0.5 |
0.6 |
0.9 |
Conductor Size |
mm2 |
0.126 |
0.196 |
0.28 |
0.636 |
Maximum Conductor Resistance @20°C |
Ω/km |
153 |
97.8 |
67.9 |
29.6 |
Minimum Insulation Resistance @500V DC @20°C |
MΩ.km |
50 |
50 |
50 |
50 |
Maximum Capacitance Unbalance pair-to-pair * |
pF/500m |
*200/300 |
500 |
300 |
300 |
Minimum Insulation Thickness |
mm |
0.15 |
0.15 |
0.15 |
0.25 |
Maximum Insulated Conductor Diameter |
mm |
0.85 |
0.95 |
1.05 |
1.6 |
|
|
* For 25, 50 & 100 pair 0.4mm conductor size |
Mechanical and thermal properties |
|
Temperature range during operation (fixed state) : -30°C – +70°C |
|
Temperature range during installation (mobile state) : -20°C – +50°C |
|
Minimum bending radius : 7.5 x Overall Diameter |
Colour code |
|
The pair colour scheme for these cables complies with IEC 189-2 & 189-3 given in the Colour Code Chart below, with the exception of the
2 pair cable, which is constructed as a quad and a colour scheme of Blue, Green, Orange and Brown respectively. |
|
Make-up & Unit Identification Colours – 20 Pair Unit |
|
Pair Size |
20 Pairs |
40 Pairs |
80 Pairs |
160 Pairs |
320 Pairs |
Number of Units |
Center |
1 |
4 x ½ |
1 |
4 x ½ |
1 |
1st Layer |
|
|
6 x ½ |
6 |
5 |
2nd Layer |
|
|
|
|
10 |
Colours of Unit Lappings |
1 |
ORANGE |
ORANGE |
ORANGE |
ORANGE |
ORANGE |
2 |
|
GREEN |
ORANGE |
GREEN |
ORANGE |
3 |
|
|
NATURAL |
ORANGE |
NATURAL |
4 |
|
|
GREEN |
NATURAL |
NATURAL |
5 |
|
|
|
NATURAL |
NATURAL |
6 |
|
|
|
NATURAL |
GREEN |
7 |
|
|
|
NATURAL |
ORANGE |
8 |
|
|
|
GREEN |
NATURAL |
9 – 15 |
|
|
|
|
NATURAL |
16 |
|
|
|
|
GREEN |
|
|
Note 1: ½ refers to sub-units of 10 Pairs. |
|
|
|
Colour Scheme for Pairs & Triples |
|
Cabling
Element
No. |
a-wire |
b-wire |
Cabling
Element
No. |
a-wire |
b-wire |
Cabling
Element No. |
a-wire |
b-wire |
1 |
WHITE |
BLUE |
41 |
WHITE |
Orange |
BLUE |
81 |
WHITE |
Brown |
BLUE |
2 |
WHITE |
ORANGE |
42 |
WHITE |
Orange |
ORANGE |
82 |
WHITE |
Brown |
ORANGE |
3 |
WHITE |
GREEN |
43 |
WHITE |
Orange |
GREEN |
83 |
WHITE |
Brown |
GREEN |
4 |
WHITE |
BROWN |
44 |
WHITE |
Orange |
BROWN |
84 |
WHITE |
Brown |
BROWN |
5 |
WHITE |
GREY |
45 |
WHITE |
Orange |
GREY |
85 |
WHITE |
Brown |
GREY |
6 |
RED |
BLUE |
46 |
ORANGE |
Red |
BLUE |
86 |
RED |
Brown |
BLUE |
7 |
RED |
ORANGE |
47 |
ORANGE |
Red |
ORANGE |
87 |
RED |
Brown |
ORANGE |
8 |
RED |
GREEN |
48 |
ORANGE |
Red |
GREEN |
88 |
RED |
Brown |
GREEN |
9 |
RED |
BROWN |
49 |
ORANGE |
Red |
BROWN |
89 |
RED |
Brown |
BROWN |
10 |
RED |
GREY |
50 |
ORANGE |
Red |
GREY |
90 |
RED |
Brown |
GREY |
11 |
BLACK |
BLUE |
51 |
ORANGE |
Black |
BLUE |
91 |
BROWN |
Black |
BLUE |
12 |
BLACK |
ORANGE |
52 |
ORANGE |
Black |
ORANGE |
92 |
BROWN |
Black |
ORANGE |
13 |
BLACK |
GREEN |
53 |
ORANGE |
Black |
GREEN |
93 |
BROWN |
Black |
GREEN |
14 |
BLACK |
BROWN |
54 |
ORANGE |
Black |
BROWN |
94 |
BROWN |
Black |
BROWN |
15 |
BLACK |
GREY |
55 |
ORANGE |
Black |
GREY |
95 |
BROWN |
Black |
GREY |
16 |
YELLOW |
BLUE |
56 |
YELLOW |
Orange |
BLUE |
96 |
YELLOW |
Brown |
BLUE |
17 |
YELLOW |
ORANGE |
57 |
YELLOW |
Orange |
ORANGE |
97 |
YELLOW |
Brown |
ORANGE |
18 |
YELLOW |
GREEN |
58 |
YELLOW |
Orange |
GREEN |
98 |
YELLOW |
Brown |
GREEN |
19 |
YELLOW |
BROWN |
59 |
YELLOW |
Orange |
BROWN |
99 |
YELLOW |
Brown |
BROWN |
20 |
YELLOW |
GREY |
60 |
YELLOW |
Orange |
GREY |
100 |
YELLOW |
Brown |
GREY |
21 |
WHITE |
Blue |
BLUE |
61 |
WHITE |
GREEN |
BLUE |
101 |
WHITE |
Grey |
BLUE |
22 |
WHITE |
Blue |
ORANGE |
62 |
WHITE |
GREEN |
ORANGE |
102 |
WHITE |
Grey |
ORANGE |
23 |
WHITE |
Blue |
GREEN |
63 |
WHITE |
GREEN |
GREEN |
103 |
WHITE |
Grey |
GREEN |
24 |
WHITE |
Blue |
BROWN |
64 |
WHITE- |
GREEN |
BROWN |
104 |
WHITE |
Grey |
BROWN |
25 |
WHITE |
Blue |
GREY |
65 |
WHITE |
GREEN |
GREY |
105 |
WHITE |
Grey |
GREY |
26 |
RED |
Blue |
BLUE |
66 |
GREEN |
Red |
BLUE |
106 |
GREY |
Red |
BLUE |
27 |
RED |
Blue |
ORANGE |
67 |
GREEN |
Red |
ORANGE |
107 |
GREY |
Red |
ORANGE |
28 |
RED |
Blue |
GREEN |
68 |
GREEN |
Red |
GREEN |
108 |
GREY |
Red |
GREEN |
29 |
RED |
Blue |
BROWN |
69 |
GREEN |
Red |
BROWN |
109 |
GREY |
Red |
BROWN |
30 |
RED |
Blue |
GREY |
70 |
GREEN |
Red |
GREY |
110 |
GREY |
Red |
GREY |
31 |
BLUE |
Black |
BLUE |
71 |
GREEN |
Black |
BLUE |
111 |
GREY |
Black |
BLUE |
32 |
BLUE |
Black |
ORANGE |
72 |
GREEN |
Black |
ORANGE |
112 |
GREY |
Black |
ORANGE |
33 |
BLUE |
Black |
GREEN |
73 |
GREEN |
Black |
GREEN |
113 |
GREY |
Black |
GREEN |
34 |
BLUE |
Black |
BROWN |
74 |
GREEN |
Black |
BROWN |
114 |
GREY |
Black |
BROWN |
35 |
BLUE |
Black |
GREY |
75 |
GREEN |
Black |
GREY |
115 |
GREY |
Black |
GREY |
36 |
YELLOW |
Blue |
BLUE |
76 |
YELLOW |
Green |
BLUE |
116 |
YELLOW |
Grey |
BLUE |
37 |
YELLOW |
Blue |
ORANGE |
77 |
YELLOW |
Green |
ORANGE |
117 |
YELLOW |
Grey |
ORANGE |
38 |
YELLOW |
Blue |
GREEN |
78 |
YELLOW |
Green |
GREEN |
118 |
YELLOW |
Grey |
GREEN |
39 |
YELLOW |
Blue |
BROWN |
79 |
YELLOW |
Green |
BROWN |
119 |
YELLOW |
Grey |
BROWN |
40 |
YELLOW |
Blue |
GREY |
80 |
YELLOW |
Green |
GREY |
120 |
YELLOW |
Grey |
GREY |
|
|
Note 1: In each triple there shall be a c-wire, coloured Turquoise. |
|
Note 2: Uppercase letters indicate the base, solid colour of insulation, and the lower case indicates ink bands applied onto the
base colour. |
Dimensions and weight |
|
Cable Code |
Number of
Pairs |
Make Up |
Minimum Insulation
Thickness mm |
Minimum Sheath
Thickness mm |
Maximum Overall
Diameter mm |
Nominal
Weight kg/km |
0.4mm Conductor, 0.85mm Insulated Wire-Pair Wires |
TP1293-YY-1P04 |
1 |
Layer |
0.15 |
0.4 |
3.3 |
10 |
TP1293-YY-3P04 |
3 |
Layer |
0.15 |
0.5 |
5.3 |
15 |
TP1293-YY-6P04 |
6 |
Layer |
0.15 |
0.6 |
6.8 |
37 |
TP1293-YY-10P04 |
10 |
Layer |
0.15 |
0.6 |
8.3 |
54 |
TP1293-YY-12P04 |
12 |
Layer |
0.15 |
0.7 |
8.9 |
61 |
TP1293-YY-16P04 |
16 |
Layer |
0.15 |
0.7 |
9.8 |
80 |
TP1293-YY-20P04 |
20 |
Layer |
0.15 |
0.7 |
10.4 |
95 |
TP1293-YY-25P04 |
25 |
Layer |
0.15 |
0.8 |
11.1 |
115 |
TP1293-YY-40P04 |
40 |
Layer |
0.15 |
0.9 |
13.8 |
200 |
TP1293-YY-50P04 |
50 |
Layer |
0.15 |
0.9 |
14.1 |
225 |
TP1293-YY-60P04 |
60 |
Layer |
0.15 |
1.0 |
15.8 |
245 |
TP1293-YY-72P04 |
72 |
Layer |
0.15 |
1.1 |
17.3 |
285 |
TP1293-YY-100P04 |
100 |
Layer |
0.15 |
1.2 |
20.1 |
415 |
0.5mm Conductor, 0.95mm Insulated Wire-Pair Wires |
TP1293-YY-1P05 |
1 |
Layer |
0.15 |
0.4 |
3.3 |
12 |
TP1293-YY-2P05 |
2 |
Layer |
0.15 |
0.4 |
4.0 |
25 |
TP1293-YY-3P05 |
3 |
Layer |
0.15 |
0.5 |
5.3 |
30 |
TP1293-YY-4P05 |
4 |
Layer |
0.15 |
0.5 |
5.8 |
40 |
TP1293-YY-6P05 |
6 |
Layer |
0.15 |
0.6 |
6.8 |
50 |
TP1293-YY-8P05 |
8 |
Layer |
0.15 |
0.6 |
7.6 |
65 |
TP1293-YY-10P05 |
10 |
Layer |
0.15 |
0.6 |
8.3 |
75 |
TP1293-YY-12P05 |
12 |
Layer |
0.15 |
0.7 |
9.1 |
98 |
TP1293-YY-15P05 |
15 |
Layer |
0.15 |
0.7 |
9.8 |
110 |
TP1293-YY-16P05 |
16 |
Layer |
0.15 |
0.7 |
10.0 |
115 |
TP1293-YY-20P05 |
20 |
Layer |
0.15 |
0.7 |
10.7 |
140 |
TP1293-YY-20P05U |
20 |
Unit |
0.15 |
0.7 |
10.7 |
141 |
TP1293-YY-(20+1)P05 |
20+1 |
Layer |
0.15 |
0.7 |
10.7 |
146 |
TP1293-YY-24P05 |
24 |
Layer |
0.15 |
0.8 |
11.3 |
160 |
TP1293-YY-25P05 |
25 |
Layer |
0.15 |
0.8 |
11.4 |
165 |
TP1293-YY-28P05 |
28 |
Layer |
0.15 |
0.8 |
11.5 |
180 |
TP1293-YY-30P05 |
30 |
Layer |
0.15 |
0.8 |
12.2 |
190 |
TP1293-YY-40P05 |
40 |
Layer |
0.15 |
0.9 |
14.2 |
250 |
TP1293-YY-42P05 |
42 |
Layer |
0.15 |
1.0 |
14.5 |
260 |
TP1293-YY-50P05 |
50 |
Layer |
0.15 |
1.0 |
15.7 |
320 |
TP1293-YY-53P05 |
53 |
Layer |
0.15 |
1.0 |
15.9 |
330 |
TP1293-YY-60P05 |
60 |
Layer |
0.15 |
1.0 |
16.3 |
380 |
TP1293-YY-75P05 |
75 |
Layer |
0.15 |
1.1 |
17.8 |
440 |
TP1293-YY-80P05 |
80 |
Layer |
0.15 |
1.2 |
21.8 |
500 |
TP1293-YY-80P05U |
80 |
Unit |
0.15 |
1.2 |
21.8 |
500 |
TP1293-YY-100P05 |
100 |
Layer |
0.15 |
1.4 |
22.6 |
635 |
TP1293-YY-120P05 |
120 |
Layer |
0.15 |
1.5 |
25.2 |
770 |
TP1293-YY-160P05U |
160 |
Unit |
0.15 |
1.7 |
29.8 |
1175 |
TP1293-YY-320P05U |
320 |
Unit |
0.15 |
2.2 |
39.1 |
2255 |
0.6mm Conductor, 1.05mm Insulated Wire-Pair Wires |
TP1293-YY-3P06 |
3 |
Layer |
0.15 |
0.5 |
5.3 |
40 |
TP1293-YY-6P06 |
6 |
Layer |
0.15 |
0.6 |
7.1 |
66 |
TP1293-YY-10P06 |
10 |
Layer |
0.15 |
0.7 |
8.9 |
99 |
TP1293-YY-20P06 |
20 |
Layer |
0.15 |
0.8 |
11.2 |
193 |
TP1293-YY-40P06 |
40 |
Layer |
0.15 |
1.0 |
15.5 |
350 |
TP1293-YY-50P06 |
50 |
Layer |
0.15 |
1.1 |
16.5 |
434 |
TP1293-YY-60P06 |
60 |
Layer |
0.15 |
1.1 |
18.0 |
510 |
TP1293-YY-80P06 |
80 |
Layer |
0.15 |
1.3 |
22.0 |
700 |
TP1293-YY-100P06 |
100 |
Layer |
0.15 |
1.5 |
24.6 |
810 |
0.9mm Conductor, 1.6mm Insulated Wire-Pair Wires |
TP1293-YY-1C09 |
1 Wire |
N/A |
0.25 |
0.4 |
3.0 |
25 |
TP1293-YY-2P09 |
2 |
Layer |
0.25 |
0.5 |
4.5 |
50 |
TP1293-YY-6P09 |
6 |
Layer |
0.25 |
0.6 |
7.6 |
100 |
TP1293-YY-12P09 |
12 |
Layer |
0.25 |
0.8 |
10.1 |
225 |
TP1293-YY-20P09 |
20 |
Layer |
0.25 |
0.9 |
12.7 |
322 |
TP1293-YY-24P09 |
24 |
Layer |
0.25 |
0.9 |
12.9 |
370 |
|
|
|
|
Cable Code |
Number
of
Pairs |
Make Up |
Minimum Insulation
Thickness mm |
Minimum Sheath
Thickness mm |
Maximum Overall
Diameter mm |
Nominal
Weight kg/km |
0.4mm Conductor, 0.85mm Insulated Wire-Triple Wires |
TP1293-YY-6T04 |
6 |
Layer |
0.15 |
0.6 |
7.9 |
50 |
TP1293-YY-10T04 |
10 |
Layer |
0.15 |
0.7 |
9.6 |
80 |
TP1293-YY-20T04 |
20 |
Layer |
0.15 |
0.8 |
11.8 |
145 |
0.5mm Conductor, 0.95mm Insulated Wire-Triple Wires |
TP1293-YY-1T05 |
1 |
Layer |
0.15 |
0.4 |
3.5 |
20 |
TP1293-YY-10T05 |
10 |
Layer |
0.15 |
0.7 |
9.8 |
115 |
TP1293-YY-20T05 |
20 |
Layer |
0.15 |
0.8 |
12.2 |
190 |
TP1293-YY-(20+1)T05 |
20+1 |
Layer |
0.15 |
0.8 |
12.2 |
205 |
TP1293-YY-25T05 |
25 |
Layer |
0.15 |
0.9 |
12.9 |
250 |
TP1293-YY-35T05 |
35 |
Layer |
0.15 |
0.9 |
13.4 |
325 |
TP1293-YY-40T05 |
40 |
Layer |
0.15 |
1.0 |
16.3 |
380 |
TP1293-YY-46T05 |
46 |
Layer |
0.15 |
1.1 |
17.2 |
430 |
TP1293-YY-50T05 |
50 |
Layer |
0.15 |
1.1 |
17.8 |
505 |
TP1293-YY-100T05 |
100 |
Layer |
0.15 |
1.7 |
29.0 |
950 |
0.6mm Conductor, 1.05mm Insulated Wire-Triple Wires |
TP1293-YY-1T06 |
1 |
Layer |
0.15 |
0.4 |
3.7 |
27 |
TP1293-YY-10T06 |
10 |
Layer |
0.15 |
0.8 |
10.1 |
167 |
TP1293-YY-20T06 |
20 |
Layer |
0.15 |
0.9 |
13.4 |
270 |
TP1293-YY-25T06 |
25 |
Layer |
0.15 |
1.0 |
15.0 |
360 |
TP1293-YY-40T06 |
40 |
Layer |
0.15 |
1.1 |
18.0 |
530 |
TP1293-YY-46T06 |
46 |
Layer |
0.15 |
1.2 |
19.3 |
600 |
TP1293-YY-50T06 |
50 |
Layer |
0.15 |
1.2 |
19.3 |
700 |
|
|
|
|
Cable Code |
Number
of
Pairs |
Make Up |
Minimum Insulation
Thickness mm |
Minimum Sheath
Thickness mm |
Maximum Overall
Diameter mm |
Nominal
Weight kg/km |
0.4mm Conductor, 0.85mm Insulated Wire–Pair & Triple Wires |
TP1293-YY-10P10T04 |
10 |
Layer |
0.15 |
0.8 |
11.1 |
115 |
0.5mm Conductor, 0.95mm Insulated Wire-Pair & Triple Wires |
TP1293-YY-10P10T05 |
10 |
Layer |
0.15 |
0.8 |
11.4 |
165 |
TP1293-YY-20P10T05 |
20 |
Layer |
0.15 |
1.0 |
15.7 |
320 |
TP1293-YY-25P10T05 |
25 |
Layer |
0.15 |
1.1 |
16.7 |
410 |
TP1293-YY-50P10T05 |
50 |
Layer |
0.15 |
1.6 |
27.2 |
950 |
0.6mm Conductor, 1.05mm Insulated Wire-Pair & Triple Wires |
TP1293-YY-10P10T06 |
10 |
Layer |
0.15 |
0.9 |
12.9 |
230 |
TP1293-YY-20P10T06 |
20 |
Layer |
0.15 |
1.1 |
16.5 |
430 |
TP1293-YY-25P10T06 |
25 |
Layer |
0.15 |
1.2 |
18.5 |
520 |
|
|
|
