Cellular PE Insulated & LAP Sheathed Air Core/Jelly Filled Cables to DIN VDE 0816

Applications
  The cables are designed for use as connection between central offices. The cables are suitable for installation in ducts, direct burial in the ground and also for aerial installation with integral suspension strand. Jelly filled option is for subscriber’s cables installed underground or along the edge of pavement. An armoured option is offered for direct burial installations. A figure-8 self support option is offered for aerial installation.
Standards
  • DIN VDE 0816

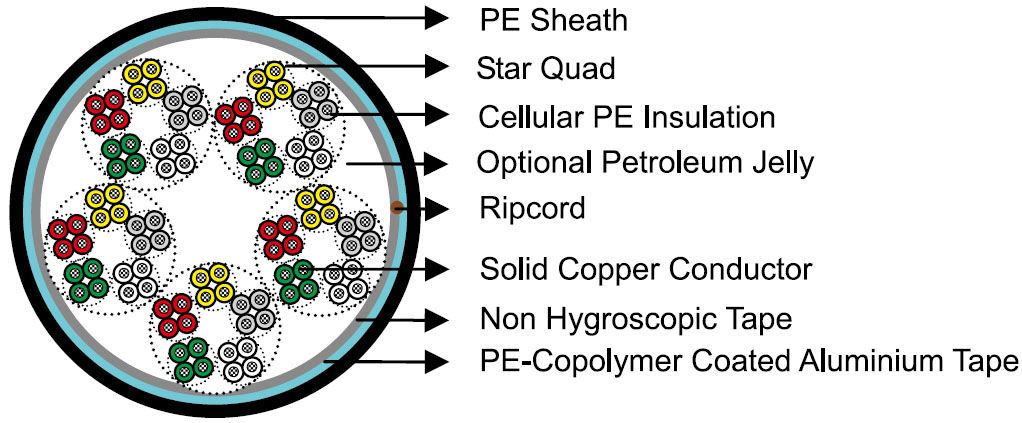

Construction
  Conductors: Solid annealed bare copper 0.4/0.6/0.8mm, as per class 1 of DIN VDE 0295/ BS 6360/IEC 60228.
  Insulation: Cellular polyethylene 2YI2 type as per VDE 0207-2.
  Twisted Pairs: Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk.
  Cabling Element: Star Quads.
  Cable Core Assembly: 4 Cores are twisted into star quad. 5 star quads are stranded into a basic unit. 5 or 10 basic units each are stranded into one main unit. The star quads are grouped in units and stranded in layers to form the cable core.Standard make up is per VDE 0816 in the Cable Make Up Diagram.
  Core Wrapping: One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap. These tapes furnish thermal, mechanical as well as high dielectric protection between shielding and individual conductors.
  Moisture Barrier:A layer of aluminium tape (0.2mm) coated with PE-copolymer on one or both sides is applied longitudinally with overlap over the cable core to provide 100% electrical shielding coverage and ensures a barrier against water vapor.
  Sheath: Black low or medium density polyethylene 2YM2 type as per VDE 0207-3, being able to withstand exposure to sunlight, temperature variations, ground chemicals and other environmental contaminants.
  Ripcord: Ripcord may be provided for slitting the sheath longitudinally to facilitate its removal.
  Spare Pairs (optional): Spare pairs may be provided for large pair cables.
  Continuity Wire (optional): Tinned copper drain wire may be longitudinally laid to ensure electrical continuity of the screen.
Optional Construction
  Jelly Filled Cable: The cable core interstices are filled with petroleum jelly to avoid longitudinal water penetration within the cable. The water resistant filling compound is applied to the air space between non-hygroscopic tape and shield,shield and sheath within the cable core.

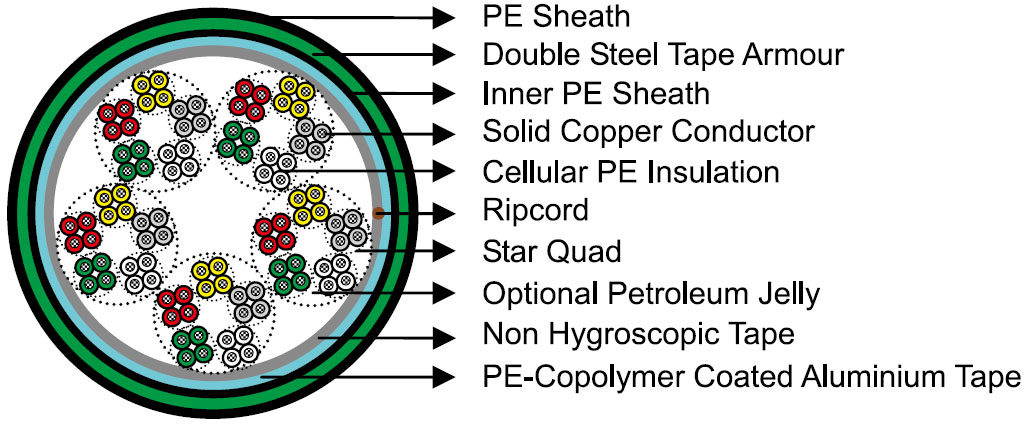

  Armoured Cable: Corrugated steel tape armour is applied over an optional inner polyethylene sheath with an overlap. An outer polyethylene sheath is applied over the armour.

Type Codes
  A - Outdoor Cable
  02Y - Cellular Polyethylene (FOAM PE) insulation
  F - Continuous core filling
  (L)2Y - Laminated sheath(copolymer-coated aluminium tape laminated to PE outer sheath)
  SR - Corrugated steel tape
  b - Armouring
  T - Messenger of galvanized steel wires
  StIII - Star quad in local cables.
  Bd - Unit-type stranding
Electrical properties

Nominal Conductor Diameter mm 0.4 0.6 0.8
Conductor Gauge Size AWG 26 - 20
Conductor Size mm2 0.126 0.283 0.5
Maximum Average Conductor Resistance @20°C Ω/km 143 63 34.6
Minimum Insulation Resistance @500V DC MΩ.km 5000 5000 5000
Maximum Mutual Capacitance @800Hz 95% of all values nF/km 40 40 40
100% of all values nF/km 42 42 42
Capacitance Unbalance @800Hz pair-to-pair
      K1         100% of values  max pF/500m 980 800 800
98% of values   max pF/500m 420 400 400
      K9-12 100% of values  max pF/500m 800 300 300
90% of values   max   pF/500m 200 100 100
Maximum Conductor Loop Resistance @20°C Ω/km 300 130 73.2
Impedance @0.8KHz Ω 994 665 500
Maximum Average Attenuation @0.8KHz dB/km 1.45 0.91 0.68
Dielectric Strength 50Hz
      Conductor to Conductor (2mins) V AC 500 500 500
      Conductor to Screen (2mins) V AC 2000 2000 2000
Maximum Operating Voltage Peak Value V 150 225 225
Nominal Insulation Thickness (Air Core) mm 0.20 0.25 0.3
(Jelly Filled) mm 0.26 0.36 0.44
Nominal Insulated Conductor Diameter (Air Core) mm 0.8 1.1 1.4
(Jelly Filled) mm 0.92 1.32 1.68
Mechanical and thermal properties
  Temperature range during operation (fixed state): -30°C – +70°C
  Temperature range during installation (mobile state): -20°C – +50°C
  Minimum bending radius: 10 x Overall Diameter (unarmoured cables);15 x Overall Diameter (armoured cables)
Colour code

Quads

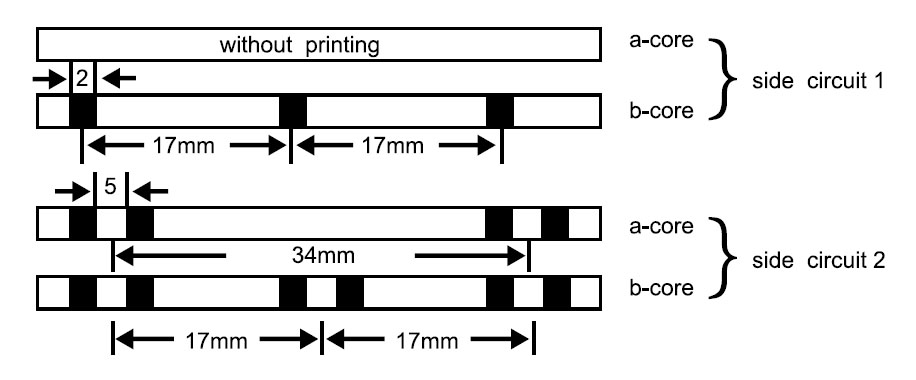

The single core is identified by black ring markings:
Side Circuit 1 a-wire without marking
  b-wire 1 mark distance 17mm
Side Circuit 2 a-wire 2 marks distance 34mm
  b-wire 2 marks distance 17mm
Subunits
Basic colours for the wire insulation of the 5 star quads of a basic unit:
Quad 1 Red     Quad 2 Green
Quad 3 Grey     Quad 4 Yellow    Quad 5 White
The tracer units are coded with a red helix, all other units by a white binder.
Dimensions and weight
  Cellular PE Insulated and LAP Sheathed Air Core Cable to DIN VDE 0816
  VDE CODE: A-02Y(L)2Y …x2x0.4/0.6/0.8 StIII Bd

Cable Code Number of Pairs Nominal Insulation
Thickness
mm		 Nominal Sheath
Thickness
mm		 Nominal Overall
Diameter
mm		 Nominal Weight
kg/km
0.4mm Conductor, 0.8mm Insulated Wire
TP816A-02Y(L)2Y-StIII-Bd-6P04 6 0.2 1.8 9.0 85
TP816A-02Y(L)2Y-StIII-Bd-10P04 10 0.2 1.8 11.0 125
TP816A-02Y(L)2Y-StIII-Bd-20P04 20 0.2 1.8 12.0 150
TP816A-02Y(L)2Y-StIII-Bd-30P04 30 0.2 1.8 13.5 200
TP816A-02Y(L)2Y-StIII-Bd-40P04 40 0.2 1.8 14.5 225
TP816A-02Y(L)2Y-StIII-Bd-50P04 50 0.2 1.8 15.5 275
TP816A-02Y(L)2Y-StIII-Bd-70P04 70 0.2 1.8 17.0 250
TP816A-02Y(L)2Y-StIII-Bd-100P04 100 0.2 1.8 19.5 450
TP816A-02Y(L)2Y-StIII-Bd-120P04 120 0.2 2.0 20.5 525
TP816A-02Y(L)2Y-StIII-Bd-150P04 150 0.2 2.0 22.5 625
TP816A-02Y(L)2Y-StIII-Bd-200P04 200 0.2 2.0 25.5 825
TP816A-02Y(L)2Y-StIII-Bd-250P04 250 0.2 2.0 29.0 1000
TP816A-02Y(L)2Y-StIII-Bd-300P04 300 0.2 2.0 31.0 1175
TP816A-02Y(L)2Y-StIII-Bd-350P04 350 0.2 2.2 33.0 1325
TP816A-02Y(L)2Y-StIII-Bd-400P04 400 0.2 2.2 34.5 1500
TP816A-02Y(L)2Y-StIII-Bd-500P04 500 0.2 2.2 38.5 1875
TP816A-02Y(L)2Y-StIII-Bd-600P04 600 0.2 2.2 41.5 2175
TP816A-02Y(L)2Y-StIII-Bd-700P04 700 0.2 2.6 44.0 2500
TP816A-02Y(L)2Y-StIII-Bd-800P04 800 0.2 2.6 47.5 2875
TP816A-02Y(L)2Y-StIII-Bd-1000P04 1000 0.2 3.0 52.0 3525
TP816A-02Y(L)2Y-StIII-Bd-1200P04 1200 0.2 3.0 57.5 4250
TP816A-02Y(L)2Y-StIII-Bd-1500P04 1500 0.2 3.4 63.0 5225
TP816A-02Y(L)2Y-StIII-Bd-2000P04 2000 0.2 3.8 72.5 6925
0.6mm Conductor, 1.1mm Insulated Wire
TP816A-02Y(L)2Y-StIII-Bd-6P06 6 0.25 1.8 10.3 106
TP816A-02Y(L)2Y-StIII-Bd-10P06 10 0.25 1.8 11.3 137
TP816A-02Y(L)2Y-StIII-Bd-20P06 20 0.25 1.8 14.6 221
TP816A-02Y(L)2Y-StIII-Bd-30P06 30 0.25 1.8 16.2 292
TP816A-02Y(L)2Y-StIII-Bd-40P06 40 0.25 1.8 18.0 366
TP816A-02Y(L)2Y-StIII-Bd-50P06 50 0.25 1.8 19.5 436
TP816A-02Y(L)2Y-StIII-Bd-70P06 70 0.25 2.0 22.2 580
TP816A-02Y(L)2Y-StIII-Bd-100P06 100 0.25 2.0 26.0 808
TP816A-02Y(L)2Y-StIII-Bd-120P06 120 0.25 2.2 28.0 951
TP816A-02Y(L)2Y-StIII-Bd-150P06 150 0.25 2.2 30.6 1156
TP816A-02Y(L)2Y-StIII-Bd-200P06 200 0.25 2.2 35.0 1511
TP816A-02Y(L)2Y-StIII-Bd-250P06 250 0.25 2.6 39.9 1890
TP816A-02Y(L)2Y-StIII-Bd-300P06 300 0.25 2.6 43.1 2220
TP816A-02Y(L)2Y-StIII-Bd-350P06 350 0.25 2.8 46.8 2600
TP816A-02Y(L)2Y-StIII-Bd-400P06 400 0.25 3.0 48.0 3025
TP816A-02Y(L)2Y-StIII-Bd-500P06 500 0.25 2.8 50.5 3700
TP816A-02Y(L)2Y-StIII-Bd-600P06 600 0.25 3.4 60.0 4475
TP816A-02Y(L)2Y-StIII-Bd-700P06 700 0.25 3.6 62.0 5175
TP816A-02Y(L)2Y-StIII-Bd-800P06 800 0.25 3.8 65.5 5850
TP816A-02Y(L)2Y-StIII-Bd-1000P06 1000 0.25 3.8 73.5 7300
TP816A-02Y(L)2Y-StIII-Bd-1200P06 1200 0.25 4.0 80.5 8750
0.8mm Conductor,1.4mm Insulated Wire
TP816A-02Y(L)2Y-StIII-Bd-6P08 6 0.3 1.8 12.0 141
TP816A-02Y(L)2Y-StIII-Bd-10P08 10 0.3 1.8 13.9 202
TP816A-02Y(L)2Y-StIII-Bd-20P08 20 0.3 1.8 17.1 334
TP816A-02Y(L)2Y-StIII-Bd-30P08 30 0.3 1.8 19.8 464
TP816A-02Y(L)2Y-StIII-Bd-40P08 40 0.3 2.0 22.1 590
TP816A-02Y(L)2Y-StIII-Bd-50P08 50 0.3 2.0 24.6 728
TP816A-02Y(L)2Y-StIII-Bd-70P08 70 0.3 2.0 28.1 971
TP816A-02Y(L)2Y-StIII-Bd-100P08 100 0.3 2.2 32.6 1319
TP816A-02Y(L)2Y-StIII-Bd-120P08 120 0.3 2.4 35.6 1587
TP816A-02Y(L)2Y-StIII-Bd-150P08 150 0.3 2.6 39.1 1920
TP816A-02Y(L)2Y-StIII-Bd-200P08 200 0.3 2.6 44.3 2519
TP816A-02Y(L)2Y-StIII-Bd-250P08 250 0.3 3.0 50.6 3180
TP816A-02Y(L)2Y-StIII-Bd-300P08 300 0.3 3.0 55.7 3840
TP816A-02Y(L)2Y-StIII-Bd-350P08 350 0.3 3.4 60.1 4440
TP816A-02Y(L)2Y-StIII-Bd-400P08 400 0.3 3.4 63.0 5100
TP816A-02Y(L)2Y-StIII-Bd-500P08 500 0.3 3.4 66.0 6250
TP816A-02Y(L)2Y-StIII-Bd-600P08 600 0.3 3.8 72.5 7525
TP816A-02Y(L)2Y-StIII-Bd-700P08 700 0.3 4.0 77.5 8700
TP816A-02Y(L)2Y-StIII-Bd-800P08 800 0.3 4.2 83.0 9950

  Cellular PE Insulated and LAP Sheathed Jelly Filled Cable to DIN VDE 0816
  VDE CODE: A-02YF(L)2Y …x2x0.4/0.6/0.8 StIII Bd

Cable Code Number of Pairs Nominal Insulation
Thickness
mm		 Nominal Sheath
Thickness
mm		 Nominal Overall
Diameter
mm		 Nominal Weight
kg/km
0.4mm Conductor, 0.92mm Insulated Wire
TP816A-02YF(L)2Y-StIII-Bd-6P04 6 0.26 1.8 9.6 89
TP816A-02YF(L)2Y-StIII-Bd-10P04 10 0.26 1.8 11.3 133
TP816A-02YF(L)2Y-StIII-Bd-20P04 20 0.26 1.8 13.3 182
TP816A-02YF(L)2Y-StIII-Bd-30P04 30 0.26 1.8 14.9 240
TP816A-02YF(L)2Y-StIII-Bd-40P04 40 0.26 1.8 16.8 303
TP816A-02YF(L)2Y-StIII-Bd-50P04 50 0.26 1.8 17.6 350
TP816A-02YF(L)2Y-StIII-Bd-70P04 70 0.26 1.8 19.9 455
TP816A-02YF(L)2Y-StIII-Bd-100P04 100 0.26 1.8 21.8 568
TP816A-02YF(L)2Y-StIII-Bd-120P04 120 0.26 2.0 27.1 743
TP816A-02YF(L)2Y-StIII-Bd-150P04 150 0.26 2.0 28.0 906
TP816A-02YF(L)2Y-StIII-Bd-200P04 200 0.26 2.0 31.4 1130
TP816A-02YF(L)2Y-StIII-Bd-250P04 250 0.26 2.2 34.1 1340
TP816A-02YF(L)2Y-StIII-Bd-300P04 300 0.26 2.2 38.3 1690
TP816A-02YF(L)2Y-StIII-Bd-350P04 350 0.26 2.2 40.8 1950
TP816A-02YF(L)2Y-StIII-Bd-400P04 400 0.26 2.2 43.1 2170
TP816A-02YF(L)2Y-StIII-Bd-500P04 500 0.26 2.4 48.2 2720
TP816A-02YF(L)2Y-StIII-Bd-600P04 600 0.26 2.6 50.2 3140
TP816A-02YF(L)2Y-StIII-Bd-700P04 700 0.26 2.8 53.7 3620
TP816A-02YF(L)2Y-StIII-Bd-800P04 800 0.26 3.0 57.7 4160
TP816A-02YF(L)2Y-StIII-Bd-1000P04 1000 0.26 3.0 64.3 5170
TP816A-02YF(L)2Y-StIII-Bd-1200P04 1200 0.26 3.4 70.3 6050
TP816A-02YF(L)2Y-StIII-Bd-1500P04 1500 0.26 3.8 72.5 6900
TP816A-02YF(L)2Y-StIII-Bd-2000P04 2000 0.26 4.0 80.9 10100
0.6mm Conductor, 1.32mm Insulated Wire
TP816A-02YF(L)2Y-StIII-Bd-6P06 6 0.36 1.8 11.2 130
TP816A-02YF(L)2Y-StIII-Bd-10P06 10 0.36 1.8 12.8 180
TP816A-02YF(L)2Y-StIII-Bd-20P06 20 0.36 1.8 16.8 305
TP816A-02YF(L)2Y-StIII-Bd-30P06 30 0.36 1.8 18.6 410
TP816A-02YF(L)2Y-StIII-Bd-40P06 40 0.36 1.8 19.4 480
TP816A-02YF(L)2Y-StIII-Bd-50P06 50 0.36 1.8 22.7 625
TP816A-02YF(L)2Y-StIII-Bd-70P06 70 0.36 2.0 25.5 820
TP816A-02YF(L)2Y-StIII-Bd-100P06 100 0.36 2.0 29.6 1120
TP816A-02YF(L)2Y-StIII-Bd-120P06 120 0.36 2.2 33.0 1310
TP816A-02YF(L)2Y-StIII-Bd-150P06 150 0.36 2.2 37.9 1740
TP816A-02YF(L)2Y-StIII-Bd-200P06 200 0.36 2.2 42.6 2240
TP816A-02YF(L)2Y-StIII-Bd-250P06 250 0.36 2.6 47.1 2780
TP816A-02YF(L)2Y-StIII-Bd-300P06 300 0.36 2.6 51.3 3390
TP816A-02YF(L)2Y-StIII-Bd-350P06 350 0.36 2.8 54.3 3760
TP816A-02YF(L)2Y-StIII-Bd-400P06 400 0.36 3.0 58.8 4340
TP816A-02YF(L)2Y-StIII-Bd-500P06 500 0.36 3.2 64.7 5330
TP816A-02YF(L)2Y-StIII-Bd-600P06 600 0.36 3.4 68.3 6180
TP816A-02YF(L)2Y-StIII-Bd-750P06 750 0.36 3.6 73.1 7140
TP816A-02YF(L)2Y-StIII-Bd-800P06 800 0.36 3.8 78.3 8170
TP816A-02YF(L)2Y-StIII-Bd-1000P06 1000 0.36 3.8 86.3 10030
TP816A-02YF(L)2Y-StIII-Bd-1200P06 1200 0.36 4.0 92.3 11030
0.8mm Conductor,1.68mm Insulated Wire
TP816A-02YF(L)2Y-StIII-Bd-6P08 6 0.44 1.8 12.9 180
TP816A-02YF(L)2Y-StIII-Bd-10P08 10 0.44 1.8 14.9 260
TP816A-02YF(L)2Y-StIII-Bd-20P08 20 0.44 1.8 19.6 460
TP816A-02YF(L)2Y-StIII-Bd-30P08 30 0.44 1.8 22.2 620
TP816A-02YF(L)2Y-StIII-Bd-40P08 40 0.44 2.0 23.3 745
TP816A-02YF(L)2Y-StIII-Bd-50P08 50 0.44 2.0 27.8 1000
TP816A-02YF(L)2Y-StIII-Bd-70P08 70 0.44 2.0 30.9 1290
TP816A-02YF(L)2Y-StIII-Bd-100P08 100 0.44 2.2 36.4 1830
TP816A-02YF(L)2Y-StIII-Bd-120P08 120 0.44 2.4 38.6 2100
TP816A-02YF(L)2Y-StIII-Bd-150P08 150 0.44 2.6 36.8 2835
TP816A-02YF(L)2Y-StIII-Bd-200P08 200 0.44 2.6 52.8 3675
TP816A-02YF(L)2Y-StIII-Bd-250P08 250 0.44 3.0 58.4 4555
TP816A-02YF(L)2Y-StIII-Bd-300P08 300 0.44 3.0 63.1 5370
TP816A-02YF(L)2Y-StIII-Bd-350P08 350 0.44 3.2 68.3 6280
TP816A-02YF(L)2Y-StIII-Bd-400P08 400 0.44 3.4 72.4 7105
TP816A-02YF(L)2Y-StIII-Bd-500P08 500 0.44 3.4 80.6 8830
TP816A-02YF(L)2Y-StIII-Bd-600P08 600 0.44 3.8 87.3 10490
TP816A-02YF(L)2Y-StIII-Bd-700P08 700 0.44 4.0 102.5 11200
TP816A-02YF(L)2Y-StIII-Bd-800P08 800 0.44 4.0 108.0 11950
