Solid PE Insulated & LAP Sheathed Air Core/Jelly Filled Cables to DIN VDE 0816

Applications
  The cables are designed for use as connection between central offices. The cables are suitable for installation in ducts and aerial installation with integral suspension strand. Jelly filled option is for subscriber's cables installed nderground or along the edge of pavement. An armoured option is offered for direct burial installations.
Standards
  • DIN VDE 0816

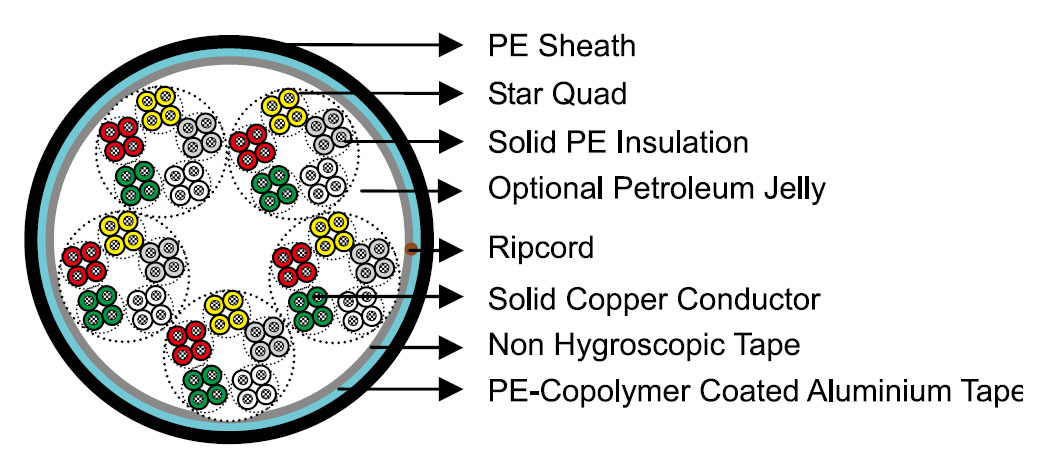

Construction
  Conductors: Solid annealed bare copper 0.4/0.6/0.8mm, as per class 1 of DIN VDE 0295/BS 6360/IEC 60228.
  Insulation: Solid polyethylene 2YI2 type as per DIN VDE 0207-2.
  Twisted Pairs: Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk.
  Cabling Element: Star Quads.
  Cable Core Assembly: 4 Cores are twisted into star quad. 5 star quads are stranded into a basic unit. 5 or 10 basic units each are stranded into one main unit. The star quads are grouped in units and stranded in layers to form the cable core.Standard make up is per DIN VDE 0816 in the Cable Make Up Diagram.
  Core Wrapping: One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap. These tapes furnish thermal, mechanical as well as high dielectric protection between shielding and individual conductors.
  Moisture Barrier: A layer of aluminium tape (0.2mm) coated with PE-copolymer on one or both sides and applied longitudinally with overlap over the cable core to provide electrical shielding coverage and ensures a barrier against water vapor.
  Sheath: Black low or medium density polyethylene 2YM2 type as per DIN VDE 0207-3, being able to withstand exposure to sunlight, temperature variations, ground chemicals and other environmental contaminants.
  Ripcord: Ripcord may be provided for slitting the sheath longitudinally to facilitate its removal.
  Spare Pairs (optional): Spare pairs may be provided for large pair cables.
  Continuity Wire (optional): Tinned copper drain wire may be longitudinally laid to ensure electrical continuity of the screen.
Optional Construction
  Jelly Filled Cable: The cable core interstices are filled with petroleum jelly to avoid longitudinal water penetration within the cable. The water resistant filling compound is applied to the air space between non-hygroscopic tape and shield,shield and sheath within the cable core.

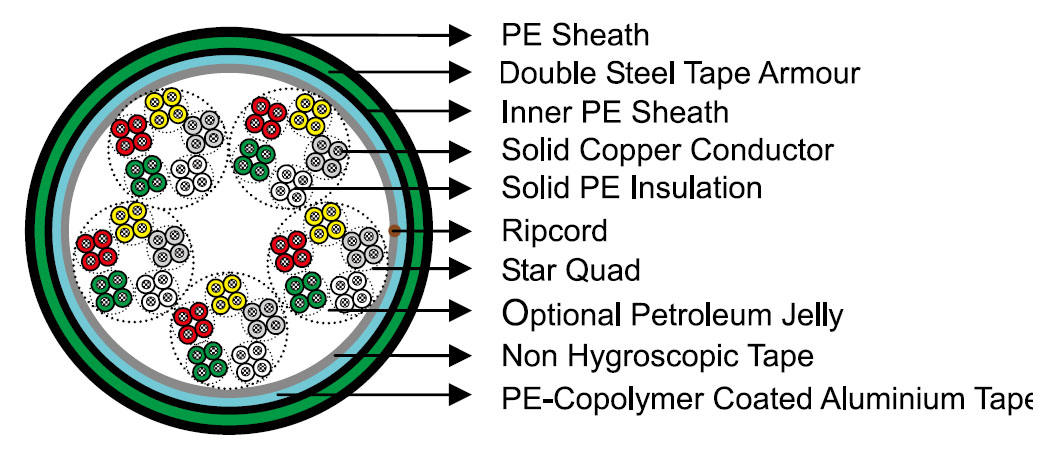

  Armoured Cable: Corrugated steel tape armour is applied over an optional inner polyethylene sheath with an overlap. An outer polyethylene sheath is applied over the armour.

Type Codes
  A - Outdoor Cable
  2Y - Polyethylene (PE) insulation
  F - Continuous core filling
  (L)2Y - Laminated sheath(copolymer-coated aluminium tape laminated to PE outer sheath)
  SR - Corrugated steel tape
  b - Armouring
  T - Messenger of galvanized steel wires
  StIII - Star quad in local cables.
  Bd - Unit-type stranding
Electrical properties

Nominal Conductor Diameter mm 0.4 0.6 0.8
Conductor Gauge Size AWG 26 - 20
Conductor Size mm2 0.126 0.283 0.5
Maximum Average Conductor Resistance @20°C Ω/km 143 63 34.6
Minimum Insulation Resistance @500V DC MΩ.km 5000 5000 5000
Maximum Average Mutual Capacitance @800Hz (for 95% cases) nF/km 48 50 53
Maximum Individual Mutual Capacitance @800Hz (for 100% cases) nF/km 50 52 55
Maximum Individual Capacitance Unbalance @800Hz pair-to-pair
     K1 (100% of all values) pF/500m 980 980 980
     K1 (95% of all values) pF/500m 420 420 420
     K9-K12 (100% of all values) pF/500m 800 800 800
     K9-K12 (90% of all values) pF/500m 200 200 200
Maximum Conductor Loop Resistance @20°C Ω/km 300 130 73.2
Impedance @0.8KHz Ω 994 665 500
Maximum Average Attenuation @0.8KHz dB/km 1.49 1.04 0.78
Dielectric Strength 50Hz
     Conductor to Conductor (2mins) V AC 500 500 500
     Conductor to Screen (2mins) V AC 2000 2000 2000
Maximum Operating Voltage Peak Value V 150 220 220
Nominal Insulation Thickness  (Air Core) mm 0.20 0.25 0.3
                                                         (Jelly Filled) mm 0.26 0.36 0.44
Nominal Insulated Conductor Diameter (Air Core) mm 0.8 1.1 1.4
                                                                         (Jelly Filled) mm 0.92 1.32 1.68
Mechanical and thermal properties
  Temperature range during operation (fixed state): -30°C – +70°C
  Temperature range during installation (mobile state): -20°C – +50°C
  Minimum bending radius: 10 x Overall Diameter (unarmoured cables);15 x Overall Diameter (armoured cables)
Colour code

Quads
The single core is identified by black ring markings:
Side Circuit 1 a-wire without marking
  b-wire 1 mark distance 17mm
Side Circuit 2 a-wire 2 marks distance 34mm
  b-wire 2 marks distance 17mm
Subunits
Basic colours for the wire insulation of the 5 star quads of a basic unit:
Quad 1 Red     Quad 2 Green
Quad 3 Grey     Quad 4 Yellow    Quad 5 White
The tracer units are coded with a red helix, all other units by a white binder.
Dimensions and weight
  Solid PE Insulated and LAP Sheathed Air Core Cable to DIN VDE 0816
  VDE CODE: A-2Y(L)2Y…x2x0.4/0.6/0.8 StIII Bd

Cable Code Number of
Pairs		 Nominal Insulation
Thickness
mm		 Nominal Sheath
Thickness
mm		 Nominal Overall
Diameter
mm		 Nominal
Weight
kg/km
0.4mm Conductor, 0.8mm Insulated Wire
TP816A-2Y(L)2Y-StIII-Bd-6P04 6 0.2 1.8 10.0 85
TP816A-2Y(L)2Y-StIII-Bd-10P04 10 0.2 1.8 11.0 125
TP816A-2Y(L)2Y-StIII-Bd-20P04 20 0.2 1.8 12.0 150
TP816A-2Y(L)2Y-StIII-Bd-30P04 30 0.2 1.8 13.5 200
TP816A-2Y(L)2Y-StIII-Bd-40P04 40 0.2 1.8 14.5 225
TP816A-2Y(L)2Y-StIII-Bd-50P04 50 0.2 1.8 15.5 275
TP816A-2Y(L)2Y-StIII-Bd-70P04 70 0.2 1.8 17.0 250
TP816A-2Y(L)2Y-StIII-Bd-100P04 100 0.2 1.8 19.5 450
TP816A-2Y(L)2Y-StIII-Bd-120P04 120 0.2 2.0 20.5 525
TP816A-2Y(L)2Y-StIII-Bd-150P04 150 0.2 2.0 22.5 625
TP816A-2Y(L)2Y-StIII-Bd-200P04 200 0.2 2.0 25.5 825
TP816A-2Y(L)2Y-StIII-Bd-250P04 250 0.2 2.0 29.0 1000
TP816A-2Y(L)2Y-StIII-Bd-300P04 300 0.2 2.0 31.0 1175
TP816A-2Y(L)2Y-StIII-Bd-350P04 350 0.2 2.2 33.0 1325
TP816A-2Y(L)2Y-StIII-Bd-400P04 400 0.2 2.2 34.5 1500
TP816A-2Y(L)2Y-StIII-Bd-500P04 500 0.2 2.2 38.5 1875
TP816A-2Y(L)2Y-StIII-Bd-600P04 600 0.2 2.2 41.5 2175
TP816A-2Y(L)2Y-StIII-Bd-700P04 700 0.2 2.6 44.0 2500
TP816A-2Y(L)2Y-StIII-Bd-800P04 800 0.2 2.6 47.5 2875
TP816A-2Y(L)2Y-StIII-Bd-1000P04 1000 0.2 3.0 52.0 3525
TP816A-2Y(L)2Y-StIII-Bd-1200P04 1200 0.2 3.0 57.5 4250
TP816A-2Y(L)2Y-StIII-Bd-1500P04 1500 0.2 3.4 63.0 5225
TP816A-2Y(L)2Y-StIII-Bd-2000P04 2000 0.2 3.8 72.5 6925
0.6mm Conductor, 1.1mm Insulated Wire
TP816A-2Y(L)2Y-StIII-Bd-6P06 6 0.25 1.8 11.5 125
TP816A-2Y(L)2Y-StIII-Bd-10P06 10 0.25 1.8 13.0 157
TP816A-2Y(L)2Y-StIII-Bd-20P06 20 0.25 1.8 14.5 250
TP816A-2Y(L)2Y-StIII-Bd-30P06 30 0.25 1.8 16.5 325
TP816A-2Y(L)2Y-StIII-Bd-40P06 40 0.25 1.8 18.0 400
TP816A-2Y(L)2Y-StIII-Bd-50P06 50 0.25 1.8 19.5 475
TP816A-2Y(L)2Y-StIII-Bd-70P06 70 0.25 2.0 22.0 625
TP816A-2Y(L)2Y-StIII-Bd-100P06 100 0.25 2.0 26.0 850
TP816A-2Y(L)2Y-StIII-Bd-120P06 120 0.25 2.2 27.5 1000
TP816A-2Y(L)2Y-StIII-Bd-150P06 150 0.25 2.2 30.0 1225
TP816A-2Y(L)2Y-StIII-Bd-200P06 200 0.25 2.2 33.5 1575
TP816A-2Y(L)2Y-StIII-Bd-250P06 250 0.25 2.6 37.5 1925
TP816A-2Y(L)2Y-StIII-Bd-300P06 300 0.25 2.6 40.0 2275
TP816A-2Y(L)2Y-StIII-Bd-350P06 350 0.25 2.8 43.0 2625
TP816A-2Y(L)2Y-StIII-Bd-400P06 400 0.25 2.8 46.0 3025
TP816A-2Y(L)2Y-StIII-Bd-500P06 500 0.25 3.0 50.5 3700
TP816A-2Y(L)2Y-StIII-Bd-600P06 600 0.25 3.4 60.0 4475
TP816A-2Y(L)2Y-StIII-Bd-700P06 700 0.25 3.6 62.0 5175
TP816A-2Y(L)2Y-StIII-Bd-800P06 800 0.25 3.8 65.5 5850
TP816A-2Y(L)2Y-StIII-Bd-1000P06 1000 0.25 3.8 73.5 7300
TP816A-2Y(L)2Y-StIII-Bd-1200P06  1200 0.25 4.0 80.5 8750
0.8mm Conductor,1.4mm Insulated Wire
TP816A-2Y(L)2Y-StIII-Bd-6P08 6 0.3 1.8 13.0 175
TP816A-2Y(L)2Y-StIII-Bd-10P08 10 0.3 1.8 15.0 225
TP816A-2Y(L)2Y-StIII-Bd-20P08 20 0.3 1.8 17.0 350
TP816A-2Y(L)2Y-StIII-Bd-30P08 30 0.3 1.8 19.5 475
TP816A-2Y(L)2Y-StIII-Bd-40P08 40 0.3 2.0 21.5 600
TP816A-2Y(L)2Y-StIII-Bd-50P08 50 0.3 2.0 23.5 750
TP816A-2Y(L)2Y-StIII-Bd-70P08 70 0.3 2.0 27.5 1000
TP816A-2Y(L)2Y-StIII-Bd-100P08 100 0.3 2.2 31.5 1375
TP816A-2Y(L)2Y-StIII-Bd-120P08 120 0.3 2.4 34.0 1625
TP816A-2Y(L)2Y-StIII-Bd-150P08 150 0.3 2.6 37.5 2000
TP816A-2Y(L)2Y-StIII-Bd-200P08 200 0.3 2.6 42.0 2600
TP816A-2Y(L)2Y-StIII-Bd-250P08 250 0.3 3.0 48.0 3250
TP816A-2Y(L)2Y-StIII-Bd-300P08 300 0.3 3.0 52.0 3825
TP816A-2Y(L)2Y-StIII-Bd-350P08 350 0.3 3.4 55.5 4425
TP816A-2Y(L)2Y-StIII-Bd-400P08 400 0.3 3.4 60.0 5100
TP816A-2Y(L)2Y-StIII-Bd-500P08 500 0.3 3.4 66.0 6250
TP816A-2Y(L)2Y-StIII-Bd-600P08 600 0.3 3.8 72.5 7525
TP816A-2Y(L)2Y-StIII-Bd-700P08 700 0.3 4.0 77.5 8700
TP816A-2Y(L)2Y-StIII-Bd-800P08 800 0.3 4.2 83.0 9950

  Solid PE Insulated and LAP Sheathed Jelly Filled Cable to DIN VDE 0816
  VDE CODE: A-2YF(L)2Y…x2x0.4/0.6/0.8 StIII Bd

Cable Code Number of
Pairs		 Nominal Insulation
Thickness
mm		 Nominal Sheath
Thickness
mm		 Nominal Overall
Diameter
mm		 Nominal
Weight
kg/km
0.4mm Conductor, 0.92mm Insulated Wire
TP816A-2YF(L)2Y-StIII-Bd-6P04 6 0.26 1.8 10.0 85
TP816A-2YF(L)2Y-StIII-Bd-10P04 10 0.26 1.8 11.0 125
TP816A-2YF(L)2Y-StIII-Bd-20P04 20 0.26 1.8 12.0 150
TP816A-2YF(L)2Y-StIII-Bd-30P04 30 0.26 1.8 13.5 200
TP816A-2YF(L)2Y-StIII-Bd-40P04 40 0.26 1.8 14.5 225
TP816A-2YF(L)2Y-StIII-Bd-50P04 50 0.26 1.8 15.5 250
TP816A-2YF(L)2Y-StIII-Bd-70P04 70 0.26 1.8 17.0 275
TP816A-2YF(L)2Y-StIII-Bd-100P04 100 0.26 1.8 19.5 450
TP816A-2YF(L)2Y-StIII-Bd-120P04 120 0.26 2.0 20.5 525
TP816A-2YF(L)2Y-StIII-Bd-150P04 150 0.26 2.0 22.5 625
TP816A-2YF(L)2Y-StIII-Bd-200P04 200 0.26 2.0 25.5 825
TP816A-2YF(L)2Y-StIII-Bd-250P04 250 0.26 2.2 29.0 1000
TP816A-2YF(L)2Y-StIII-Bd-300P04 300 0.26 2.2 31.0 1175
TP816A-2YF(L)2Y-StIII-Bd-350P04 350 0.26 2.2 33.0 1325
TP816A-2YF(L)2Y-StIII-Bd-400P04 400 0.26 2.2 34.5 1500
TP816A-2YF(L)2Y-StIII-Bd-500P04 500 0.26 2.4 38.5 1875
TP816A-2YF(L)2Y-StIII-Bd-600P04 600 0.26 2.6 41.5 2175
TP816A-2YF(L)2Y-StIII-Bd-700P04 700 0.26 2.8 44.0 2500
TP816A-2YF(L)2Y-StIII-Bd-800P04 800 0.26 3.0 47.5 2875
TP816A-2YF(L)2Y-StIII-Bd-1000P04 1000 0.26 3.0 52.0 3525
TP816A-2YF(L)2Y-StIII-Bd-1200P04 1200 0.26 3.4 57.5 4250
TP816A-2YF(L)2Y-StIII-Bd-1500P04 1500 0.26 3.8 63.0 5225
TP816A-2YF(L)2Y-StIII-Bd-2000P04  2000 0.26 4.0 72.5 6925
0.6mm Conductor, 1.32mm Insulated Wire
TP816A-2YF(L)2Y-StIII-Bd-6P06 6 0.36 1.8 11.5 125
TP816A-2YF(L)2Y-StIII-Bd-10P06 10 0.36 1.8 13.0 175
TP816A-2YF(L)2Y-StIII-Bd-20P06 20 0.36 1.8 14.5 250
TP816A-2YF(L)2Y-StIII-Bd-30P06 30 0.36 1.8 16.5 325
TP816A-2YF(L)2Y-StIII-Bd-40P06 40 0.36 1.8 18.0 400
TP816A-2YF(L)2Y-StIII-Bd-50P06 50 0.36 1.8 19.5 475
TP816A-2YF(L)2Y-StIII-Bd-70P06 70 0.36 2.0 22.0 625
TP816A-2YF(L)2Y-StIII-Bd-100P06 100 0.36 2.0 26.0 850
TP816A-2YF(L)2Y-StIII-Bd-120P06 120 0.36 2.2 27.5 1000
TP816A-2YF(L)2Y-StIII-Bd-150P06 150 0.36 2.2 30.0 1225
TP816A-2YF(L)2Y-StIII-Bd-200P06 200 0.36 2.2 33.5 1575
TP816A-2YF(L)2Y-StIII-Bd-250P06 250 0.36 2.6 37.5 1925
TP816A-2YF(L)2Y-StIII-Bd-300P06 300 0.36 2.6 40.0 2275
TP816A-2YF(L)2Y-StIII-Bd-350P06 350 0.36 2.8 43.0 2625
TP816A-2YF(L)2Y-StIII-Bd-400P06 400 0.36 3.0 46.0 3025
TP816A-2YF(L)2Y-StIII-Bd-500P06 500 0.36 3.2 50.5 3700
TP816A-2YF(L)2Y-StIII-Bd-600P06 600 0.36 3.4 60.0 4475
TP816A-2YF(L)2Y-StIII-Bd-750P06 750 0.36 3.6 62.0 5175
TP816A-2YF(L)2Y-StIII-Bd-800P06 800 0.36 3.8 65.5 5850
TP816A-2YF(L)2Y-StIII-Bd-1000P06 1000 0.36 3.8 73.5 7300
TP816A-2YF(L)2Y-StIII-Bd-1200P06 1200 0.36 4.0 80.5 8750
0.8mm Conductor,1.68mm Insulated Wire
TP816A-2YF(L)2Y-StIII-Bd-6P08 6 0.44 1.8 13.0 175
TP816A-2YF(L)2Y-StIII-Bd-10P08 10 0.44 1.8 15.0 225
TP816A-2YF(L)2Y-StIII-Bd-20P08 20 0.44 1.8 17.0 350
TP816A-2YF(L)2Y-StIII-Bd-30P08 30 0.44 1.8 19.5 475
TP816A-2YF(L)2Y-StIII-Bd-40P08 40 0.44 2.0 21.5 600
TP816A-2YF(L)2Y-StIII-Bd-50P08 50 0.44 2.0 23.5 750
TP816A-2YF(L)2Y-StIII-Bd-70P08 70 0.44 2.0 27.5 1000
TP816A-2YF(L)2Y-StIII-Bd-100P08 100 0.44 2.2 31.5 1375
TP816A-2YF(L)2Y-StIII-Bd-120P08 120 0.44 2.4 34.0 1625
TP816A-2YF(L)2Y-StIII-Bd-150P08 150 0.44 2.6 37.5 2000
TP816A-2YF(L)2Y-StIII-Bd-200P08 200 0.44 2.6 42.0 2600
TP816A-2YF(L)2Y-StIII-Bd-250P08 250 0.44 3.0 48.0 3250
TP816A-2YF(L)2Y-StIII-Bd-300P08 300 0.44 3.0 52.0 3825
TP816A-2YF(L)2Y-StIII-Bd-350P08 350 0.44 3.2 55.5 4425
TP816A-2YF(L)2Y-StIII-Bd-400P08 400 0.44 3.4 60.0 5100
TP816A-2YF(L)2Y-StIII-Bd-500P08 500 0.44 3.4 66.0 6250
TP816A-2YF(L)2Y-StIII-Bd-600P08 600 0.44 3.8 72.5 7525
TP816A-2YF(L)2Y-StIII-Bd-700P08 700 0.44 4.0 77.5 8700
TP816A-2YF(L)2Y-StIII-Bd-800P08 800 0.44 4.0 83.0 9950
