Foam Skin Insulated & LAP Sheathed Jelly Filled Cables to IEC 60708 |
|
| |
| Applications |
|
| |
The cables are designed for use in access or trunk networks, from telephone exchange to subscriber area. The cables are suitable for installation in ducts, direct burial in the ground and also for aerial installation with integral suspension strand.Jelly filled option is for subscriber's cables installed underground or along the edge of pavement. An armoured option is offered for direct burial installations. A figure-8 self support option is offered for aerial installation. |
| Standards |
| |
• IEC 60708 |

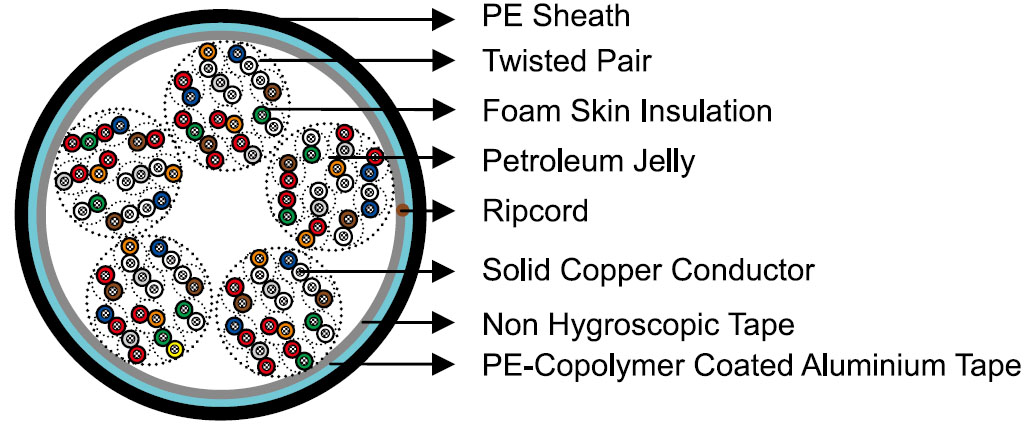

| Construction |
| |
Conductors: Solid annealed bare copper, 0.4/0.5/0.6/0.63/0.8/0.9 mm as per class 1 of IEC 60228 & ASTM B-3. |
|
| |
Insulation: Foam Skin which is a composite polyethylene insulation made of an inner cellular layer and an outer solid skin, as per IEC 60708/BS EN 50290-2-23/BS 6234/ ASTM D 1248/NFC 32-060/VDE 0207. |
|
| |
Twisted Pairs: Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk. |
| |
Cabling Element: Twisted Pairs. |
| |
Cable Core Assembly:Cables with 100 pairs or less are composed of 10-pair sub-units; cables with over 100 pairs are composed of 50 or 100-pair units. Any extra pairs form a separate unit. Units are identified by colour coded binders. Standard construction is per IEC 60708 given in Cable Make Up Diagram. |
| |
Core Wrapping: One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap. These tapes furnish thermal, mechanical as well as high dielectric protection between shielding and individual conductors. |
|
| |
Moisture Barrier: A layer of aluminium tape (0.15mm) coated with PE-copolymer on one or both sides is applied longitudinally with overlap over the cable core to provide 100% electrical shielding coverage and ensure a barrier against water vapor. In cables with more than 200 pairs, the aluminum tape may be corrugated for improved cable flexibility. |
|
| |
Filling(optional): The cable core interstices are filled with petroleum jelly to avoid longitudinal water penetration within the cable. The water resistant filling compound is applied to the air space between non-hygroscopic tape and shield,shield and sheath within the cable core. |
| |
Sheath: Black low density polyethylene as per BS 6234/IEC 60708/ASTM D 1248, being able to withstand exposure to sunlight, temperature variations, ground chemicals and other environmental contaminants. |
| |
Ripcord: Ripcord may be provided for slitting the sheath longitudinally to facilitate its removal. |
| |
Spare Pairs (optional): Spare pairs may be incorporated for 200 and larger pair cables. |
|
| |
Continuity Wire (optional): One tinned copper drain wire may be longitudinally laid to ensure electrical continuity of the screen. |
|
| Optional Construction |
| |
Armoured Cable: Steel wire armour or corrugated steel tape armour is applied over an optional inner polyethylene sheath. For steel tape version, the 0.2/0.5mm thick steel tape is coated with a copolymer and applied with an overlap. An outer polyethylene sheath is applied over the armour. |
|
| |

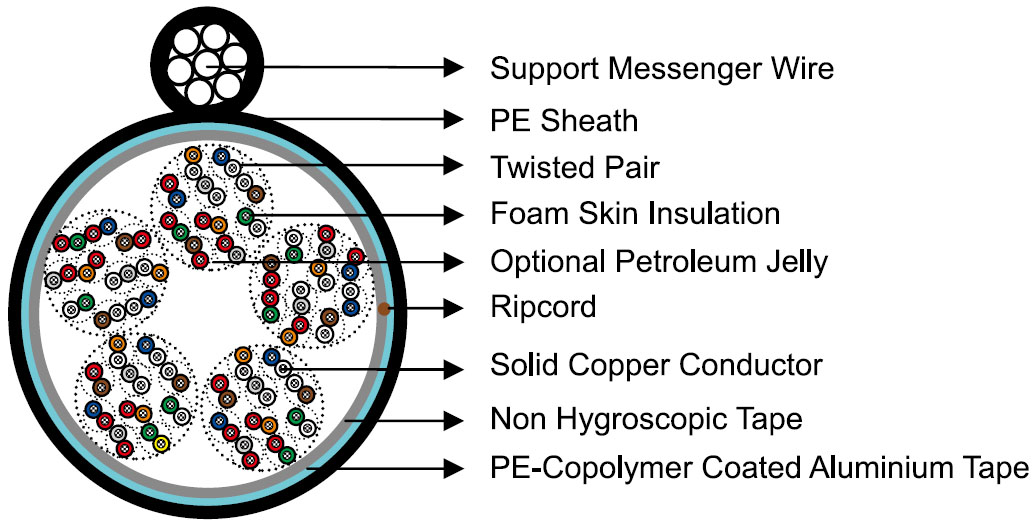

Self-Support Cables: A 7-strand galvanized steel strand is used as support wire. Black polyethylene sheath covers both core and support wire in a figure-8 construction. |
|
| Electrical properties |
|
| |
| Nominal Conductor Diameter |
mm |
0.4 |
0.5 |
0.6 |
0.63 |
0.8 |
0.9 |
| Conductor Gauge Size |
AWG |
26 |
24 |
- |
22 |
20 |
19 |
| Conductor Size |
mm2 |
0.126 |
0.196 |
0.283 |
0.312 |
0.5 |
0.636 |
| Maximum Average Conductor Resistance @20°C |
Ω/km |
143 |
91 |
63 |
58 |
34.6 |
28 |
| Minimum Insulation Resistance @500V DC |
MΩ.km |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
| Maximum Average Mutual Capacitance @800Hz |
nF/km |
53 |
53 |
56 |
56 |
59 |
59 |
Maximum Individual Mutual Capacitance @800Hz
(for 99% cases) |
nF/km |
60 |
60 |
60 |
60 |
64 |
64 |
Maximum Individual Capacitance Unbalance
@800Hz pair-to-pair |
pF/500m |
250 |
250 |
250 |
250 |
160 |
160 |
Maximum Individual Capacitance Unbalance
@800Hz pair-to-pair ( for 95% cases) |
pF/500m |
150 |
150 |
150 |
150 |
100 |
100 |
Maximum Individual Capacitance Unbalance
@800Hz pair-to-ground |
pF/500m |
1700 |
1700 |
1700 |
1700 |
1700 |
1700 |
Maximum Individual Capacitance Unbalance
@800Hz pair-to-ground ( for 95% cases) |
pF/500m |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
| Maximum Conductor Loop Resistance @20°C |
Ω/km |
300 |
192 |
130 |
114 |
73 |
60 |
| Impedance @1KHz |
Ω |
994 |
796 |
665 |
660 |
500 |
445 |
| Impedance @100KHz |
Ω |
147 |
134 |
127 |
125 |
124 |
122 |
| Impedance @512KHz |
Ω |
120 |
118 |
117.5 |
117 |
116.5 |
116 |
| Impedance @1MHz |
Ω |
117 |
115 |
114.5 |
114 |
113.5 |
113 |
| Maximum Average Attenuation @0.8KHz |
dB/km |
1.64 |
1.30 |
1.1 |
1.04 |
0.9 |
0.74 |
| Maximum Average Attenuation @1KHz |
dB/km |
1.68 |
1.35 |
1.14 |
1.08 |
0.93 |
0.76 |
| Maximum Average Attenuation @3KHz |
dB/km |
3.18 |
2.52 |
2.3 |
2.01 |
1.74 |
1.42 |
| Maximum Average Attenuation @150KHz |
dB/km |
11.4 |
8.3 |
7.2 |
6.2 |
5.7 |
4.4 |
| Maximum Average Attenuation @772KHz |
dB/km |
24.3 |
19.4 |
17.4 |
15.4 |
13.1 |
10.8 |
| Maximum Average Attenuation @1000KHz |
dB/km |
27.1 |
21.4 |
18.5 |
17.5 |
13.7 |
12.8 |
| Dielectric Strength |
|
|
|
|
|
|
|
| Conductor to Conductor (1min) |
V DC |
500 |
500 |
500 |
500 |
500 |
500 |
| Conductor to Screen (1min) |
V DC |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
| Nominal Insulation Thickness |
mm |
0.175 |
0.20 |
0.25 |
0.26 |
0.3 |
0.3 |
| Nominal Insulated Conductor Diameter |
mm |
0.75 |
0.90 |
1.1 |
1.15 |
1.4 |
1.5 |
|
| Mechanical and thermal properties |
| |
Temperature range during operation (fixed state) : -30°C – +70°C |
| |
Temperature range during installation (mobile state) : -20°C – +50°C |
| |
Minimum bending radius : 10 x Overall Diameter (unarmoured cables) ; 15 x Overall Diameter (armoured cables) |
| Colour code |
| |
Standard colour code is per IEC 60708 given in Colour Code Chart |
|
| Dimensions and weight |
| |
Foam Skin Insulated and LAP Sheathed Jelly Filled Cable to IEC 60708 |
| |
| Cable Code |
Number of Pairs |
Nominal Sheath
Thickness
mm |
Nominal Overall
Diameter
mm |
Nominal Weight
kg/km |
| 0.4mm Conductor, 0.75mm Insulated Wire |
| TP708-02YSF(L)2Y-10P04 |
10 |
1.5 |
9.0 |
82 |
| TP708-02YSF(L)2Y-20P04 |
20 |
1.5 |
10.0 |
120 |
| TP708-02YSF(L)2Y-30P04 |
30 |
1.5 |
11.0 |
161 |
| TP708-02YSF(L)2Y-50P04 |
50 |
1.5 |
14.0 |
239 |
| TP708-02YSF(L)2Y-70P04 |
70 |
1.5 |
15.0 |
315 |
| TP708-02YSF(L)2Y-100P04 |
100 |
1.5 |
18.0 |
434 |
| TP708-02YSF(L)2Y-150P04 |
150 |
1.5 |
21.0 |
630 |
| TP708-02YSF(L)2Y-200P04 |
200 |
1.8 |
24.0 |
824 |
| TP708-02YSF(L)2Y-300P04 |
300 |
1.8 |
29.0 |
1195 |
| TP708-02YSF(L)2Y-400P04 |
400 |
1.8 |
32.0 |
1556 |
| TP708-02YSF(L)2Y-500P04 |
500 |
2.0 |
36.0 |
1921 |
| TP708-02YSF(L)2Y-600P04 |
600 |
2.0 |
39.0 |
2282 |
| TP708-02YSF(L)2Y-800P04 |
800 |
2.5 |
44.0 |
2987 |
| TP708-02YSF(L)2Y-900P04 |
900 |
2.5 |
46.0 |
3364 |
| TP708-02YSF(L)2Y-1000P04 |
1000 |
2.5 |
49.0 |
3712 |
| TP708-02YSF(L)2Y-1200P04 |
1200 |
2.8 |
53.0 |
4411 |
| TP708-02YSF(L)2Y-1500P04 |
1500 |
2.8 |
59.0 |
5483 |
| TP708-02YSF(L)2Y-1800P04 |
1800 |
3.2 |
64.0 |
6567 |
| TP708-02YSF(L)2Y-2100P04 |
2100 |
3.2 |
69.0 |
7626 |
| TP708-02YSF(L)2Y-2400P04 |
2400 |
3.5 |
73.0 |
8663 |
| TP708-02YSF(L)2Y-2700P04 |
2700 |
3.5 |
77.0 |
9697 |
| TP708-02YSF(L)2Y-3000P04 |
3000 |
3.5 |
81.0 |
10729 |
| 0.5mm Conductor, 0.9mm Insulated Wire |
| TP708-02YSF(L)2Y-10P05 |
10 |
1.5 |
10 |
108 |
| TP708-02YSF(L)2Y-20P05 |
20 |
1.5 |
12 |
165 |
| TP708-02YSF(L)2Y-30P05 |
30 |
1.5 |
13 |
226 |
| TP708-02YSF(L)2Y-50P05 |
50 |
1.5 |
16 |
344 |
| TP708-02YSF(L)2Y-70P05 |
70 |
1.5 |
18 |
458 |
| TP708-02YSF(L)2Y-100P05 |
100 |
1.5 |
21 |
645 |
| TP708-02YSF(L)2Y-150P05 |
150 |
1.8 |
25 |
939 |
| TP708-02YSF(L)2Y-200P05 |
200 |
1.8 |
29 |
1224 |
| TP708-02YSF(L)2Y-300P05 |
300 |
2.0 |
34 |
1787 |
| TP708-02YSF(L)2Y-400P05 |
400 |
2.0 |
39 |
2352 |
| TP708-02YSF(L)2Y-500P05 |
500 |
2.5 |
43 |
2897 |
| TP708-02YSF(L)2Y-600P05 |
600 |
2.5 |
47 |
3469 |
| TP708-02YSF(L)2Y-800P05 |
800 |
2.8 |
53 |
4553 |
| TP708-02YSF(L)2Y-900P05 |
900 |
2.8 |
57 |
5129 |
| TP708-02YSF(L)2Y-1000P05 |
1000 |
2.8 |
60 |
5666 |
| TP708-02YSF(L)2Y-1200P05 |
1200 |
3.2 |
65 |
6732 |
| TP708-02YSF(L)2Y-1500P05 |
1500 |
3.5 |
72 |
8348 |
| TP708-02YSF(L)2Y-1800P05 |
1800 |
3.5 |
78 |
10011 |
| TP708-02YSF(L)2Y-2100P05 |
2100 |
3.5 |
84 |
11609 |
| 0.6mm Conductor, 1.1mm Insulated Wire |
| TP708-02YSF(L)2Y-10P06 |
10 |
1.5 |
11 |
139 |
| TP708-02YSF(L)2Y-20P06 |
20 |
1.5 |
13 |
218 |
| TP708-02YSF(L)2Y-30P06 |
30 |
1.5 |
15 |
302 |
| TP708-02YSF(L)2Y-50P06 |
50 |
1.5 |
18 |
467 |
| TP708-02YSF(L)2Y-70P06 |
70 |
1.5 |
21 |
639 |
| TP708-02YSF(L)2Y-100P06 |
100 |
1.8 |
25 |
894 |
| TP708-02YSF(L)2Y-150P06 |
150 |
1.8 |
30 |
1297 |
| TP708-02YSF(L)2Y-200P06 |
200 |
1.8 |
33 |
1707 |
| TP708-02YSF(L)2Y-300P06 |
300 |
2.0 |
40 |
2507 |
| TP708-02YSF(L)2Y-400P06 |
400 |
2.5 |
46 |
3315 |
| TP708-02YSF(L)2Y-500P06 |
500 |
2.5 |
51 |
4088 |
| TP708-02YSF(L)2Y-600P06 |
600 |
2.8 |
55 |
4860 |
| TP708-02YSF(L)2Y-800P06 |
800 |
3.2 |
63 |
6444 |
| 0.8mm Conductor, 1.4mm Insulated Wire |
| TP708-02YSF(L)2Y-10P08 |
10 |
1.5 |
13 |
210 |
| TP708-02YSF(L)2Y-20P08 |
20 |
1.5 |
16 |
348 |
| TP708-02YSF(L)2Y-30P08 |
30 |
1.5 |
19 |
507 |
| TP708-02YSF(L)2Y-50P08 |
50 |
1.8 |
23 |
793 |
| TP708-02YSF(L)2Y-70P08 |
70 |
1.8 |
28 |
1081 |
| TP708-02YSF(L)2Y-100P08 |
100 |
1.8 |
32 |
1521 |
| TP708-02YSF(L)2Y-150P08 |
150 |
2.0 |
38 |
2240 |
| TP708-02YSF(L)2Y-200P08 |
200 |
2.5 |
43 |
2944 |
| TP708-02YSF(L)2Y-300P08 |
300 |
2.8 |
52 |
4355 |
| TP708-02YSF(L)2Y-400P08 |
400 |
2.8 |
60 |
5763 |
| TP708-02YSF(L)2Y-500P08 |
500 |
3.2 |
67 |
7158 |
|
| |
|
| |
|
| |
|
| |
Foam Skin Insulated, Double Steel Tape Armoured & LAP Sheathed Jelly Filled Cable to IEC 60708 |
| |
| Cable Code |
Number of Pairs |
Nominal Inner
Sheath Thickness
mm |
Nominal Outer
Sheath Thickness
mm |
Nominal Overall
Diameter
mm |
Nominal Weight
kg/km |
| 0.4mm Conductor, 0.75mm Insulated Wire |
| TP708-02YSF(L)2Y(DSTA)2Y-10P04 |
10 |
1.5 |
1.5 |
12.0 |
188 |
| TP708-02YSF(L)2Y(DSTA)2Y-20P04 |
20 |
1.5 |
1.5 |
14.0 |
241 |
| TP708-02YSF(L)2Y(DSTA)2Y-30P04 |
30 |
1.5 |
1.5 |
15.0 |
296 |
| TP708-02YSF(L)2Y(DSTA)2Y-50P04 |
50 |
1.5 |
1.5 |
17.0 |
397 |
| TP708-02YSF(L)2Y(DSTA)2Y-70P04 |
70 |
1.5 |
1.5 |
19.0 |
505 |
| TP708-02YSF(L)2Y(DSTA)2Y-100P04 |
100 |
1.5 |
1.5 |
22.0 |
646 |
| TP708-02YSF(L)2Y(DSTA)2Y-150P04 |
150 |
1.5 |
1.8 |
25.0 |
876 |
| TP708-02YSF(L)2Y(DSTA)2Y-200P04 |
200 |
1.8 |
1.8 |
28.0 |
1091 |
| TP708-02YSF(L)2Y(DSTA)2Y-300P04 |
300 |
1.8 |
1.8 |
32.0 |
1522 |
| TP708-02YSF(L)2Y(DSTA)2Y-400P04 |
400 |
1.8 |
2.0 |
37.0 |
1991 |
| TP708-02YSF(L)2Y(DSTA)2Y-500P04 |
500 |
2.0 |
2.0 |
43.0 |
2913 |
| TP708-02YSF(L)2Y(DSTA)2Y-600P04 |
600 |
2.0 |
2.5 |
46.0 |
3347 |
| TP708-02YSF(L)2Y(DSTA)2Y-800P04 |
800 |
2.5 |
2.5 |
51.0 |
4186 |
| TP708-02YSF(L)2Y(DSTA)2Y-900P04 |
900 |
2.5 |
2.8 |
54.0 |
4630 |
| TP708-02YSF(L)2Y(DSTA)2Y-1000P04 |
1000 |
2.5 |
2.8 |
56.0 |
5034 |
| TP708-02YSF(L)2Y(DSTA)2Y-1200P04 |
1200 |
2.8 |
2.8 |
61.0 |
5881 |
| 0.5mm Conductor, 0.9mm Insulated Wire |
| TP708-02YSF(L)2Y(DSTA)2Y-10P05 |
10 |
1.5 |
1.5 |
14.0 |
227 |
| TP708-02YSF(L)2Y(DSTA)2Y-20P05 |
20 |
1.5 |
1.5 |
15.0 |
301 |
| TP708-02YSF(L)2Y(DSTA)2Y-30P05 |
30 |
1.5 |
1.5 |
17.0 |
381 |
| TP708-02YSF(L)2Y(DSTA)2Y-50P05 |
50 |
1.5 |
1.5 |
20.0 |
534 |
| TP708-02YSF(L)2Y(DSTA)2Y-70P05 |
70 |
1.5 |
1.5 |
22.0 |
681 |
| TP708-02YSF(L)2Y(DSTA)2Y-100P05 |
100 |
1.5 |
1.8 |
25.0 |
894 |
| TP708-02YSF(L)2Y(DSTA)2Y-150P05 |
150 |
1.8 |
1.8 |
30.0 |
1241 |
| TP708-02YSF(L)2Y(DSTA)2Y-200P05 |
200 |
1.8 |
1.8 |
33.0 |
1562 |
| TP708-02YSF(L)2Y(DSTA)2Y-300P05 |
300 |
2.0 |
2.0 |
40.0 |
2250 |
| TP708-02YSF(L)2Y(DSTA)2Y-400P05 |
400 |
2.0 |
2.5 |
47.0 |
3433 |
| TP708-02YSF(L)2Y(DSTA)2Y-500P05 |
500 |
2.5 |
2.5 |
51.0 |
4081 |
| TP708-02YSF(L)2Y(DSTA)2Y-600P05 |
600 |
2.5 |
2.8 |
55.0 |
4755 |
| TP708-02YSF(L)2Y(DSTA)2Y-800P05 |
800 |
2.8 |
3.2 |
62.0 |
6047 |
| TP708-02YSF(L)2Y(DSTA)2Y-900P05 |
900 |
2.8 |
3.2 |
65.0 |
6685 |
| TP708-02YSF(L)2Y(DSTA)2Y-1000P05 |
1000 |
3.2 |
3.5 |
68.0 |
7294 |
| 0.6mm Conductor, 1.1mm Insulated Wire |
| TP708-02YSF(L)2Y(DSTA)2Y-10P06 |
10 |
1.5 |
1.5 |
15.0 |
270 |
| TP708-02YSF(L)2Y(DSTA)2Y-20P06 |
20 |
1.5 |
1.5 |
17.0 |
370 |
| TP708-02YSF(L)2Y(DSTA)2Y-30P06 |
30 |
1.5 |
1.5 |
19.0 |
482 |
| TP708-02YSF(L)2Y(DSTA)2Y-50P06 |
50 |
1.5 |
1.5 |
22.0 |
682 |
| TP708-02YSF(L)2Y(DSTA)2Y-70P06 |
70 |
1.5 |
1.8 |
25.0 |
888 |
| TP708-02YSF(L)2Y(DSTA)2Y-100P06 |
100 |
1.8 |
1.8 |
29.0 |
1191 |
| TP708-02YSF(L)2Y(DSTA)2Y-150P06 |
150 |
1.8 |
2.0 |
34.0 |
1645 |
| TP708-02YSF(L)2Y(DSTA)2Y-200P06 |
200 |
2.0 |
2.0 |
39.0 |
2161 |
| TP708-02YSF(L)2Y(DSTA)2Y-300P06 |
300 |
2.0 |
2.5 |
48.0 |
3617 |
| TP708-02YSF(L)2Y(DSTA)2Y-400P06 |
400 |
2.5 |
2.8 |
54.0 |
4573 |
| TP708-02YSF(L)2Y(DSTA)2Y-500P06 |
500 |
2.5 |
2.8 |
59.0 |
5510 |
| TP708-02YSF(L)2Y(DSTA)2Y-600P06 |
600 |
2.8 |
3.2 |
64.0 |
6396 |
| TP708-02YSF(L)2Y(DSTA)2Y-800P06 |
800 |
3.2 |
3.5 |
72.0 |
8215 |
| 0.8mm Conductor, 1.4mm Insulated Wire |
| TP708-02YSF(L)2Y(DSTA)2Y-10P08 |
10 |
1.5 |
1.5 |
17.0 |
364 |
| TP708-02YSF(L)2Y(DSTA)2Y-20P08 |
20 |
1.5 |
1.5 |
20.0 |
548 |
| TP708-02YSF(L)2Y(DSTA)2Y-30P08 |
30 |
1.5 |
1.5 |
23.0 |
724 |
| TP708-02YSF(L)2Y(DSTA)2Y-50P08 |
50 |
1.8 |
1.8 |
28.0 |
1065 |
| TP708-02YSF(L)2Y(DSTA)2Y-70P08 |
70 |
1.8 |
1.8 |
32.0 |
1404 |
| TP708-02YSF(L)2Y(DSTA)2Y-100P08 |
100 |
2.0 |
2.0 |
37.0 |
1957 |
| TP708-02YSF(L)2Y(DSTA)2Y-150P08 |
150 |
2.0 |
2.5 |
46.0 |
3302 |
| TP708-02YSF(L)2Y(DSTA)2Y-200P08 |
200 |
2.5 |
2.5 |
51.0 |
4142 |
| TP708-02YSF(L)2Y(DSTA)2Y-300P08 |
300 |
2.8 |
2.8 |
61.0 |
5823 |
| TP708-02YSF(L)2Y(DSTA)2Y-400P08 |
400 |
2.8 |
3.2 |
68.0 |
7408 |
| TP708-02YSF(L)2Y(DSTA)2Y-500P08 |
500 |
3.2 |
3.5 |
75.0 |
9001 |
|
| |
|
| |
|
| |
|
| |
Fig 8 Foam Skin Insulated & LAP Sheathed Jelly Filled Cable to IEC 60708 |
| |
| Cable Code |
Number of Pairs |
Support Wire
No. X Diameter
mm |
Nominal Outer
Sheath Thickness
mm |
Nominal Cable
Dimensions
Height X Diameter
mm |
Nominal Weight
kg/km |
| 0.4mm Conductor, 0.75mm Insulated Wire |
| TP708-02YSF(L)2Y-10P04-SS |
10 |
7X0.9 |
1.5 |
16X8.0 |
136 |
| TP708-02YSF(L)2Y-20P04-SS |
20 |
7X0.9 |
1.5 |
18X9.5 |
177 |
| TP708-02YSF(L)2Y-30P04-SS |
30 |
7X1.2 |
1.5 |
20X10.9 |
252 |
| TP708-02YSF(L)2Y-50P04-SS |
50 |
7X1.2 |
1.5 |
22X13.0 |
330 |
| TP708-02YSF(L)2Y-70P04-SS |
70 |
7X1.2 |
1.5 |
24X14.7 |
404 |
| TP708-02YSF(L)2Y-100P04-SS |
100 |
7X1.2 |
1.5 |
26X16.9 |
515 |
| TP708-02YSF(L)2Y-150P04-SS |
150 |
7X1.6 |
1.5 |
30X19.8 |
760 |
| TP708-02YSF(L)2Y-200P04-SS |
200 |
7X1.6 |
1.8 |
34X23 |
965 |
| 0.5mm Conductor, 0.9mm Insulated Wire |
| TP708-02YSF(L)2Y-10P05-SS |
10 |
7X0.9 |
1.5 |
17X8.9 |
158 |
| TP708-02YSF(L)2Y-20P05-SS |
20 |
7X0.9 |
1.5 |
19X10.8 |
220 |
| TP708-02YSF(L)2Y-30P05-SS |
30 |
7X1.2 |
1.5 |
22X12.4 |
309 |
| TP708-02YSF(L)2Y-50P05-SS |
50 |
7X1.2 |
1.5 |
24X15.1 |
426 |
| TP708-02YSF(L)2Y-70P05-SS |
70 |
7X1.2 |
1.5 |
26X17.1 |
530 |
| TP708-02YSF(L)2Y-100P05-SS |
100 |
7X1.2 |
1.5 |
29X19.7 |
695 |
| TP708-02YSF(L)2Y-150P05-SS |
150 |
7X1.6 |
1.8 |
35X25 |
1060 |
| TP708-02YSF(L)2Y-200P05-SS |
200 |
7X1.6 |
1.8 |
38X28 |
1320 |
| 0.63mm Conductor, 1.15mm Insulated Wire |
| TP708-02YSF(L)2Y-10P063-SS |
10 |
7X1.2 |
1.5 |
20X10.0 |
240 |
| TP708-02YSF(L)2Y-20P063-SS |
20 |
7X1.2 |
1.5 |
22X13.2 |
336 |
| TP708-02YSF(L)2Y-30P063-SS |
30 |
7X1.2 |
1.5 |
25X15.4 |
431 |
| TP708-02YSF(L)2Y-50P063-SS |
50 |
7X1.2 |
1.5 |
28X19.0 |
625 |
| TP708-02YSF(L)2Y-70P063-SS |
70 |
7X1.6 |
1.5 |
32X22 |
865 |
| TP708-02YSF(L)2Y-100P063-SS |
100 |
7X1.6 |
1.8 |
37X26 |
1170 |
| TP708-02YSF(L)2Y-150P063-SS |
150 |
7X1.6 |
1.8 |
42X31 |
1640 |
| TP708-02YSF(L)2Y-200P063-SS |
200 |
7X1.6 |
2.0 |
47X36 |
2110 |
| 0.9mm Conductor, 1.5mm Insulated Wire |
| TP708-02YSF(L)2Y-10P09-SS |
10 |
7X1.2 |
1.5 |
22X13.1 |
330 |
| TP708-02YSF(L)2Y-20P09-SS |
20 |
7X1.2 |
1.5 |
26X16.4 |
505 |
| TP708-02YSF(L)2Y-30P09-SS |
30 |
7X1.2 |
1.5 |
29X19.5 |
680 |
| TP708-02YSF(L)2Y-50P09-SS |
50 |
7X1.6 |
1.8 |
36X25 |
1120 |
| TP708-02YSF(L)2Y-70P09-SS |
70 |
7X1.6 |
1.8 |
40X29 |
1460 |
| TP708-02YSF(L)2Y-100P09-SS |
100 |
7X1.6 |
2.0 |
45X34 |
1990 |
| TP708-02YSF(L)2Y-150P09-SS |
150 |
7X2.0 |
2.0 |
53X41 |
2930 |
|
| |
Fig 8 Foam Skin Insulated and LAP Sheathed Air Core Cable to IEC 60708 |
| |
| Cable Code |
Number of
Pairs |
Support Wire
No. X Diameter
mm |
Nominal Outer
Sheath Thickness
mm |
Nominal Cable
Dimensions
Height X Diameter
mm |
Nominal Weight
kg/km |
| 0.4mm Conductor, 0.75mm Insulated Wire |
| TP708-02YS(L)2Y-10P04-SS |
10 |
7X0.9 |
1.5 |
16X8.0 |
129 |
| TP708-02YS(L)2Y-20P04-SS |
20 |
7X0.9 |
1.5 |
18X9.4 |
166 |
| TP708-02YS(L)2Y-30P04-SS |
30 |
7X1.2 |
1.5 |
20X10.7 |
234 |
| TP708-02YS(L)2Y-50P04-SS |
50 |
7X1.2 |
1.5 |
22X12.9 |
306 |
| TP708-02YS(L)2Y-70P04-SS |
70 |
7X1.2 |
1.5 |
24X14.6 |
370 |
| TP708-02YS(L)2Y-100P04-SS |
100 |
7X1.2 |
1.5 |
26X16.7 |
466 |
| TP708-02YS(L)2Y-150P04-SS |
150 |
7X1.6 |
1.5 |
30X19.6 |
680 |
| TP708-02YS(L)2Y-200P04-SS |
200 |
7X1.6 |
1.5 |
33X23 |
840 |
| 0.5mm Conductor, 0.9mm Insulated Wire |
| TP708-02YS(L)2Y-10P05-SS |
10 |
7X0.9 |
1.5 |
17X8.6 |
148 |
| TP708-02YS(L)2Y-20P05-SS |
20 |
7X0.9 |
1.5 |
19X10.3 |
198 |
| TP708-02YS(L)2Y-30P05-SS |
30 |
7X1.2 |
1.5 |
21X11.7 |
280 |
| TP708-02YS(L)2Y-50P05-SS |
50 |
7X1.2 |
1.5 |
23X14.1 |
378 |
| TP708-02YS(L)2Y-70P05-SS |
70 |
7X1.2 |
1.5 |
25X16.1 |
472 |
| TP708-02YS(L)2Y-100P05-SS |
100 |
7X1.2 |
1.5 |
28X18.5 |
610 |
| TP708-02YS(L)2Y-150P05-SS |
150 |
7X1.6 |
1.5 |
32X22 |
895 |
| TP708-02YS(L)2Y-200P05-SS |
200 |
7X1.6 |
1.8 |
36X26 |
1140 |
| 0.63mm Conductor, 1.15mm Insulated Wire |
| TP708-02YS(L)2Y-10P063-SS |
10 |
7X1.2 |
1.5 |
19X9.8 |
216 |
| TP708-02YS(L)2Y-20P063-SS |
20 |
7X1.2 |
1.5 |
21X11.9 |
295 |
| TP708-02YS(L)2Y-30P063-SS |
30 |
7X1.2 |
1.5 |
23X13.9 |
373 |
| TP708-02YS(L)2Y-50P063-SS |
50 |
7X1.2 |
1.5 |
26X16.8 |
530 |
| TP708-02YS(L)2Y-70P063-SS |
70 |
7X1.6 |
1.5 |
30X19.2 |
740 |
| TP708-02YS(L)2Y-100P063-SS |
100 |
7X1.6 |
1.8 |
34X23 |
995 |
| TP708-02YS(L)2Y-150P063-SS |
150 |
7X1.6 |
1.8 |
38X28 |
1370 |
| TP708-02YS(L)2Y-200P063-SS |
200 |
7X1.6 |
1.8 |
42X31 |
1730 |
| 0.9mm Conductor, 1.5mm Insulated Wire |
| TP708-02YS(L)2Y-10P09-SS |
10 |
7X1.2 |
1.5 |
21X12.1 |
291 |
| TP708-02YS(L)2Y-20P09-SS |
20 |
7X1.2 |
1.5 |
24X15 |
440 |
| TP708-02YS(L)2Y-30P09-SS |
30 |
7X1.2 |
1.5 |
27X17.6 |
585 |
| TP708-02YS(L)2Y-50P09-SS |
50 |
7X1.6 |
1.5 |
32X22 |
940 |
| TP708-02YS(L)2Y-70P09-SS |
70 |
7X1.6 |
1.8 |
37X26 |
1250 |
| TP708-02YS(L)2Y-100P09-SS |
100 |
7X1.6 |
1.8 |
41X31 |
1680 |
| TP708-02YS(L)2Y-150P09-SS |
150 |
7X2.0 |
1.9 |
48X37 |
2470 |
|
| |
Fig 8 Foam Skin Insulated, Double Steel Tape Armoured & LAP Sheathed Jelly Filled Cable to IEC 60708 |
| |
| Cable Code |
Number of Pairs |
Support Wire
No. X Diameter
mm |
Nominal Inner /
Outer Sheath
Thickness
mm |
Nominal Cable
Dimensions
Height X Diameter
mm |
Nominal Weight
kg/km |
| 0.4mm Conductor, 0.75mm Insulated Wire |
| TP708-02YSF(L)2Y(DSTA)2Y-10P04-SS |
10 |
7X1.2 |
1.5/1.5 |
21X12.2 |
295 |
| TP708-02YSF(L)2Y(DSTA)2Y-20P04-SS |
20 |
7X1.2 |
1.5/1.5 |
23X13.7 |
354 |
| TP708-02YSF(L)2Y(DSTA)2Y-30P04-SS |
30 |
7X1.2 |
1.5/1.5 |
24X14.9 |
407 |
| TP708-02YSF(L)2Y(DSTA)2Y-50P04-SS |
50 |
7X1.2 |
1.5/1.5 |
26X17.1 |
515 |
| TP708-02YSF(L)2Y(DSTA)2Y-70P04-SS |
70 |
7X1.2 |
1.5/1.5 |
28X18.7 |
610 |
| TP708-02YSF(L)2Y(DSTA)2Y-100P04-SS |
100 |
7X1.2 |
1.5/1.5 |
30X21 |
745 |
| TP708-02YSF(L)2Y(DSTA)2Y-150P04-SS |
150 |
7X1.6 |
1.5/1.8 |
35X25 |
1060 |
| TP708-02YSF(L)2Y(DSTA)2Y-200P04-SS |
200 |
7X1.6 |
1.8/1.8 |
39X28 |
1300 |
| 0.5mm Conductor, 0.9mm Insulated Wire |
| TP708-02YSF(L)2Y(DSTA)2Y-10P05-SS |
10 |
7X1.2 |
1.5/1.5 |
22X13.0 |
325 |
| TP708-02YSF(L)2Y(DSTA)2Y-20P05-SS |
20 |
7X1.2 |
1.5/1.5 |
21X14.9 |
408 |
| TP708-02YSF(L)2Y(DSTA)2Y-30P05-SS |
30 |
7X1.2 |
1.5/1.5 |
26X16.5 |
485 |
| TP708-02YSF(L)2Y(DSTA)2Y-50P05-SS |
50 |
7X1.2 |
1.5/1.5 |
28X19.1 |
635 |
| TP708-02YSF(L)2Y(DSTA)2Y-70P05-SS |
70 |
7X1.6 |
1.5/1.5 |
32X22 |
830 |
| TP708-02YSF(L)2Y(DSTA)2Y-100P05-SS |
100 |
7X1.6 |
1.5/1.8 |
35X25 |
1050 |
| TP708-02YSF(L)2Y(DSTA)2Y-150P05-SS |
150 |
7X1.6 |
1.8/1.8 |
40X29 |
1410 |
| TP708-02YSF(L)2Y(DSTA)2Y-200P05-SS |
200 |
7X1.6 |
1.8/2.0 |
43X33 |
1740 |
| 0.63mm Conductor, 1.15mm Insulated Wire |
| TP708-02YSF(L)2Y(DSTA)2Y-10P063-SS |
10 |
7X1.2 |
1.5/1.5 |
24X14.7 |
393 |
| TP708-02YSF(L)2Y(DSTA)2Y-20P063-SS |
20 |
7X1.2 |
1.5/1.5 |
27X17.3 |
525 |
| TP708-02YSF(L)2Y(DSTA)2Y-30P063-SS |
30 |
7X1.2 |
1.5/1.5 |
29X19.4 |
645 |
| TP708-02YSF(L)2Y(DSTA)2Y-50P063-SS |
50 |
7X1.2 |
1.5/1.8 |
33X24 |
915 |
| TP708-02YSF(L)2Y(DSTA)2Y-70P063-SS |
70 |
7X1.6 |
1.5/1.8 |
37X27 |
1190 |
| TP708-02YSF(L)2Y(DSTA)2Y-100P063-SS |
100 |
7X1.6 |
1.8/1.8 |
42X31 |
1550 |
| TP708-02YSF(L)2Y(DSTA)2Y-150P063-SS |
150 |
7X1.6 |
1.8/2.0 |
47X36 |
2100 |
| TP708-02YSF(L)2Y(DSTA)2Y-200P063-SS |
200 |
7X1.6 |
2.0/2.0 |
52X41 |
2630 |
| 0.9mm Conductor, 1.5mm Insulated Wire |
| TP708-02YSF(L)2Y(DSTA)2Y-10P09-SS |
10 |
7X1.2 |
1.5/1.5 |
26X17.1 |
515 |
| TP708-02YSF(L)2Y(DSTA)2Y-20P09-SS |
20 |
7X1.2 |
1.5/1.5 |
30X21 |
735 |
| TP708-02YSF(L)2Y(DSTA)2Y-30P09-SS |
30 |
7X1.2 |
1.5/1.8 |
34X25 |
970 |
| TP708-02YSF(L)2Y(DSTA)2Y-50P09-SS |
50 |
7X1.6 |
1.8/1.8 |
40X30 |
1480 |
| TP708-02YSF(L)2Y(DSTA)2Y-70P09-SS |
70 |
7X1.6 |
1.8/2.0 |
45X34 |
1900 |
| TP708-02YSF(L)2Y(DSTA)2Y-100P09-SS |
100 |
7X1.6 |
2.0/2.0 |
50X39 |
2500 |
| TP708-02YSF(L)2Y(DSTA)2Y-150P09-SS |
150 |
7X2.0 |
2.0/2.5 |
60X47 |
3610 |
|
| |
Fig 8 Foam Skin Insulated, Double Steel Tape Armoured and LAP Sheathed Air Core Cable to IEC 60708 |
| |
| Cable Code |
Number of Pairs |
Support Wire
No. X Diameter
mm |
Nominal Inner /
Outer Sheath
Thickness
mm |
Nominal Cable
Dimensions
Height X Diameter
mm |
Nominal
Weight
kg/km |
| 0.4mm Conductor, 0.75mm Insulated Wire |
| TP708-02YS(L)2Y(DSTA)2Y-10P04-SS |
>10 |
7X0.9 |
1.5/1.5 |
20X12.0 |
249 |
| TP708-02YS(L)2Y(DSTA)2Y-20P04-SS |
>20 |
7X0.9 |
1.5/1.5 |
22X13.5 |
304 |
| TP708-02YS(L)2Y(DSTA)2Y-30P04-SS |
>30 |
7X1.2 |
1.5/1.5 |
24X14.8 |
389 |
| TP708-02YS(L)2Y(DSTA)2Y-50P04-SS |
50 |
7X1.2 |
1.5/1.5 |
26X17.0 |
489 |
| TP708-02YS(L)2Y(DSTA)2Y-70P04-SS |
>70 |
7X1.2 |
1.5/1.5 |
28X18.6 |
575 |
| TP708-02YS(L)2Y(DSTA)2Y-100P04-SS |
>100 |
7X1.2 |
1.5/1.5 |
30X21 |
695 |
| TP708-02YS(L)2Y(DSTA)2Y-150P04-SS |
>150 |
7X1.6 |
1.5/1.8 |
35X25 |
975 |
| TP708-02YS(L)2Y(DSTA)2Y-200P04-SS |
>200 |
7X1.6 |
1.8/1.8 |
28X28 |
1190 |
| 0.5mm Conductor, 0.9mm Insulated Wire |
| TP708-02YS(L)2Y(DSTA)2Y-10P05-SS |
>10 |
7X0.9 |
1.5/1.5 |
21X12.7 |
267 |
| TP708-02YS(L)2Y(DSTA)2Y-20P05-SS |
>20 |
7X0.9 |
1.5/1.5 |
23X14.3 |
347 |
| TP708-02YS(L)2Y(DSTA)2Y-30P05-SS |
>30 |
7X1.2 |
1.5/1.5 |
25X15.8 |
448 |
| TP708-02YS(L)2Y(DSTA)2Y-50P05-SS |
>50 |
7X1.2 |
1.5/1.5 |
27X18.2 |
575 |
| TP708-02YS(L)2Y(DSTA)2Y-70P05-SS |
>70 |
7X1.2 |
1.5/1.5 |
29X21 |
695 |
| TP708-02YS(L)2Y(DSTA)2Y-100P05-SS |
>100 |
7X1.2 |
1.5/1.8 |
33X24 |
890 |
| TP708-02YS(L)2Y(DSTA)2Y-150P05-SS |
>150 |
7X1.6 |
1.5/1.8 |
37X27 |
1220 |
| TP708-02YS(L)2Y(DSTA)2Y-200P05-SS |
>200 |
7X1.6 |
1.8/1.8 |
41X30 |
1510 |
| 0.63mm Conductor, 1.15mm Insulated Wire |
| TP708-02YS(L)2Y(DSTA)2Y-10P063-SS |
>10 |
7X1.2 |
1.5/1.5 |
23X13.9 |
359 |
| TP708-02YS(L)2Y(DSTA)2Y-20P063-SS |
>20 |
7X1.2 |
1.5/1.5 |
25X16.0 |
465 |
| TP708-02YS(L)2Y(DSTA)2Y-30P063-SS |
>30 |
7X1.2 |
1.5/1.5 |
27X17.8 |
565 |
| TP708-02YS(L)2Y(DSTA)2Y-50P063-SS |
>50 |
7X1.2 |
1.5/1.5 |
30X21 |
765 |
| TP708-02YS(L)2Y(DSTA)2Y-70P063-SS |
>70 |
7X1.6 |
1.5/1.8 |
35X24 |
1030 |
| TP708-02YS(L)2Y(DSTA)2Y-100P063-SS |
>100 |
7X1.6 |
1.8/1.8 |
39X28 |
1330 |
| TP708-02YS(L)2Y(DSTA)2Y-150P063-SS |
>150 |
7X1.6 |
1.8/1.9 |
43X32 |
1770 |
| TP708-02YS(L)2Y(DSTA)2Y-200P063-SS |
>200 |
7X1.6 |
1.8/1.9 |
47X36 |
2180 |
| 0.9mm Conductor, 1.5mm Insulated Wire |
| TP708-02YS(L)2Y(DSTA)2Y-10P09-SS |
10 |
7X1.2 |
1.5/1.5 |
25X16.1 |
463 |
| TP708-02YS(L)2Y(DSTA)2Y-20P09-SS |
20 |
7X1.2 |
1.5/1.5 |
18X19.1 |
650 |
| TP708-02YS(L)2Y(DSTA)2Y-30P09-SS |
30 |
7X1.2 |
1.5/1.5 |
31X22 |
830 |
| TP708-02YS(L)2Y(DSTA)2Y-50P09-SS |
50 |
7X1.6 |
1.5/1.8 |
37X27 |
1270 |
| TP708-02YS(L)2Y(DSTA)2Y-70P09-SS |
70 |
7X1.6 |
1.8/1.8 |
41X31 |
1630 |
| TP708-02YS(L)2Y(DSTA)2Y-100P09-SS |
100 |
7X1.6 |
1.8/1.9 |
46X35 |
2130 |
| TP708-02YS(L)2Y(DSTA)2Y-150P09-SS |
150 |
7X2.0 |
1.9/1.9 |
53X41 |
3000 |
|
| |
|
