400Hz Airport Cables 7-core With Copper Tape Shield
Applications
These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
Standards

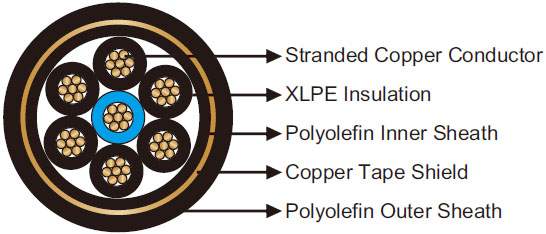

Construction
| Conductor |
Stranded bare copper conductor, Class 5 to VDE 0295/IEC 60228. |
| Insulation |
XLPE. |
| Inner Sheath |
Polyolefin. |
| Shield |
Copper tape shield. |
| Outer Sheath |
Polyolefin. |
Technical Data
| Rated Voltage Uo/U (Um) |
600/1000V |
| Operating Temperatures |
-40℃~+90℃ |
| Minimum Bending Radius |
static: 9×OD; dynamic: 12×OD |
| Halogen Free |
Yes |
| No Corrosive & Toxic Gases |
Yes |
| Low Smoke |
Yes |
| Flame Retardant |
Yes |
Dimensions and Weight
| Construction |
Nominal Diameter of Single Core |
Nominal Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
kg/km |
| 7×35 |
9.7 |
41.8 |
3450 |
| 7×50 |
11.8 |
47.8 |
4660 |
| 7×70 |
11.9 |
54.1 |
5930 |
