C 33-224 / C33-225
Applications
These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.
Standards

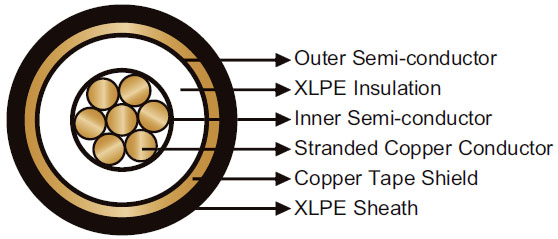

Construction
| Conductor |
Stranded bare or tinned copper conductor. |
| Inner Semi-Conductor |
Extruded semi-conducting compound. |
| Insulation |
XLPE. EPDM can be offered upon request. |
| Outer Semi-Conductor |
Extruded semi-conducting compound. |
| Shield |
Copper tape shield. Copper wire shield can be offered upon request. |
| Sheath |
XLPE. PVC/HFFR/CR can be offered upon request. |
Technical Data
| Rated Voltage Uo/U (Um) |
3.6/6 (7.2kV); 6/10 (12kV) |
| Maximum Conductor Temperature |
90℃ |
| Short Circuit Temperature |
250℃ |
| Operating Temperatures |
-20℃~+70℃ |
| Minimum Bending Radius |
static: 10×OD; dynamic: 20×OD |
| Impacted Resistant |
Yes |
| Weather Resistant |
Yes |
Dimensions and Weight
3.6/6 (7.2kV)
| Construction |
No. of Strand |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
- |
mm |
mm |
mm |
kg/km |
| 1×6 |
7 |
2.7 |
1.4 |
12.5 |
198 |
6/10 (12kV)
| Construction |
No. of Strand |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
- |
mm |
mm |
mm |
kg/km |
| 1×6 |
7 |
3.6 |
1.6 |
14.7 |
250 |
