FAA L-824 Type C 600V

Applications

These cables are designed for use in airport lighting and control circuits, suitable for installation in ducts, conduit and direct burial.

Standards

  • FAA L-824 Type C
  • ICEA S-95-658/NEWA WC71

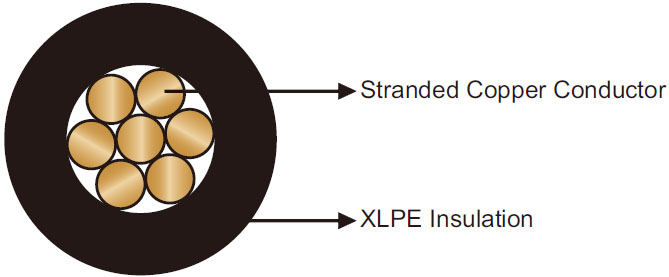

Construction

Airport Cable
Conductor Stranded tinned copper conductor.
Insulation EPR.
Semi-Conductor Helically applied semi-conducting tape.
Shield Tinned copper tape.
Separator Separation tape.
Sheath CPE

Technical Data

Rated Voltage Uo/U (Um) 600V
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -40℃~+85℃
Minimum Bending Radius 5×OD
Halogen Free Yes
Abrasion Resistant Yes
UV Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction No. of Strand Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
No. × mm^2/ AWG - mm inches mm inches mm inches kg/km lbs/kft
1×12 7 1.14 0.045 - - 4.62 0.182 46 30
1×10 7 1.14 0.045 - - 5.21 0.205 61 43
1×8 7 1.52 0.06 - - 6.76 0.266 101 69
1×6 7 1.52 0.06 - - 7.72 0.304 152 102
1×4 7 1.52 0.06 - - 8.94 0.352 231 158
2×12 7 0.76 0.03 1.14 0.045 10.41 0.41 146 98
2×10 7 0.76 0.03 1.14 0.045 11.56 0.455 199 134
2×8 7 1.14 0.045 1.52 0.06 15.37 0.605 323 217
2×6 7 1.14 0.045 1.52 0.06 17.40 0.685 446 300
2×4 7 1.14 0.045 1.52 0.06 19.81 0.780 632 425
3×12 7 0.76 0.03 1.14 0.045 11.05 0.435 187 126
3×10 7 0.76 0.03 1.14 0.045 12.19 0.480 259 174
3×8 7 1.14 0.045 1.52 0.06 16.38 0.645 437 294
3×6 7 1.14 0.045 1.52 0.06 18.42 0.725 610 410
3×4 7 1.14 0.045 2.03 0.08 21.97 0.865 908 610
4×12 7 0.76 0.03 1.14 0.045 12.07 0.475 222 149
4×10 7 0.76 0.03 1.52 0.06 14.22 0.560 350 235
4×8 7 1.14 0.045 1.52 0.06 17.91 0.705 548 368
4×6 7 1.14 0.045 1.52 0.06 20.19 0.795 772 519
4×4 7 1.14 0.045 2.03 0.08 24.13 0.950 1165 783
5×12 7 0.76 0.03 1.14 0.045 13.08 0.515 292 196
5×10 7 0.76 0.03 1.52 0.06 15.49 0.610 405 272
6×12 7 0.76 0.03 1.52 0.06 15.24 0.600 357 240
6×10 7 0.76 0.03 1.52 0.06 16.89 0.665 495 333
7×12 7 0.76 0.03 1.52 0.06 15.24 0.600 379 255
7×10 7 0.76 0.03 1.52 0.06 16.89 0.665 534 359
8×12 7 0.76 0.03 1.52 0.06 16.38 0.645 430 289
8×10 7 0.76 0.03 1.52 0.06 18.29 0.720 604 406
9×12 7 0.76 0.03 1.52 0.06 17.65 0.695 479 322
9×10 7 0.76 0.03 1.52 0.06 19.69 0.775 707 475
10×12 7 0.76 0.03 1.52 0.06 18.42 0.725 539 362
10×10 7 0.76 0.03 1.52 0.06 20.57 0.810 762 512
11×12 7 0.76 0.03 1.52 0.06 18.92 0.745 594 399
11×10 7 0.76 0.03 2.03 0.08 22.10 0.870 878 590
12×12 7 0.76 0.03 1.52 0.06 19.43 0.765 631 424
12×10 7 0.76 0.03 2.03 0.08 22.61 0.890 933 627
13×12 7 0.76 0.03 1.52 0.06 20.07 0.790 662 445
13×10 7 0.76 0.03 2.03 0.08 23.50 0.925 985 662
14×12 7 0.76 0.03 1.52 0.06 20.83 0.820 708 476
14×10 7 0.76 0.03 2.03 0.08 24.26 0.955 1053 708
15×12 7 0.76 0.03 2.03 0.08 22.35 0.880 793 533
15×10 7 0.76 0.03 2.03 0.08 24.89 0.980 1119 752
16×12 7 0.76 0.03 2.03 0.08 22.99 0.905 839 564
16×10 7 0.76 0.03 2.03 0.08 25.65 1.010 1186 797
17×12 7 0.76 0.03 2.03 0.08 23.62 0.930 902 606
17×10 7 0.76 0.03 2.03 0.08 26.29 1.035 1275 857
18×12 7 0.76 0.03 2.03 0.08 24.26 0.955 946 636
18×10 7 0.76 0.03 2.03 0.08 26.92 1.060 1342 902
19×12 7 0.76 0.03 2.03 0.08 24.26 0.955 970 652
19×10 7 0.76 0.03 2.03 0.08 26.92 1.060 1381 928
