LYST
Applications
These cables are used for connection between Control Tower and Constant Current Regulators (CCRs), suitable for transmission of voice data up to 2,000 kHz.
Standards

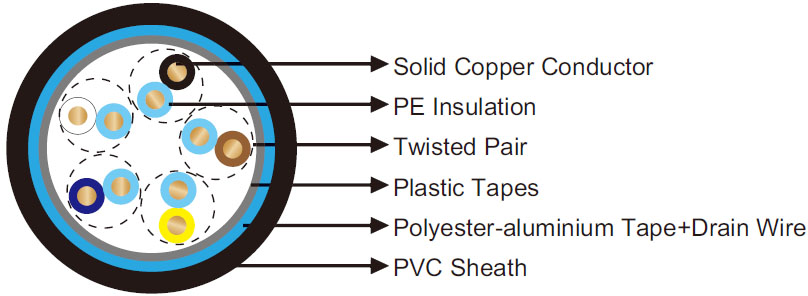

Construction
| Conductor |
Solid bare copper. |
| Insulation |
PE. |
| Cable Element |
Pairs. |
| Separator |
One or more plastic tapes. |
| Shield |
Polyester-aluminium tape with drain wire. |
| Sheath |
PVC. |
Technical Data
| Rated Voltage Uo/U (Um) |
200V |
| Maximum Conductor Temperature |
90℃ |
| Short Circuit Temperature |
250℃ |
| Operating Temperatures |
-15℃~+70℃ |
| Minimum Bending Radius |
static: 6×OD; dynamic: 12×OD |
| Lead Free |
Yes |
Dimensions and Weight
| Construction |
AWG |
Nominal Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
- |
mm |
kg/km |
| 1×2×0.20 |
24 |
3.6 |
18 |
| 2×2×0.20 |
24 |
4.5 |
27 |
| 3×2×0.20 |
24 |
5.0 |
33 |
| 5×2×0.20 |
24 |
6.0 |
47 |
| 10×2×0.20 |
24 |
7.2 |
77 |
| 15×2×0.20 |
24 |
8.2 |
104 |
| 30×2×0.20 |
24 |
11.0 |
193 |
| 56×2×0.20 |
24 |
14.7 |
334 |
| 112×2×0.20 |
24 |
19.5 |
626 |
| 1×2×0.50 |
20 |
4.8 |
31 |
| 2×2×0.50 |
20 |
7.0 |
57 |
| 3×2×0.50 |
20 |
7.2 |
70 |
| 5×2×0.50 |
20 |
8.6 |
97 |
| 10×2×0.50 |
20 |
11.3 |
174 |
| 15×2×0.50 |
20 |
12.9 |
236 |
| 30×2×0.50 |
20 |
16.8 |
441 |
| 56×2×0.50 |
20 |
23.4 |
799 |
