RHV

Applications

These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.

Standards

  • UNE 21-161-93 (Spain)

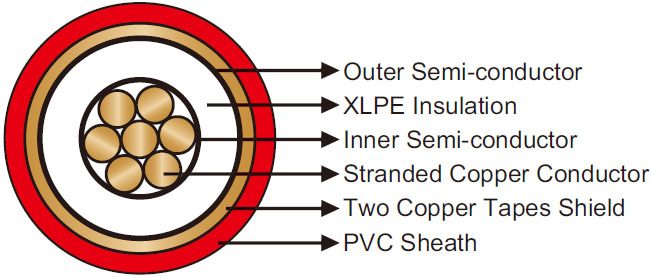

Construction

Airport Cable
Conductor Stranded bare copper conductor.
Inner Semi-Conductor Extruded semi-conducting compound.
Insulation XLPE.
Outer Semi-Conductor Extruded semi-conducting compound.
Shield Two copper tapes.
Outer Sheath PVC.

Technical Data

Rated Voltage Uo/U (Um) 6/10kV
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -20℃~+90℃
Minimum Bending Radius static: 10×OD; dynamic: 20×OD
Impacted Resistant Yes
Weather Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
No. ×mm^2 mm mm mm kg/km
1×6 3.5 2.8 18.0 410
