Multicore Overall Screened Cables - Belden Equivalent 8729
Applications
These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a drain wire. These cables are suitable for used as audio, control and instrumentation cables.

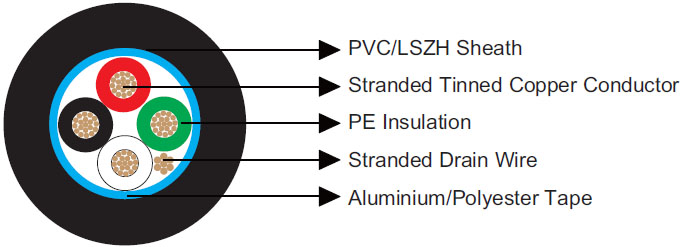

Construction
| Conductor |
Tinned copper wire. |
| Insulation |
PE. |
| Overall Screen |
Aluminium/Polyester tape. |
| Drain Wire |
Tinned copper covered steel. |
| Sheath |
PVC (V type)/LSZH (H type). |
| Insulation Colour |
Black, Red, Green, Clear. |
Electrical & Mechanical Characteristics
| AWG |
|
22 |
| Conductor Construction |
|
19x0.16 |
| UL Style |
|
2094 |
| Maximum Conductor Resistance |
Ω/km |
54.8 |
| Voltage Rating |
V |
300 |
| Nominal Capacitance Conductor to Conductor |
pF/m |
72 |
| Nominal Capacitance Conductor to Screen |
pF/m |
138 |
| Bending Radius |
|
10xOverall Diameter |
| Operating Temperature |
℃ |
-40~75 |
Dimensions
| Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
| |
|
mm |
mm |
mm |
| BE118729V |
4 |
0.41 |
1.30 |
6.5 |
| BE118729H |
4 |
0.41 |
1.30 |
6.5 |
