Multicore Unscreened Armoured Cables - Belden Equivalent 28271
Applications
These multicore unscreened armoured cables are Type MC Metal Clad cables.

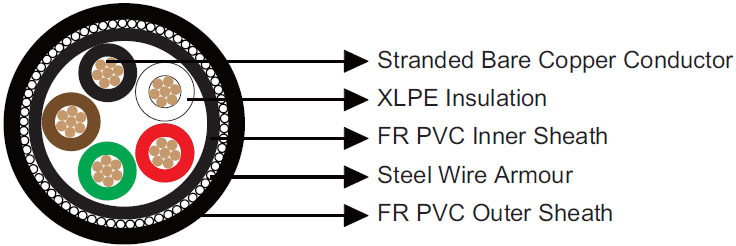

Construction
| Conductor |
Bare copper wire. |
| Insulation |
XLPE. |
| Inner Sheath |
FR PVC. |
| Armour |
Steel wire armour. |
| Outer Sheath |
FR PVC. |
| Insulation Colour |
Black, White, Red, Green, Brown. Other colours are available upon your request. |
Electrical & Mechanical Characteristics
| AWG |
|
12 |
| Conductor Construction (No.x Dia. of Wires) |
|
7x20 |
| Nominal Conductor DC Resistance @20℃ |
Ω/km |
5 |
| Voltage Rating |
V |
600 |
| Bending Radius |
|
13xOverall Diameter |
| Operating Temperature |
℃ |
-40~90 |
Dimensions
| Ordering Code |
No. of Cores |
Insulation Thickness |
Outer Sheath Thickness |
Overall Diameter |
| |
|
mm |
mm |
mm |
| BE1128271V SWA |
5 |
0.8 |
1.7 |
19.72 |
