Multipair Overall Screened Cables - Belden Equivalent 8441
Applications
These multipair overall screened cables have pairs laid up in a braid screen. These cables are suitable for used as audio, control and instrumentation cables.

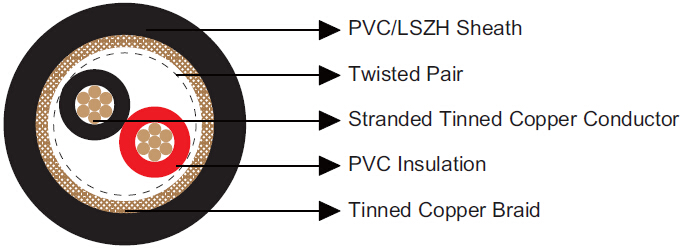

Construction
| Conductor |
Tinned copper wire. |
| Insulation |
PVC. |
| Separator |
Polyester Tape. |
| Overall Screen |
Tinned copper braid, 86% coverage. |
| Sheath |
PVC (V type)/LSZH (H type). |
| Insulation Colour |
Black/Red. |
Electrical & Mechanical Characteristics
| AWG |
|
22 |
| Conductor Construction |
|
7x0.254 |
| UL Style |
|
2095 |
| Maximum Conductor Resistance |
Ω/km |
54.8 |
| Voltage Rating |
V |
300 |
| Nominal Capacitance Conductor to Conductor |
pF/m |
161 |
| Nominal Capacitance Conductor to Screen |
pF/m |
282 |
| Bending Radius |
|
10xOverall Diameter |
| Operating Temperature |
℃ |
-20~80 |
Dimensions
| Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
| |
|
mm |
mm |
mm |
| BE118441V |
1 |
0.38 |
0.64 |
4.9 |
| BE118441H |
1 |
0.38 |
0.64 |
4.9 |
