Multipair Overall Screened Cables - Belden Equivalent 8719
Applications

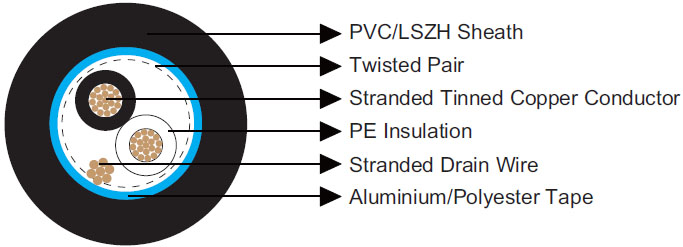

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.
Construction
| Conductor |
Tinned copper wire. |
| Insulation |
PE. |
| Overall Screen |
Aluminium/Polyester tape. |
| Drain Wire |
Tinned copper wire. |
| Sheath |
PVC (V type)/LSZH (H type). |
| Insulation Colour |
Black, Clear. |
Electrical & Mechanical Characteristics
| AWG |
|
16 |
| Conductor Construction |
|
19x0.287 |
| UL Style |
|
20253 |
| Maximum Conductor Resistance |
Ω/km |
15.8 |
| Voltage Rating |
V |
600 |
| Nominal Capacitance Conductor to Conductor |
pF/m |
76 |
| Nominal Capacitance Conductor to Screen |
pF/m |
144 |
| Bending Radius |
|
10xOverall Diameter |
| Operating Temperature |
℃ |
-20~80 |
Dimensions
| Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
| |
|
mm |
mm |
mm |
| BE118719V |
1 |
0.81 |
0.81 |
8.0 |
| BE118719H |
1 |
0.81 |
0.81 |
8.0 |
