Multipair Overall Screened Cables - Belden Equivalent 8760
Applications
These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

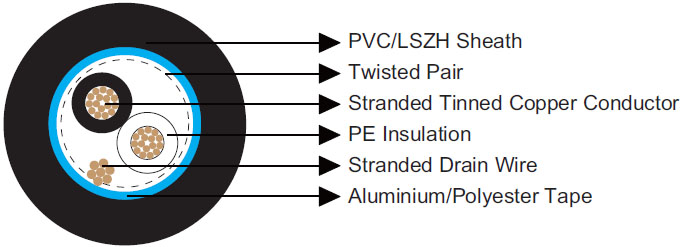

Construction
| Conductor |
Tinned copper wire. |
| Insulation |
PE. |
| Overall Screen |
Aluminium/Polyester tape. |
| Drain Wire |
Tinned copper wire. |
| Sheath |
PVC (V type)/LSZH (H type). |
| Insulation Colour |
Black, Clear. |
Electrical & Mechanical Characteristics
| AWG |
|
18 |
| Conductor Construction |
|
16x0.25 |
| UL Style |
|
2092 |
| Maximum Conductor Resistance |
Ω/km |
23 |
| Voltage Rating |
V |
300 |
| Nominal Capacitance Conductor to Conductor |
pF/m |
98 |
| Nominal Capacitance Conductor to Screen |
pF/m |
176 |
| Bending Radius |
|
10xOverall Diameter |
| Operating Temperature |
℃ |
-20~60 |
Dimensions
| Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
| |
|
mm |
mm |
mm |
| BE118760V |
1 |
0.46 |
0.71 |
5.6 |
| BE118760H |
1 |
0.46 |
0.71 |
5.6 |
