Multipair Overall Screened Cables - Belden Equivalent 9505
Applications
These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

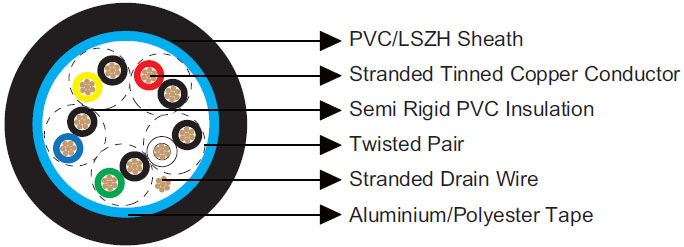

Construction
| Conductor |
Tinned copper wire. |
| Insulation |
Semi-Rigid PVC. |
| Overall Screen |
Aluminium/Polyester tape. |
| Drain Wire |
Tinned copper wire. |
| Sheath |
PVC (V type)/LSZH (H type). |
| Insulation Colour |
Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow. |
Electrical & Mechanical Characteristics
| AWG |
|
24 |
| Conductor Construction |
|
7x0.2 |
| UL Style |
|
2464 |
| Maximum Conductor Resistance |
Ω/km |
85 |
| Voltage Rating |
V |
300 |
| Nominal Capacitance Conductor to Conductor |
pF/m |
98 |
| Nominal Capacitance Conductor to Screen |
pF/m |
164 |
| Bending Radius |
|
10xOverall Diameter |
| Operating Temperature |
℃ |
-30~80 |
Dimensions
| Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
| |
|
mm |
mm |
mm |
| BE119505V |
5 |
0.25 |
0.89 |
7.3 |
| BE119505H |
5 |
0.25 |
0.89 |
7.3 |
