LCX8(3/8″) L

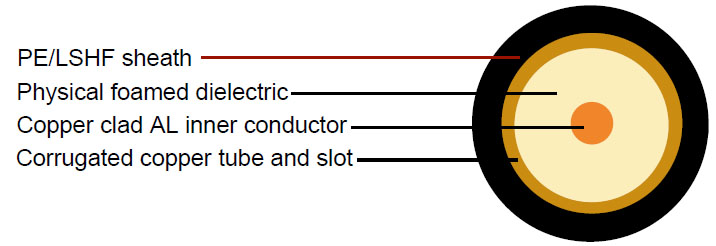

Construction :

  • Inner conductor Copper clad Aluminium or copper Φ3.1 mm
    Dielectric Foam PE Φ8.35 mm
    Outer conductor Corrugated copper tube and slot Φ9.5 mm
    Sheath PE/LSOH Φ11.2 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 76 pF/m
    Velocity of propagation 88%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 3.1 Ohm/Km
    Outer conductor resistance 3.1 Ohm/Km
    Installation temperature range -40°C - +60 °C
    Operating temperature range -55°C - +85°C
    Cable weight (approx.) 140kg/km /160kg/km

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation(dB/100ft)
    75 3.3 1.01
    150 4.5 1.37
    450 7.5 2.29
    800 10.5 3.20
    900 11.0 3.35
    1800 15.8 4.82
>
