RF22(7/8″)

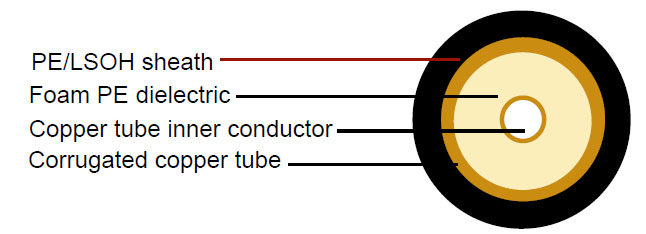

Construction :

  • Inner conductor Copper tube Φ9.0 mm
    Dielectric Foam PE Φ22.3 mm
    Outer conductor Corrugated copper tube Φ24.9 mm
    Sheath PE/LSOH Φ27.5 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 75 pF/m
    Velocity of propagation 89%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 1.05 Ohm/Km
    Outer conductor resistance 1.18 Ohm/Km
    Installation temperature range -40°C - +60 °C
    Operating temperature range -55°C - +85°C
    Test voltage 6 KV
    Cable weight (approx.) 490 kg/km
    Operating Frequency Band 1 – 5000 MHz
    Screening effectiveness >120dB

Attenuation :

  • Frequency
    (MHz)
    Attenuation
    (dB/100m)
    Attenuation
    (dB/100ft)
    Frequency
    (MHz)
    Attenuation
    (dB/100m)
    Attenuation
    (dB/100ft)
    10 0.37 0.11 1700 5.57 1.70
    100 1.19 0.36 1800 5.75 1.75
    150 1.48 0.45 2000 6.11 1.86
    200 1.72 0.52 2100 6.29 1.92
    300 2.13 0.65 2200 6.46 1.97
    450 2.65 0.81 2300 6.63 2.02
    500 2.81 0.86 2500 6.97 2.12
    700 3.38 1.03 2700 7.29 2.22
    800 3.63 1.11 3000 7.76 2.37
    900 3.87 1.18 3400 8.37 2.55
    1000 4.12 1.26 4000 9.24 2.82
    1500 5.18 1.58 5000 10.59 3.23

Return Loss :

  • 806-960 MHz 24.3dB
    1700-2000 MHz 24.3dB
>
