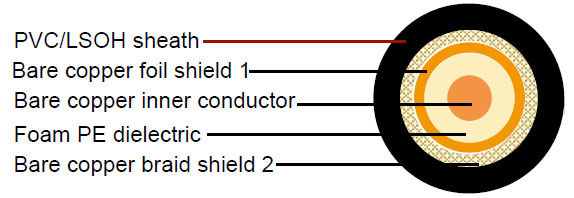

Construction :

• Inner conductor	Bare copper	Φ1.00 mm
  Dielectric	Foam PE	Φ4.60 mm
  Outer conductor (shield 1)	Copper Foil	Φ4.75 mm
  Shield coverage 1		Φ100%
  Outer conductor (shield 2)	Bare copper braid	96x0.10 mm
  Shield coverage 2		55%
  Sheath	PVC/LSOH	Φ6.55 mm

•

Electrical & Mechanical Characteristics :

• Impedance	75±5 Ohm
  Nominal capacitance	50 pF/m
  Velocity of propagation	85%
  Insulation resistance	>5000 Mohm.Km
  Inner conductor resistance	21.4 Ohm/Km
  Outer conductor resistance	- Ohm/Km
  Rated temperature	70°C
  Operating voltage	30 V
  Cable weight (approx.)	57 kg/km
  Screening effectiveness	>75 dB (30-1000MHz) >65 dB (1000-2150MHz)

Attenuation :

• Frequency(MHz)	Attenuation (dB/100 m)	Attenuation (dB/100 ft)
  50	4.6	1.40
  100	6.5	1.98
  200	9.5	2.90
  460	15.0	4.57
  860	19.5	5.95
  1000	21.5	6.55
  1750	29.0	8.84
  2150	32.5	9.91

Return Loss :

• 5-470 MHz	>23dB
  470-860 MHz	>20dB
  860-2150 MHz	>18dB
