RF 175 AF

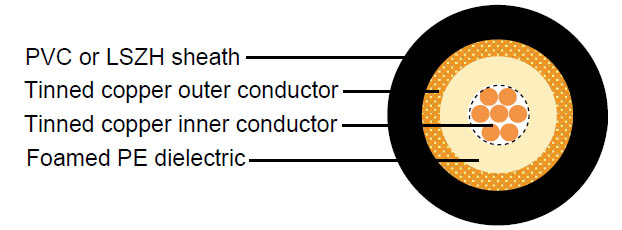

Construction :

  • Inner conductor Tinned copper 7 x 0.13 mm
    Dielectric Foam PE Φ1.70 ± 0.10 mm
    Outer conductor Tinned copper 80 x 0.10 mm
    Shield coverage   92%
    Sheath PVC or LSZH Φ2.60 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 56 pF/m
    Velocity of propagation 66%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 20.5 Ohm/Km
    Outer conductor resistance 30.0 Ohm/Km
    Operating temperature range -25 °C - +80 °C
    Copper weight 6.9 Kg/Km
    Cable weight (approx.) 11.3 Kg/Km
    Screening effectiveness >50 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 11.7 3.57
    100 15.8 4.82
    200 24.6 7.50
    400 36.5 11.13
    500 41.3 12.59
    600 44.7 13.63
    860 53.8 16.40
    1000 57.7 17.59

Return Loss :

  • 30-300 MHz >20dB
    300-600 MHz >18dB
    600-900 MHz >16dB
>
