RF 50 LTA

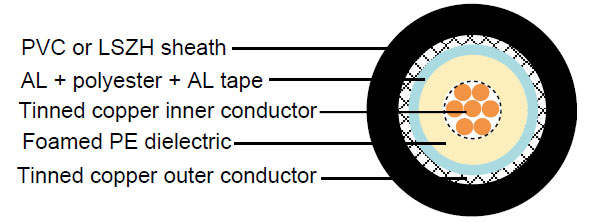

Construction :

  • Inner conductor Tinned copper 7 x 0.25 mm
    Dielectric Foam PE Φ2.00 ± 0.10 mm
    Outer conductor (shield 1) Aluminium + polyester + Aluminium tape
    Shield coverage   100%
    Outer conductor (shield 2) Tinned copper 48 x 0.12 mm
    Shield coverage   64%
    Sheath PVC or LSZH Φ3.60 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 95 pF/m
    Velocity of propagation 75%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 20.5 Ohm/Km
    Outer conductor resistance 32.5 Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Copper weight 8.2 Kg/Km
    Cable weight (approx.) 18.3 Kg/Km
    Screening effectiveness >75 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 13.0 3.96
    100 17.3 5.27
    400 35.0 10.67
    600 43.3 13.20
    860 52.7 16.07
    1000 57.2 17.44
    1750 76.7 23.38
    2400 94.0 28.66

Return Loss :

  • 30-300 MHz >24dB
    300-600 MHz >21dB
    600-900 MHz >15dB
>
