RF 58 LTA

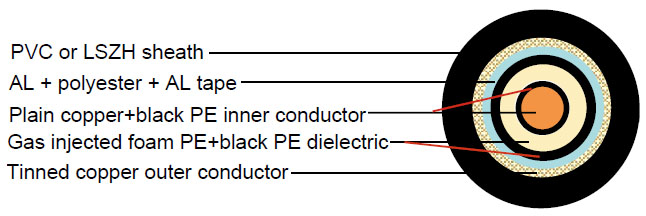

Construction :

  • Inner conductor Plain copper + black PE 1.00 mm
    Dielectric Gas injected foam PE + Carbon black PE Φ2.95 ± 0.10 mm
    Outer conductor (shield 1) Aluminium + polyester + Aluminium tape
    Shield coverage   100%
    Outer conductor (shield 2) Tinned copper 64 x 0.15 mm
    Shield coverage   73%
    Sheath PVC or LSZH Φ5.00 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 80 pF/m
    Velocity of propagation 80%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 22.5 Ohm/Km
    Outer conductor resistance 20.5 Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Copper weight 17.8 Kg/Km
    Cable weight (approx.) 35.4 Kg/Km
    Screening effectiveness >80 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 7.3 2.23
    100 9.8 2.99
    400 19.7 6.01
    600 24.9 7.59
    860 30.1 9.18
    1000 32.7 9.97
    1750 45.8 13.96
    2400 55.8 17.01

Return Loss :

  • 30-300 MHz >30dB
    300-600 MHz >26dB
    600-900 MHz >20dB
>
