RF 8 LAP

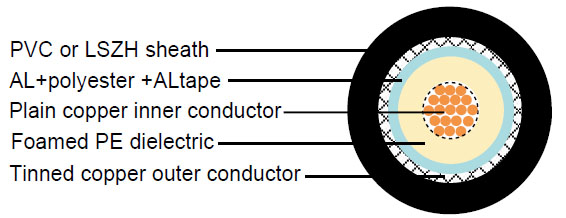

Construction :

  • Inner conductor Plain copper 19 x 0.28 mm
    Dielectric Foam PE Φ3.90 ± 0.15 mm
    Outer conductor (shield 1) Aluminium + polyester tape
    Shield coverage   100%
    Outer conductor (shield 2) Tinned copper 128 x 0.10 mm
    Shield coverage   80%
    Sheath PVC or LSZH Φ6.10 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 80 pF/m
    Velocity of propagation 80%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 15.5 Ohm/Km
    Outer conductor resistance 19 Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Copper weight 20.8 Kg/Km
    Cable weight (approx.) 48.1 Kg/Km
    Screening effectiveness >80 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 7.3 2.23
    100 9.8 2.99
    400 19.7 6.01
    600 24.9 7.59
    860 30.1 9.18
    1000 32.9 10.03
    1750 45.8 13.96
    2400 55.8 17.01

Return Loss :

  • 30-300 MHz >26dB
    300-600 MHz >25dB
    600-900 MHz >23dB
>
