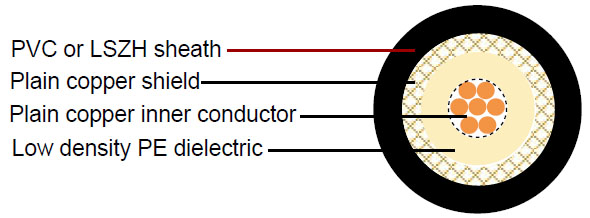

Construction :

• Inner conductor	Plain copper	7 x 0.16 mm
  Dielectric	Low density PE	Φ1.50 ± 0.08 mm
  Outer conductor (shield)	Plain copper	64 x 0.10 mm
  Shield coverage		88%
  Sheath	PVC or LSZH	Φ2.80 ± 0.13 mm

•

Electrical & Mechanical Characteristics :

• Impedance	50±3 Ohm
  Nominal capacitance	100 pF/m
  Velocity of propagation	66%
  Insulation resistance	>2000 Mohm.Km
  Inner conductor resistance	122 Ohm/Km
  Outer conductor resistance	39 Ohm/Km
  Operating temperature range	-30 °C - +70 °C
  Copper weight	6.1 Kg/Km
  Cable weight (approx.)	12.7 Kg/Km
  Screening effectiveness	>50 dB

Attenuation :

• Frequency(MHz)	Attenuation (dB/100 m)	Attenuation (dB/100 ft)
  50	17.7	5.40
  100	26.0	7.93
  200	38.5	11.74
  400	55.3	16.86
  500	63.6	19.39
  600	69.2	21.10
  860	81.9	24.97
  1000	88.3	26.92

Return Loss :

• 30-300 MHz	>26dB
  300-600 MHz	>23dB
  600-900 MHz	>20dB
