RG 175 AF

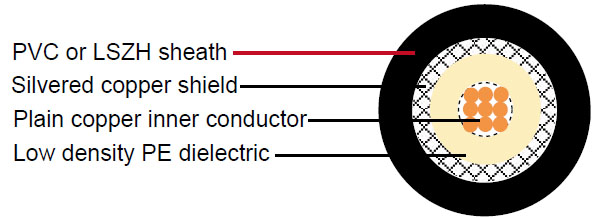

Construction :

  • Inner conductor Plain copper 9 x 0.10 mm
    Dielectric Foam PE Φ1.50 ± 0.08 mm
    Outer conductor (shield) Silver plated copper 72 x 0.10 mm
    Shield coverage   90%
    Sheath PVC or LSZH Φ2.80 ± 0.13 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 67 pF/m
    Velocity of propagation 66%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 250 Ohm/Km
    Outer conductor resistance 35 Ohm/Km
    Operating temperature range -25 °C - +80 °C
    Copper weight 5.85 Kg/Km
    Cable weight (approx.) 12.95 Kg/Km
    Screening effectiveness >50 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 19.2 5.85
    100 27.9 8.51
    200 40.7 12.41
    400 59.2 18.05
    500 67.5 20.58
    600 72.6 22.13
    860 91.1 27.77
    1000 101.0 30.79

Return Loss :

  • 30-300 MHz >20dB
    300-600 MHz >20dB
    600-900 MHz >20dB
>
