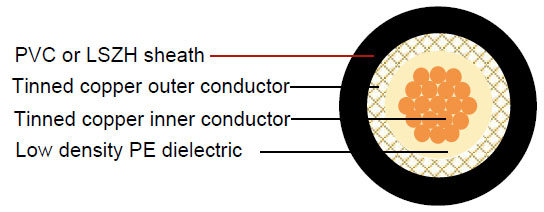

Construction :

• Inner conductor	Tinned copper	19 x 0.18 mm
  Dielectric	Low density PE	Φ2.95 ± 0.10 mm
  Outer conductor (shield)	Tinned copper	112 x 0.13 mm
  Shield coverage		95%
  Sheath	PVC or LSZH	Φ5.00 ± 0.10 mm

•

Electrical & Mechanical Characteristics :

• Impedance	50±3 Ohm
  Nominal capacitance	100 pF/m
  Velocity of propagation	66%
  Insulation resistance	>2000 Mohm.Km
  Inner conductor resistance	37.5 Ohm/Km
  Outer conductor resistance	16.5 Ohm/Km
  Test/Operatig Voltage(max)	5 KV/2.5 KV
  Operating temperature range	-30 °C - +70 °C
  Copper Weight	18.7 Kg/Km
  Cable weight (approx.)	39.9 Kg/Km
  Screening effectiveness	100-900 MHz	>55dB

Attenuation :

• Frequency(MHz)	Attenuation (dB/100 m)	Attenuation (dB/100ft)
  50	10.8	3.29
  100	16.0	4.88
  200	24.0	7.32
  400	37.7	11.49
  500	41.3	12.59
  600	49.7	15.15
  860	64.2	19.57
  1000	70.0	21.34

Return Loss :

• 30-300 MHz	>27dB
  300-600 MHz	>23dB
  600-900 MHz	>22dB
