RG 59 FX

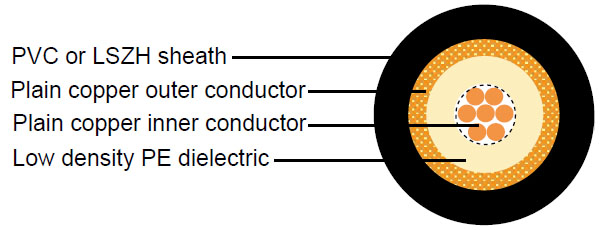

Construction :

  • Inner conductor Plain copper 7 x 0.20 mm
    Dielectric Low density PE Φ3.70 ± 0.10 mm
    Outer conductor Plain copper 160 x 0.10 mm
    Shield coverage   92%
    Sheath PVC or LSZH Φ6.20 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 67 pF/m
    Velocity of propagation 66%
    Insulation resistance >2000 Mohm.Km
    Inner conductor resistance 82 Ohm/Km
    Outer conductor resistance 15 Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Copper weight 14.0 Kg/Km
    Cable weight (approx.) 49.4 Kg/Km
    Screening effectiveness >55 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 7.9 2.41
    100 11.5 3.51
    200 16.8 5.12
    400 24.1 7.35
    500 27.3 8.32
    600 30.4 9.27
    860 36.8 11.22
    1000 40.1 12.23

Return Loss :

  • 30-300 MHz >30dB
    300-600 MHz >25dB
    600-900 MHz >22dB
>
