Twin RG 6

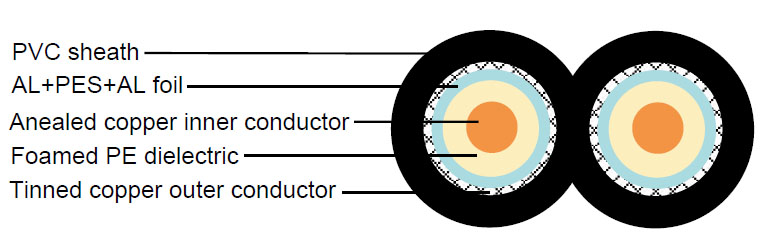

Construction :

  • Inner conductor Anealed copper Φ1.02 mm
    Dielectric Foam PE Φ4.57 mm
    Outer conductor (shield 1) Al-PES-Al foil
    Shield coverage   100%
    Outer conductor (shield 2) Tinned copper
    Shield coverage   60%
    Sheath PVC Φ6.8 - 13.9mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 57 pF/m
    Velocity of propagation 78%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 11.5 Ohm/Km
    Outer conductor resistance 5.5 Ohm/Km
    Operating temperature range -40 °C - +70 °C
    Cable weight (approx.) 100 Kg/Km

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100 ft)
    200 9.9 3.02
    500 15.2 4.63
    860 20.7 6.31
    1000 22.5 6.86
    1500 27.0 8.23
    2000 30.8 9.39
    2400 34.1 10.40
    3000 39.0 11.89
>
