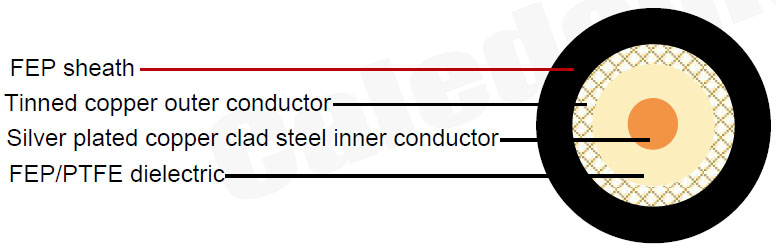

Construction :

• Inner conductor	Silver plated copper clad steel	0.17 mm
  Dielectric	FEP/PTFE	Φ0.52 mm
  Outer conductor	Tinned copper braid	Φ0.72 mm
  Sheath	FEP	Φ1.17 mm

•

Electrical & Mechanical Characteristics :

• Impedance	50±5 Ohm
  Nominal capacitance	94.6 pF/m
  Velocity of propagation	70%
  Insulation resistance	- Mohm.Km
  Inner conductor resistance	- Ohm/Km
  Outer conductor resistance	- Ohm/Km
  Operating temperature range	-55°C - +200 °C
  Cable weight (approx.)	3kg/km

Attenuation :

• Frequency (MHz)	Attenuation (dB/100 m)	Max. Attenuation(dB/100ft)
  10	22	6.7
  100	54	16.5
  400	115	35.1
  1000	220	67.1
  2000	320	97.6
  3000	450	137.2
