75VMTX

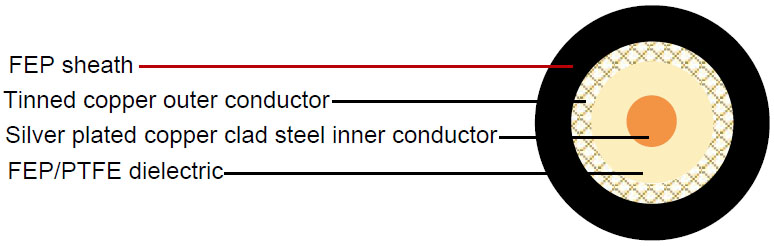

Construction :

  • Inner conductor Silver plated copper clad steel 0.10 mm
    Dielectric FEP/PTFE Φ0.57 mm
    Outer conductor Tinned copper braid Φ0.77 mm
    Sheath FEP Φ1.22 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 72.6 pF/m
    Velocity of propagation 70%
    Insulation resistance - Mohm.Km
    Inner conductor resistance - Ohm/Km
    Outer conductor resistance - Ohm/Km
    Operating temperature range -55°C - +200 °C
    Cable weight (approx.) 3kg/km

Attenuation :

  • Frequency (MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
    10 36 11.0
    100 70 21.3
    400 135 41.2
    1000 220 67.1
    2000 320 97.6
    3000 390 118.9
>
