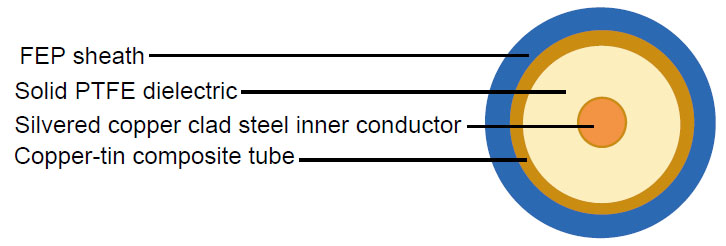

Construction :

• Inner conductor	Silver plated copper	Φ1.67 mm
  Dielectric	Solid PTFE	Φ5.31 ± 0.10 mm
  Outer conductor	Tinned copper	Φ6.30 ± 0.10 mm
  Shield coverage		100%
  Sheath	FEP	Φ6.80 mm

•

Electrical & Mechanical Characteristics :

• Impedance	50±3 Ohm
  Nominal capacitance	95 pF/m
  Velocity of propagation	-
  Insulation resistance	- Mohm.Km
  Inner conductor resistance	- Ohm/Km
  Outer conductor resistance	- Ohm/Km
  Max.operating voltage	3.5KV
  Operating temperature range	-65°C - +165 °C
  Min.bending radius	30 mm

Attenuation :

• Frequency(GHz)	Max. Attenuation(dB/100m)	Max. Attenuation(dB/100ft)
  0.5	16	4.9
  1	24	7.3
  5	62	18.9
  10	97	29.6
  20	145	44.2
