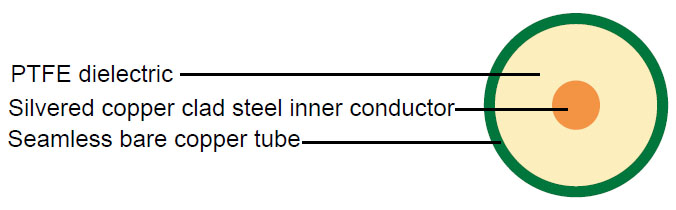

Construction :

• Inner conductor	Silver plated copper clad steel	Φ0.28 mm
  Dielectric	PTFE	Φ0.92 ± 0.1 mm
  Outer conductor	type1: Seamless bare copper tube	Φ1.20 ± 0.1 mm
  	type2: Seamless copper tube, tin plated(TP)
  	type3: Seamless copper tube, Silver plated(SP)

•

Electrical & Mechanical Characteristics :

• Impedance	50±3 Ohm
  Nominal capacitance	95 pF/m
  Velocity of propagation	-
  Insulation resistance	-
  Inner conductor resistance	- Ohm/Km
  Outer conductor resistance	- Ohm/Km
  Operating temperature range	-55°C - +125 °C
  Outer conductor integrity temperature	175°C
  Min.bending radius	4.2 mm

Attenuation :

• Frequency(MHz)	Max. Attenuation(dB/100m)	Max. Attenuation(dB/100ft)
  500	79	24.1
  1000	113	34.4
  5000	259	78.9
  10000	374	114.0
  20000	544	165.8
