SR086-25

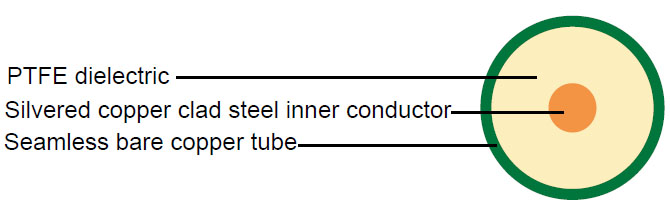

Construction :

  • Inner conductor Silver plated copper clad steel Φ0.92 mm
    Dielectric PTFE Φ1.68 ± 0.1 mm
    Outer conductor type1: Seamless bare copper tube Φ2.20 ± 0.1 mm
    type2: Seamless copper tube, tin plated(TP)
    type3: Seamless copper tube, Silver plated(SP)
  •

Electrical & Mechanical Characteristics :

  • Impedance Nom.25 Ohm
    Nominal capacitance 189.6 pF/m
    Velocity of propagation -
    Insulation resistance - Mohm.Km
    Inner conductor resistance - Ohm/Km
    Outer conductor resistance - Ohm/Km
    Operating temperature range -55°C - +125 °C
    Outer conductor integrity temperature 175°C
    Min.bending radius 7.63 mm

Attenuation :

  • Frequency(MHz) Max. Attenuation(dB/100m) Max. Attenuation(dB/100ft)
    500 59 18.0
    1000 84 25.6
    5000 197 60.0
    10000 287 87.5
    20000 423 128.9
>
