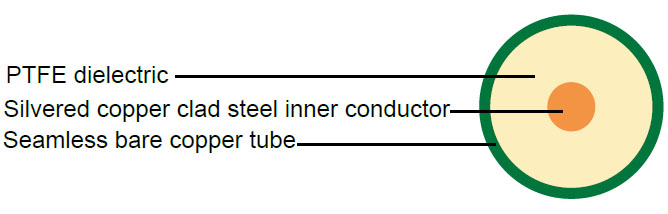

Construction :

• Inner conductor	Silver plated copper clad steel	Φ0.94 mm
  Dielectric	PTFE	Φ5.44 ± 0.1 mm
  Outer conductor	type1: Seamless bare copper tube	Φ6.35 ± 0.1 mm
  	type2: Seamless copper tube, tin plated(TP)
  	type3: Seamless copper tube, Silver plated(SP)

•

Electrical & Mechanical Characteristics :

• Impedance	75±5 Ohm
  Nominal capacitance	63.5 pF/m
  Velocity of propagation	-
  Insulation resistance	- Mohm.Km
  Inner conductor resistance	- Ohm/Km
  Outer conductor resistance	- Ohm/Km
  Operating temperature range	-55°C - +125 °C
  Outer conductor integrity temperature	175°C
  Min.bending radius	22.3 mm

Attenuation :

• Frequency(MHz)	Max. Attenuation(dB/100m)	Max. Attenuation(dB/100ft)
  500	4	1.2
  1000	24	7.3
  5000	60	18.3
  10000	93	28.3
  20000	147	44.8
