17 VATC

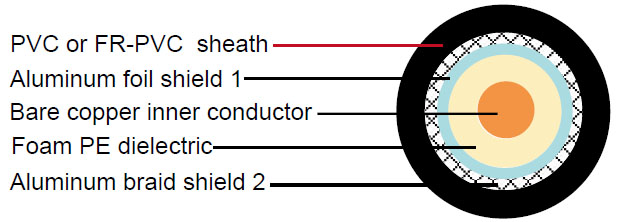

Construction :

  • Inner conductor Bare copper/Copper clad steel(CCS) Φ1.13 mm
    Dielectric Foam PE Φ4.80 mm
    Outer conductor (shield 1) Aluminum Foil Φ4.95 mm
    Shield coverage 1   100%
    Outer conductor (shield 2) Aluminum wire braid (Type 1) 64x0.12 mm
    Shield coverage 2   45%
    Outer conductor (shield 2) Aluminum wire braid (Type 2) 48x0.12 mm
    Shield coverage 2   35%
    Sheath PVC/FR-PVC Φ6.80 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 50 pF/m
    Velocity of propagation 85%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 16.8 Ohm/Km
    Outer conductor resistance - Ohm/Km
    Operating temperature range -25°C - 75°C
    Cable weight (approx.) - kg/km
    Screening effectiveness >70 dB (5-1000MHz)

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100 ft)
    50 3.7 1.13
    100 5.5 1.68
    200 8.1 2.47
    400 11.7 3.57
    800 17.0 5.18
    950 18.7 5.70
    1350 22.8 6.95
    1750 26.4 8.05
    2150 29.8 9.09
    3000 36.2 11.04

Return Loss :

  • 5-470 MHz >25dB
    470-3000 MHz >20dB
>
