KX 8

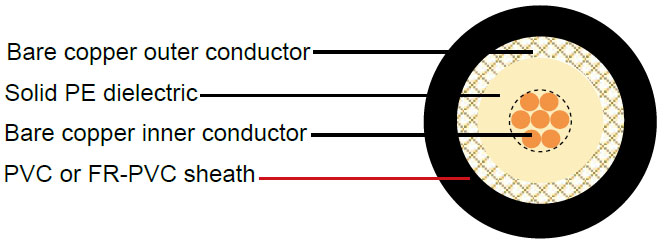

Construction :

  • Inner conductor Bare copper 7 x 0.4 mm
    Dielectric Solid PE Φ7.25 mm
    Outer conductor shield Bare copper /Copper clad Aluminum(CCA) 192 x 0.10 mm
    Shield coverage   80%
    Sheath PVC/FR-PVC Φ10.20 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 67 pF/m
    Velocity of propagation 66%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 22.2 Ohm/Km
    Outer conductor resistance 15.5 / 16.5 Ohm/Km
    Operating temperature range -25°C - 75°C
    Screening effectiveness 65dB(100-3000MHz)
    Cable weight (approx.) - kg/km

Attenuation :

  • For bare copper braid For CCA braid
    Frequency
    (MHz)
    Attenuation
    (dB/100 m)
    Attenuation
    (dB/100 ft)
    Frequency
    (MHz)
    Attenuation
    (dB/100 m)
    Attenuation
    (dB/100 ft)
    10 2.9 0.88 10 2.9 0.88
    50 4.5 1.37 50 4.5 1.37
    100 6.6 2.01 100 6.6 2.01
    200 10.9 3.32 200 11.9 3.63
    400 13.8 4.21 400 14.8 4.51
    850 23.6 7.20 850 24.6 7.50
    950 26.8 8.17 950 27.8 8.48
    1000 27.5 8.38 1000 28.5 8.69

Return Loss :

  • 5-470 MHz >25dB
    470-3000 MHz >20dB
>
