CTX 65 FLEX



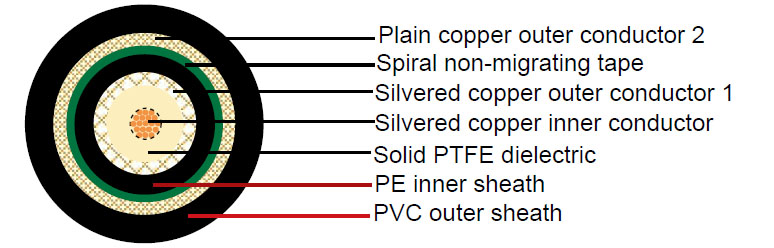

Construction :

  • Inner conductor Silver plated copper 19 x 0,28 mm
    Dielectric Foam PE Φ6,50 ± 0,10 mm
    Outer conductor (shield 1) Silver plated copper 216x 0,13 mm
    Shield coverage   92%
    Inner sheath PE Φ8,70 ± 0,10 mm
    Tape Spiral non-migrating tape h. 27 mm
    Outer conductor (shield 2) Plain copper 216 x 0,16 mm
    Shield coverage   92%
    Outer sheath PVC/LSOH Φ11.00 ± 0,18 mm
  •
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 56 pF/m
    Velocity of propagation 80%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 15.5 Ohm/Km
    Outer conductor resistance1 6.5 Ohm/Km
    Outer conductor resistance2 5.8 Ohm/Km
    Operating temperature range -25°C - +80 °C
    Copper weight 85.2 Kg/Km
    Cable weight (approx.) 165.95 Kg/Km
    Screening effectiveness >70 dB

Attenuation :

  • Frequency (MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
    50 4.4 1.3
    100 6.2 1.9
    200 9.1 2.8
    400 13.3 4.1
    500 15.2 4.6
    600 17.1 5.2
    860 20.6 6.3
    1000 22.4 6.8

Return Loss :

  • 30-300 MHz >28dB
    300-600 MHz >25dB
    600-900 MHz >23dB
>
