FRA 213D SW4

These cables are designed for flexible installations, inside and outside railway rolling stock.

DIN 5510-2

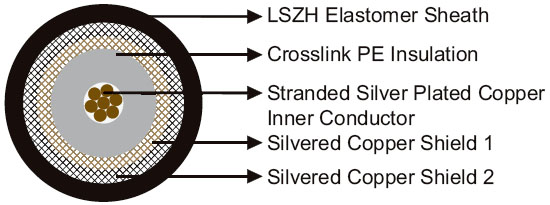

Inner conductor	Stranded silver plated copper
Insulation	Crosslink PE (PEX)
Outer conductor (shield 1)	Silver plated copper
Outer conductor (shield 2)	Silver plated copper
Sheath	LSZH Elastomer

Impedance	Ω	50+/-2
Nominal Capacitance	pF/m	101
Minimum Insulation Resistance	MΩ.km	100000
Inner Conductor Resistance	MΩ/km	5.8
Outer Conductor Resistance	MΩ/km	4.43
Attenuation
@10MHz	dB/100m	2
@50MHz	dB/100m	5
@100MHz	dB/100m	8
@150MHz	dB/100m	10
@200MHz	dB/100m	12
@300MHz	dB/100m	15
@400MHz	dB/100m	17
@450MHz	dB/100m	19
@500MHz	dB/100m	20
@600MHz	dB/100m	22
@800MHz	dB/100m	27
@850MHz	dB/100m	28
@900MHz	dB/100m	29
@950MHz	dB/100m	30
@1000MHz	dB/100m	31
@1800MHz	dB/100m	45
@1900MHz	dB/100m	47
@2000MHz	dB/100m	49
@2400MHz	dB/100m	55
@3000MHz	dB/100m	64
@4000MHz	dB/100m	79
@5000MHz	dB/100m	93
@6000MHz	dB/100m	106
Velocity of propagation	%	66

Minimum Bending Radius	50mm (static)
Temperature Range	-40℃～ +105℃

Conductor Construction	Nominal Inner Conductor Diameter	Nominal Outer Conductor Diameter	Nominal Overall Diameter	Nominal Weight
No/mm	mm	mm	mm	kg/km
7/0.75	2.25	8.7	10.8	202
