FRA 3002 SW4

Applications

These cables are designed for flexible installations, inside and outside railway rolling stock.

Standards

DIN 5510-2

Construction

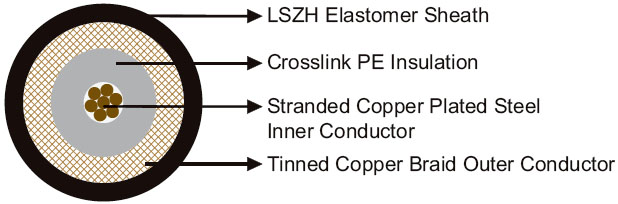

FRA 3002 SW4 FRA 3002 SW4
Inner conductor Stranded copper plated steel
Insulation Crosslink PE (PEX)
Outer conductor Tinned copper braid
Sheath LSZH Elastomer

Electrical Characteristics at 20℃

Impedance Ω 75+/-3
Nominal Capacitance pF/m 67
Minimum Insulation Resistance MΩ.km 100000
Inner Conductor Resistance MΩ/km 236
Attenuation
@10MHz dB/100m 6
@50MHz dB/100m 14
@100MHz dB/100m 20
@150MHz dB/100m 25
@200MHz dB/100m 29
@300MHz dB/100m 36
@400MHz dB/100m 42
@450MHz dB/100m 45
@500MHz dB/100m 47
@600MHz dB/100m 52
@800MHz dB/100m 62
@850MHz dB/100m 64
@900MHz dB/100m 66
@950MHz dB/100m 68
@1000MHz dB/100m 70
Velocity of propagation % 66

Mechanical and Thermal Properties

Minimum Bending Radius 25mm (static)
Temperature Range -40℃~ +105℃

Dimensions and Weight

Conductor Construction Nominal Inner Conductor Diameter Nominal Outer Conductor Diameter Nominal Overall Diameter Nominal Weight
No/mm mm mm mm kg/km
7/0.14 0.42 2.9 3.7 21
