1x RG11 + 3x2.5 Power Cable + 3x1x2x22AWG Data Pairs Unarmoured PVC Sheathed Composite Cable

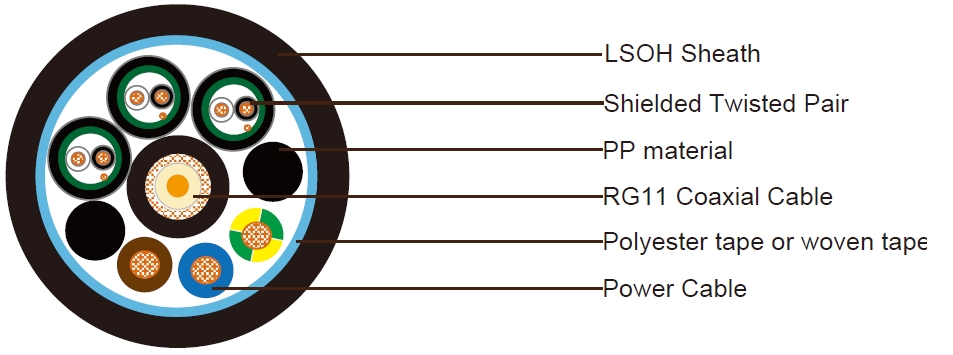

Construction:

comosite cable

1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)

Conductor 1.63mm Solid bare copper
Insulation Polyethylene.Thickness 7.25mm.
Shield Braid of bare copper wire.Coverage95%
Sheath LSZH sheath. Nominal outer diameteris10.3mm.
Sheath Color Black

3x1x2x22AWG Shielded Twisted Pair ( around coaxial cable)

Conductor 7/0.254mm Stranded tinned copper.
Insulation PVC material.Thickness 0.50mm.
Insulation Color White andblack
Individual Shield Aluminum polyester tape
Drain Wire 24AWG
Sheath PVC sheath.Nominal outer diameter 4.8mm.Thickness0.76mm.
Sheath Color Black with white number code

3x2.5mm² Power Cable ( around coaxial cable)

Conductor 2.5mm² Stranded tinned copper wire.
Insulation XLPE.Outer diameter3.41mm
Insulation Color Blue,Brown and Green/Yellow

Element Assembly

Filler PP material(around coaxial cable)
WrappingTape Polyester tape or woven tape
Outer Sheath PVC,thickness1.6mm,nominal outer diameter 25.0mm
Sheath Color Black
Cable weight 480kg/km

Electrical and Physical Properties@20°C:

Coaxial Cable

  • Impedance: 75±3Ohm (@1MHz)
  • Max.Attenuation:3.3dB/100m @50MHz

Power Cable

  • Electrical Resistance: 7.41Ohm/km
  • Insulation Resistance: ≥5500 MOhmxkm

Data Pairs

  • Electrical Resistance: 49Ohm/km
  • Insulation Resistance: ≥1000 MOhmxkm
